Toro LX Lawn Tractor - Removal; Tower Replacement

CHASSIS
3-45LX Lawn Tractor Service Manual
3

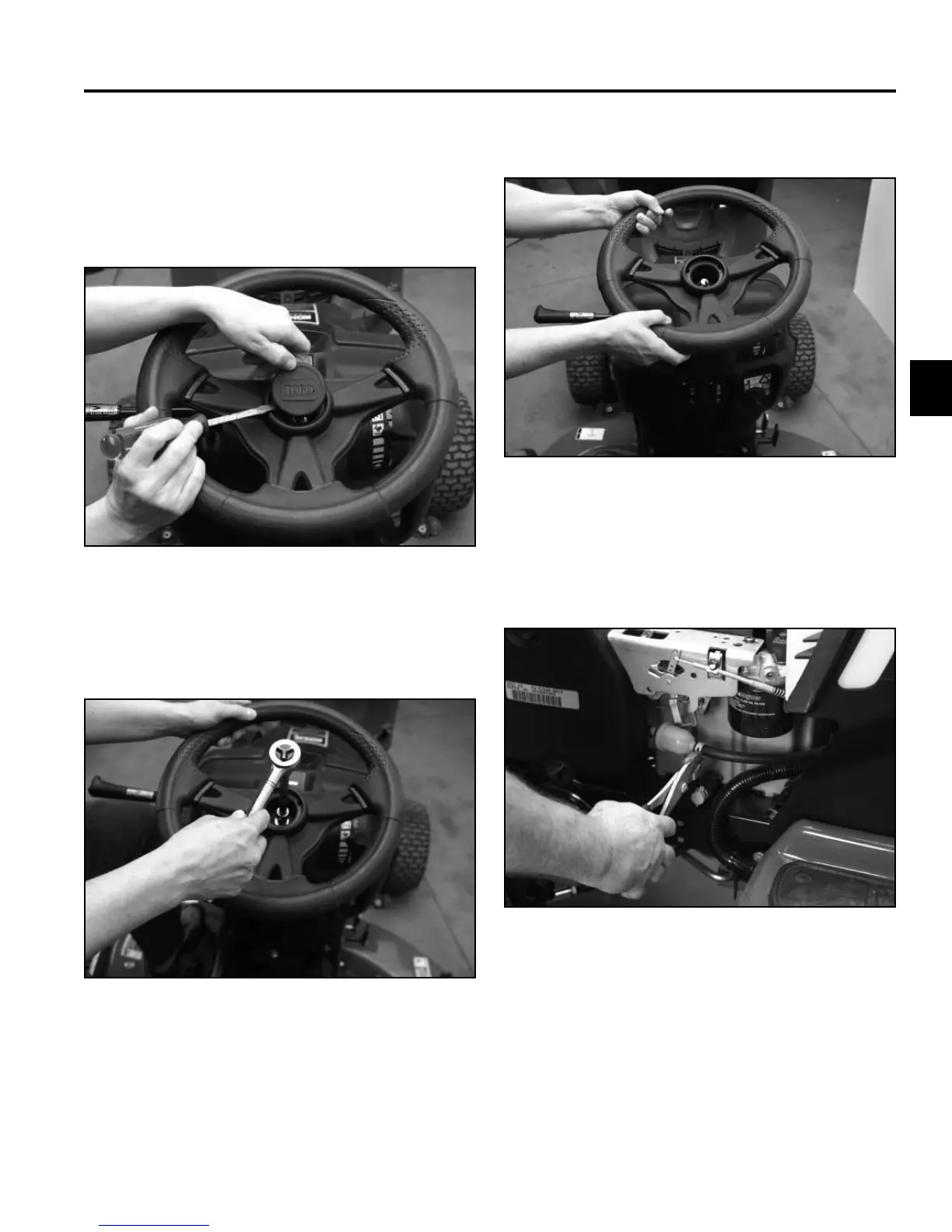

Fig 176 PICT-7142
2. Remove the bolt and washer securing the steering
wheel to the steering shaft (Fig. 176).
Fig 175 PICT-7141
1. Remove the steering wheel cap (Fig. 175).
Tower Replacement
Removal
Fig 178 PICT-7094
4. Disconnect the fuel line from the fuel fi lter and drain
all the fuel from the fuel tank into an approved con-
tainer (Fig. 178).
Fig 177 PICT-7143
3. Remove the steering wheel (Fig. 177).
