46” Mower Deck - Upper Mower Deck
Belt Replacement
Installation

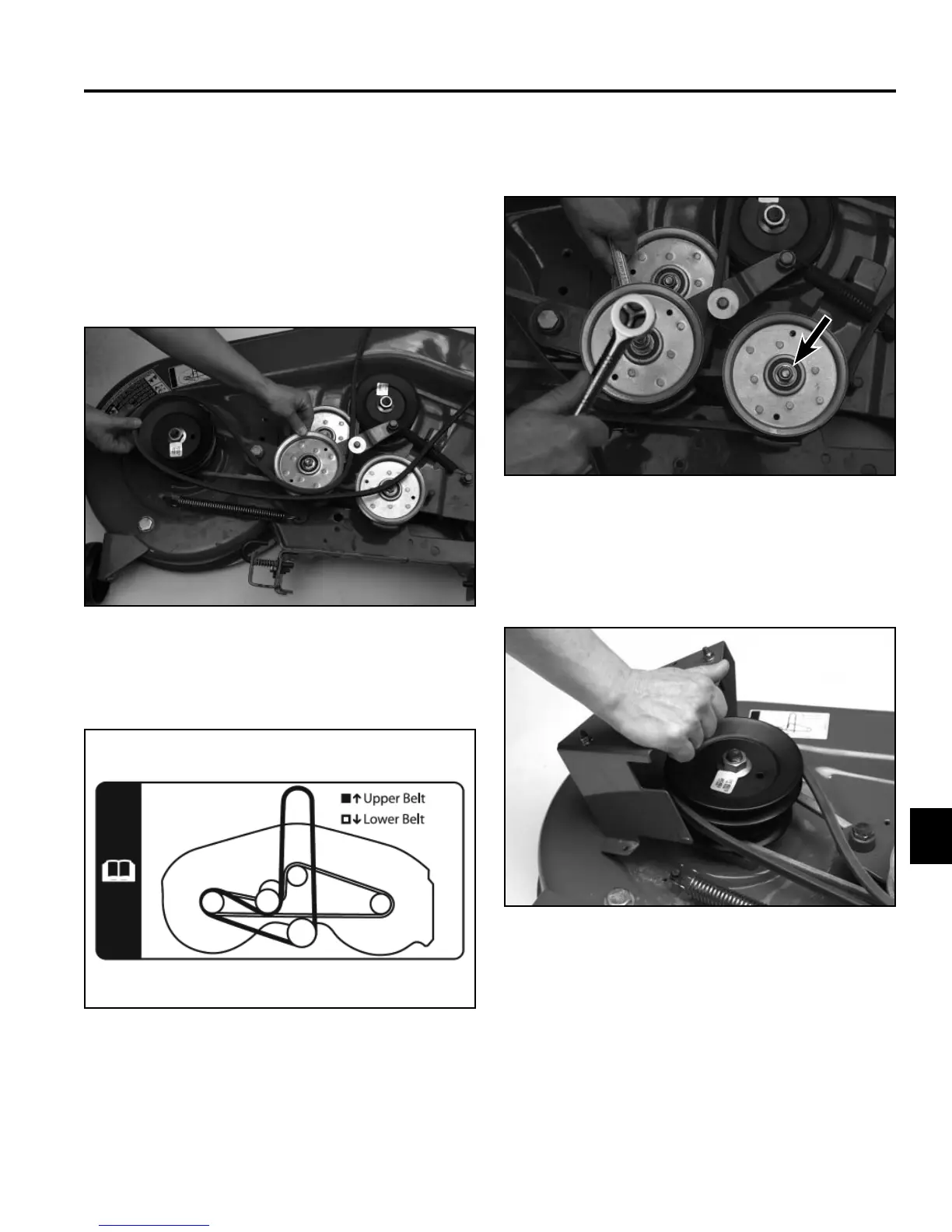

1. Tilt both idler pulleys and route the upper mower
deck belt around the pulleys. Refer to the deck
routing decal located on the mower deck (Fig. 676).
3. Position the left mower deck belt cover onto the
mower deck (Fig. 679).
Fig 676 PICT-7842
Fig 679 PICT-7839
2. Tighten the nuts on the 2 upper idler pulley bolts
(Fig. 678).
Fig 678 PICT-7840a
Mower deck belt routing decal (Fig. 677):
Fig 677 fi g. LX460 112-1269
