CHASSIS
3-75LX Lawn Tractor Service Manual
3

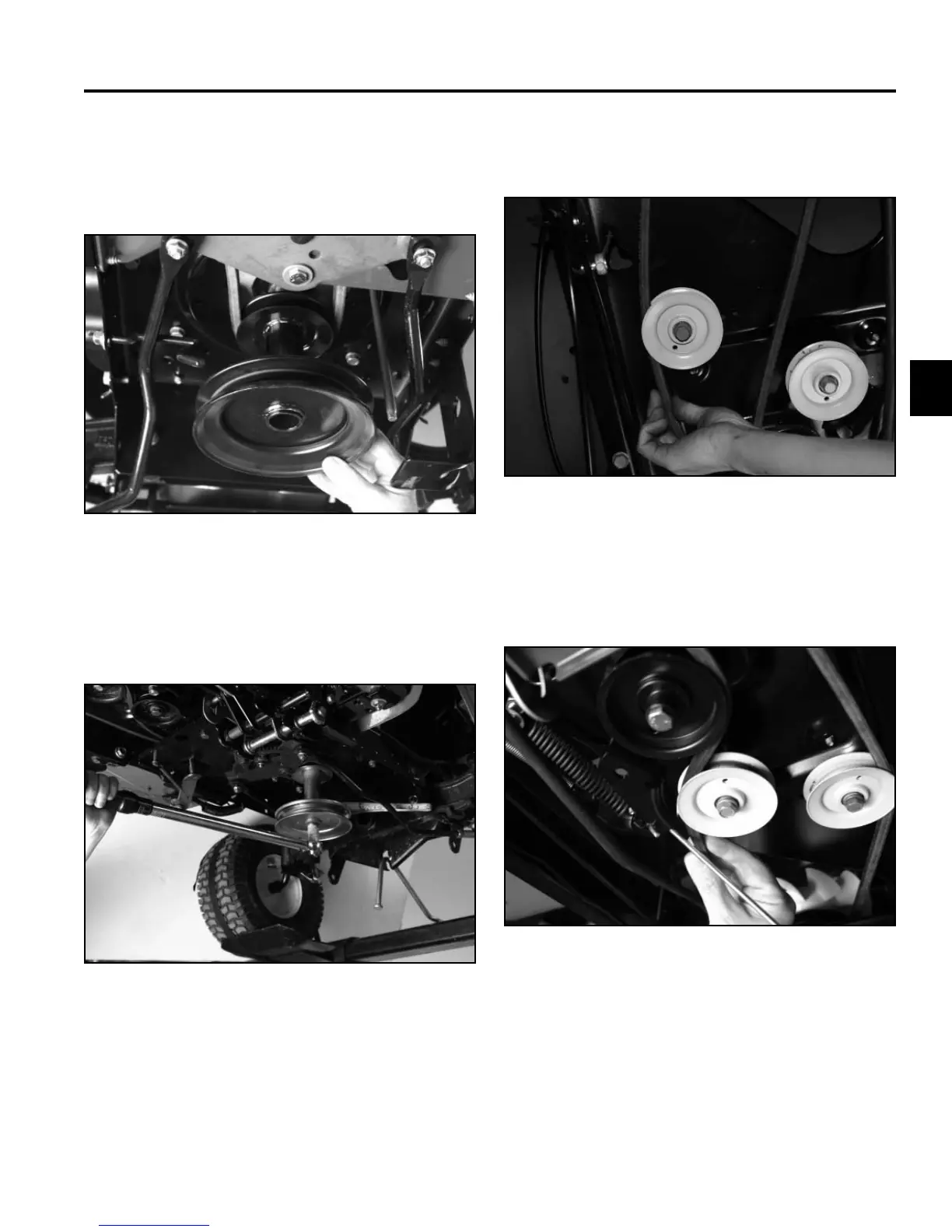

Fig 295 PICT-7595
8. Remove tension from the center double idler bracket
and install the transmission drive belt around the
idlers (Fig. 295).
Fig 294 PICT-7594
7. Route the transmission drive belt around the fi xed
V-idler pulley (Fig. 294).
Fig 293 PICT-7328
6. Install a bolt and washer to secure the engine pulley
to the crankshaft and torque to 37.5 to 50 ft-lbs.
(50.84 to 67.79 Nm) (Fig. 293).
Fig 292 PICT-7590
5. Align the key of the engine pulley with the keyway
on the crankshaft. Slide the engine pulley onto the
crankshaft and install the transmission belt onto the
pulley (Fig. 292).
