Toro LX Lawn Tractor - Page 90

CHASSIS
3-76 LX Lawn Tractor Service Manual
3

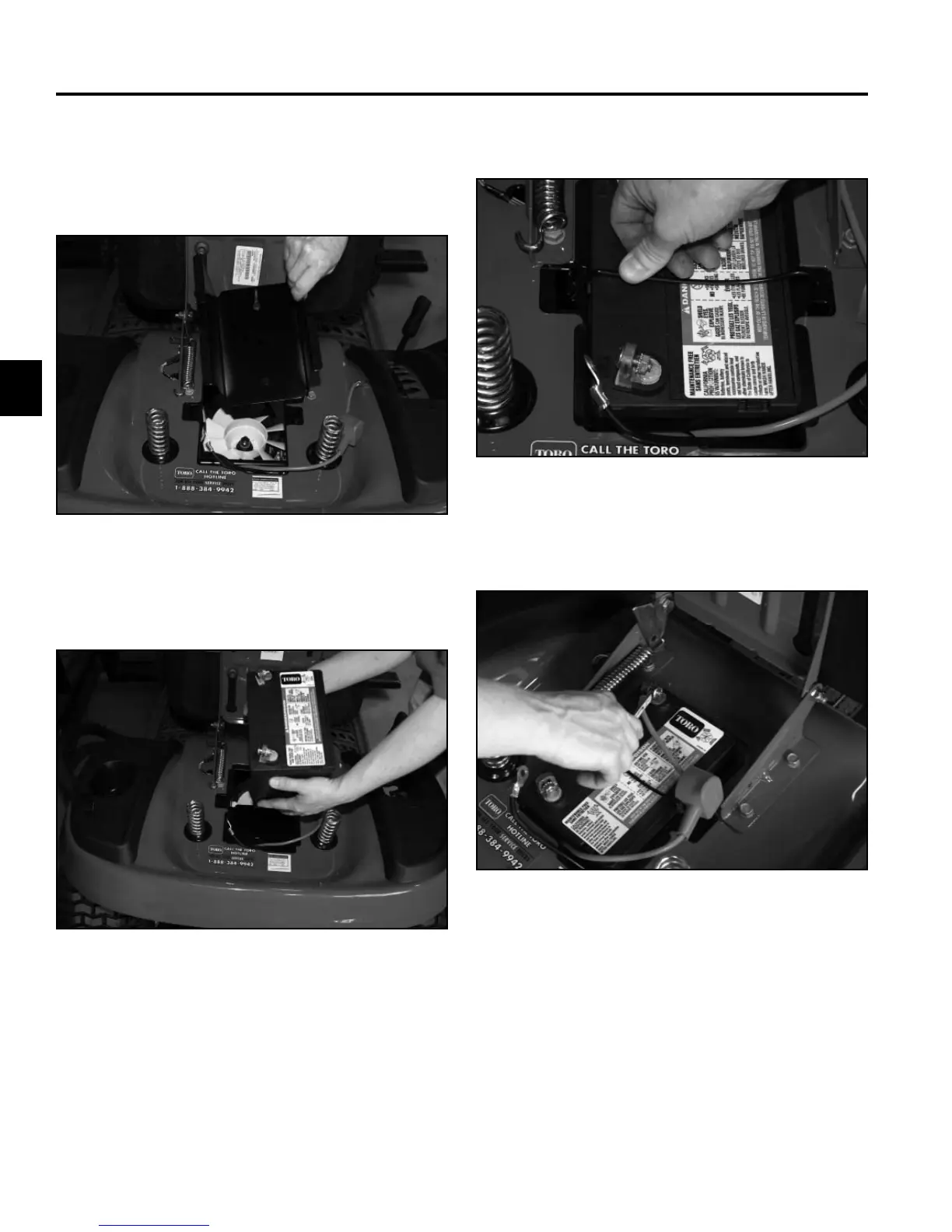

Fig 297 PICT-7499
11. Position the battery into the battery tray (Fig. 297).
Fig 296 PICT-7500
9. Install the mower deck. Refer to “46” Mower Deck
Installation” on page 7-72.
10. Install the battery tray (Fig. 296).
Fig 299 PICT-7495
13. Connect the positive battery cable (Fig. 299).
Fig 298 PICT-7497
12. Install the battery hold down strap (Fig. 298).
