ServiceandRepairs
EngineAssembly

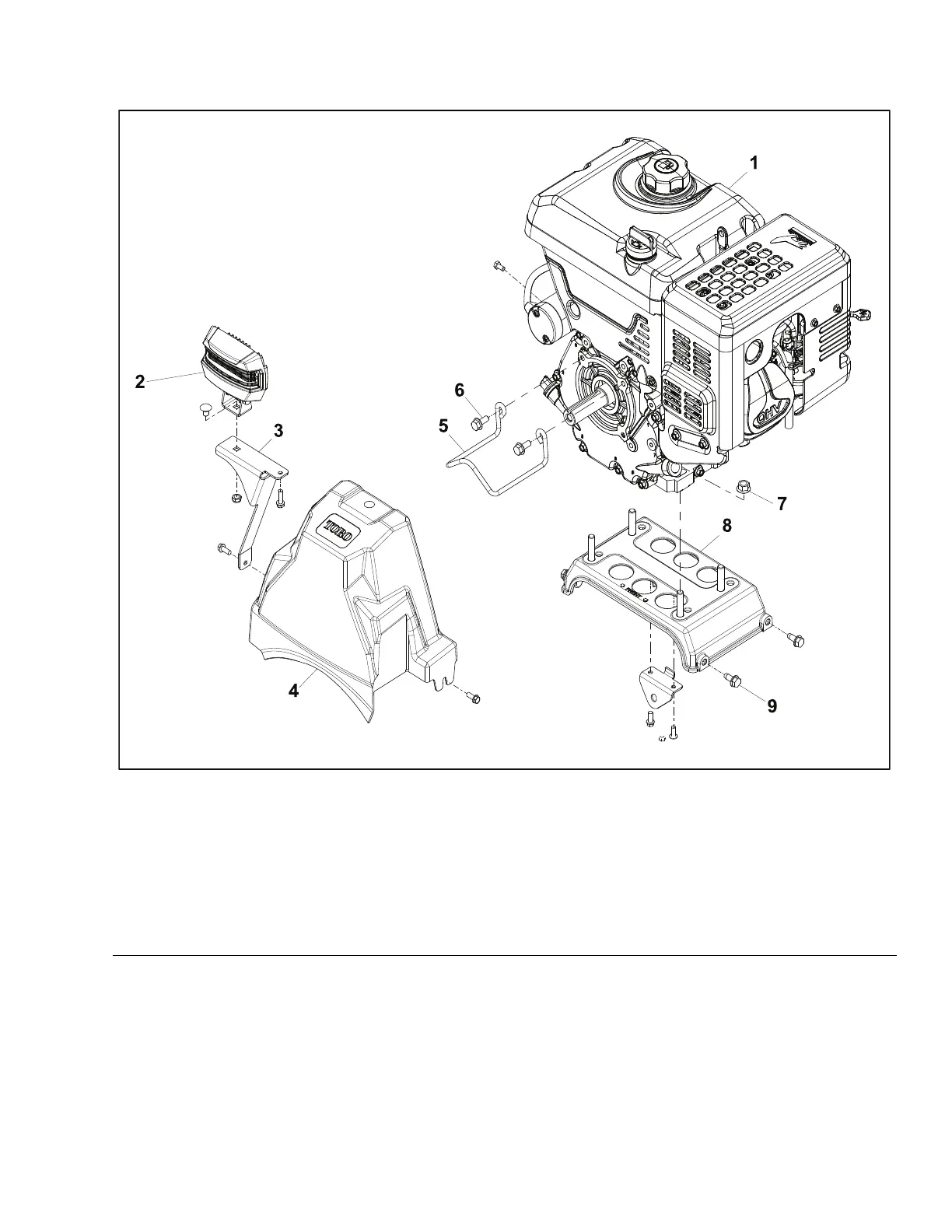

Figure3
1.Engine(highspeedidle3300±100RPM,carburetor
bowldrainscrew62-88in-lbs.(7.1–10.1Nm))
6.Torqueto120-160in-lbs.(13.8–18.4Nm)
2.LEDLightAsm.
7.Torqueto150±15in-lbs.(17.25±1.7Nm)
3.LightBracket8.EnginePlateAsm.
4.BeltCover9.Torqueto110±20in-lbs.(12.65±2.3Nm)
5.BeltGuide(0.06±0.03in.(0.15±0.08mm)fromauger
beltwhenclutchisengaged)
POWERMAX®HDServiceManual
Page4–3
Engine:ServiceandRepairs
3424-820RevA
