ControlInterlockInstallation(continued)
2.Installthelockoutlinkontothelockoutrod.
3.Installthelockoutcamandaugerlever.
4.Installthe2rollpinsontheLHsideandthepininthelockoutcamonthe
RHside.
5.Installthelockoutlatch,extensionspring,atwasher,andlocknut.Installthe
shoulderscrewundertheRHhandgrip
6.Ifthisisawheelclutchmodel,connectthewheelclutchcables.Connectthe
augerandtractioncablestothelevers.
ControlReplacementandAdjustment
DeectorCableRemoval
1.Parkthemachineonalevelsurface.Stoptheengine,waitforallmoving
partstostopandremovethekey.
2.Depressthetabsthatretainthecableinthebracketunderthecontrolpanel.
DisconnecttheZ-bendontheend.

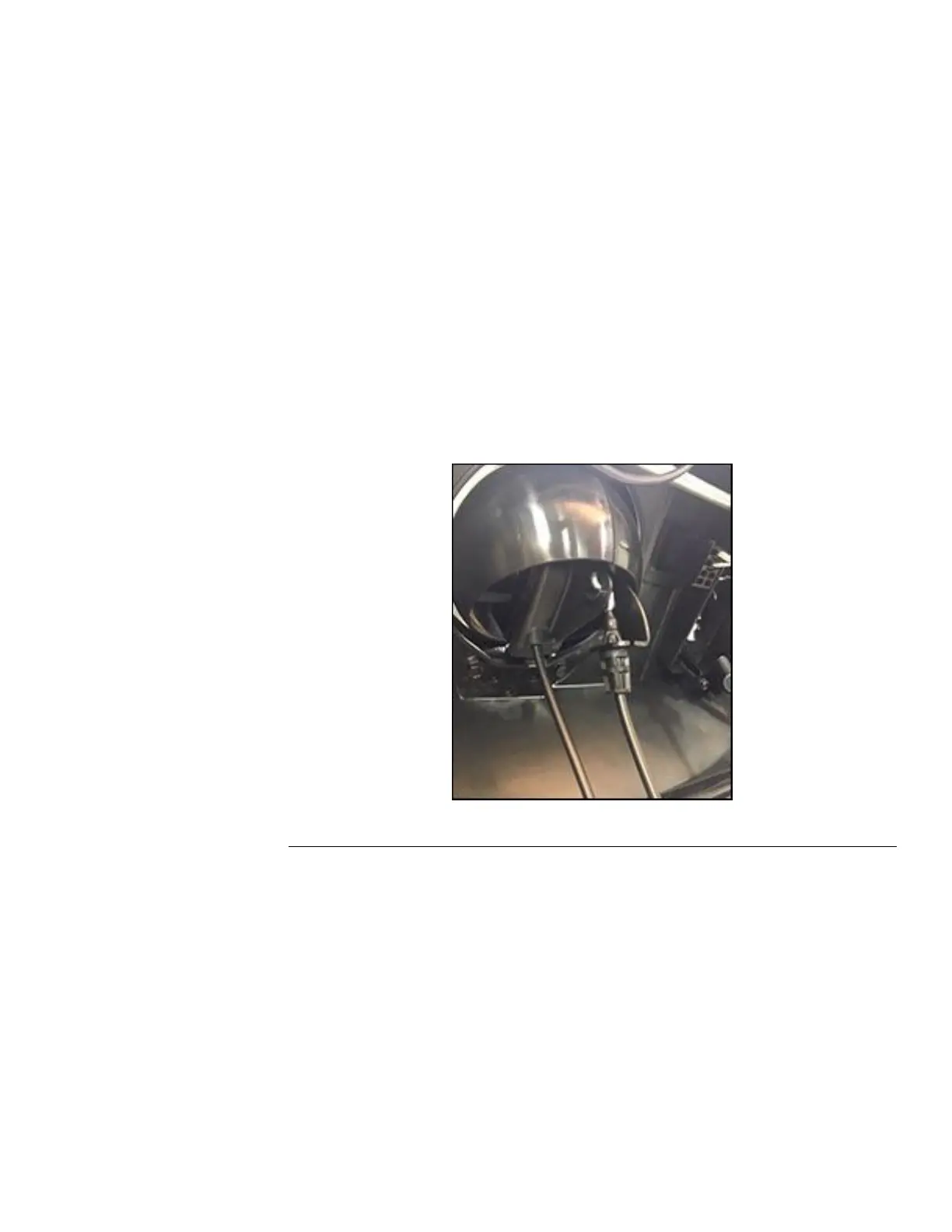

Figure25
3.Removethecableclampanddisconnectthecableendfromthedeector.
