Toro POWER MAX HD - Chute and Face Gear Cover Replacement

ChuteandFaceGearCoverReplacement
ChuteandFaceGearCoverRemoval
1.Parkthemachineonalevelsurface.Stoptheengine,waitforallmoving
partstostopandremovethekey.
2.Removethecablefromtheclampanddeectorlink.

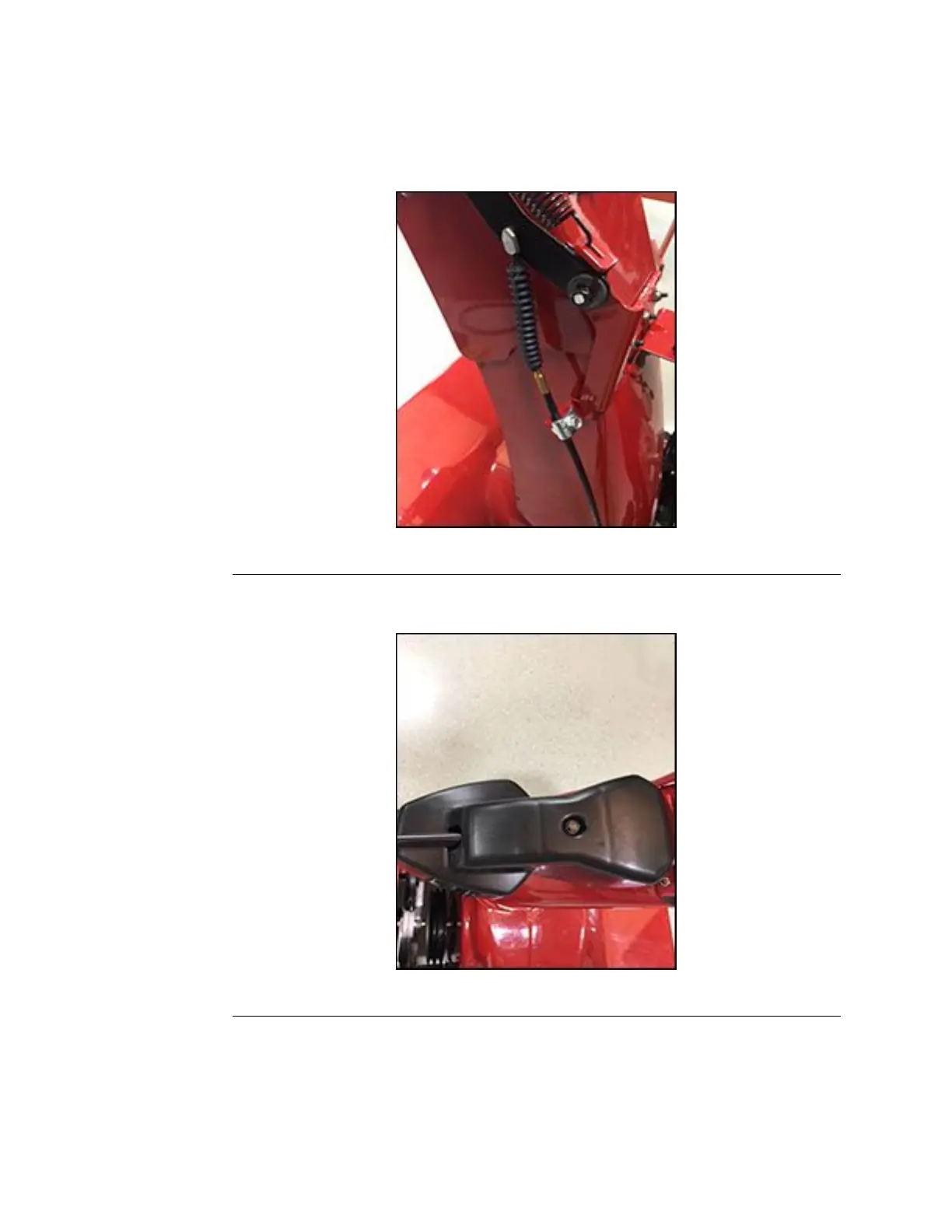

Figure83
3.Removethescrewretainingthegearcover.Liftthefrontofthecoverand
slidetowardstherear.
Figure84
4.Removetheboltonthechutegear.
DischargeChute:ServiceandRepairs
Page10–4
POWERMAX®HDServiceManual
3424-820RevA
