Toro POWER MAX HD - Fixed Scraper; Scraper Replacement

FixedScraper
Thexedscraperisboltedsolidlytotheaugerhousing,itisintendedtobe
raisedslightlyoffthegroundtominimizecatchingonpavementcracksandsolid
objects.Theamountthatisshouldberaiseddependsonhowroughtheground
is.Thescraperisadjustableasthemountingholesareslotted.

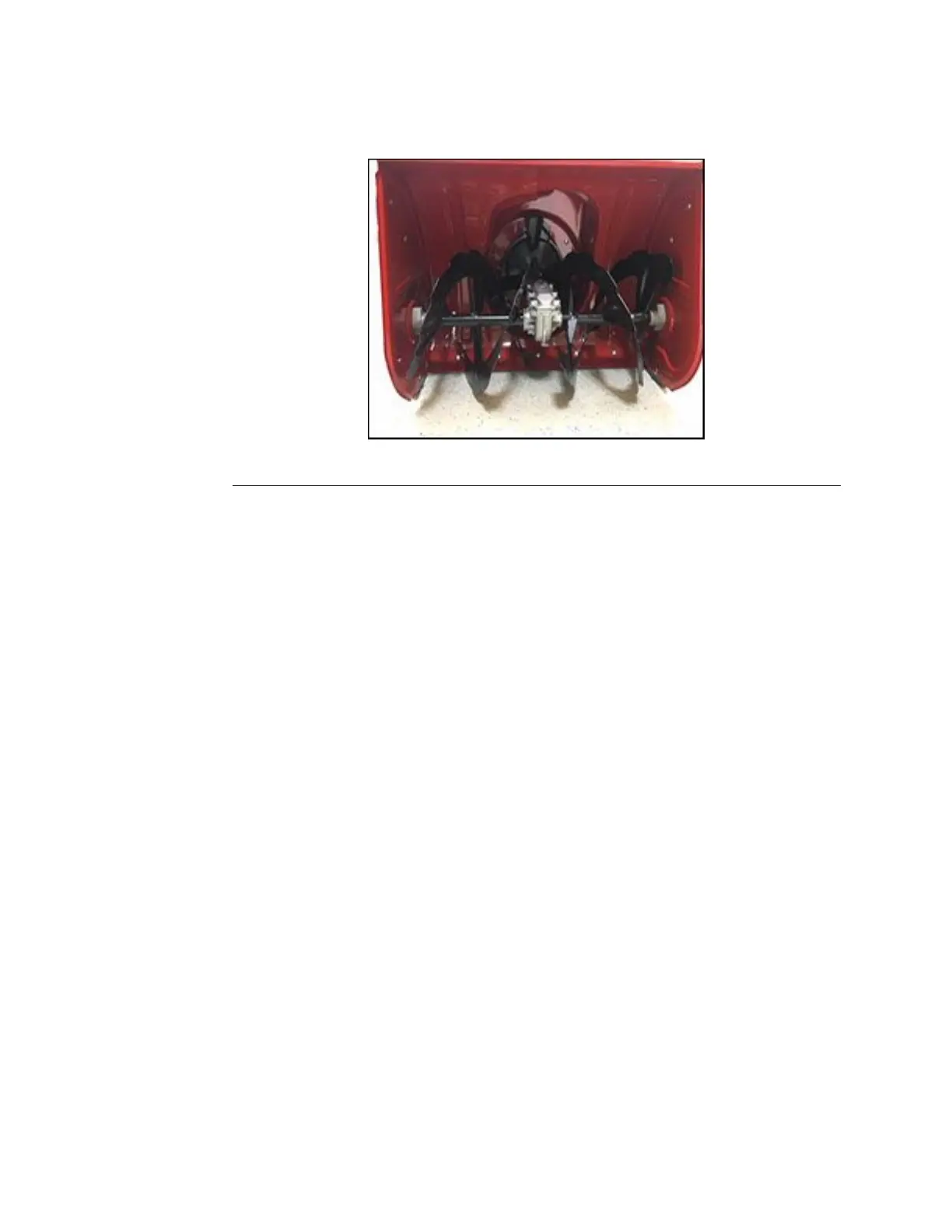

Figure42
ScraperReplacement
Thescraperisattachedwith5carriageheadboltswithlocknutsforthe28in.
model,7carriageheadboltswithlocknutsforthe32in.model.Installthenew
scraperbutdonottightentheboltsuntilthescraperisadjusted.
