Toro POWER MAX HD - Wheel Clutch Replacement

TractionDriveSystemInstallation(AutoturnModels)(continued)
9.Tipmachinebackwards,offtheaugerhousing.
10.Connecttheshiftlinkage.
11.Putfuelintothemachine.
WheelClutchReplacement
WheelClutchDisassembly

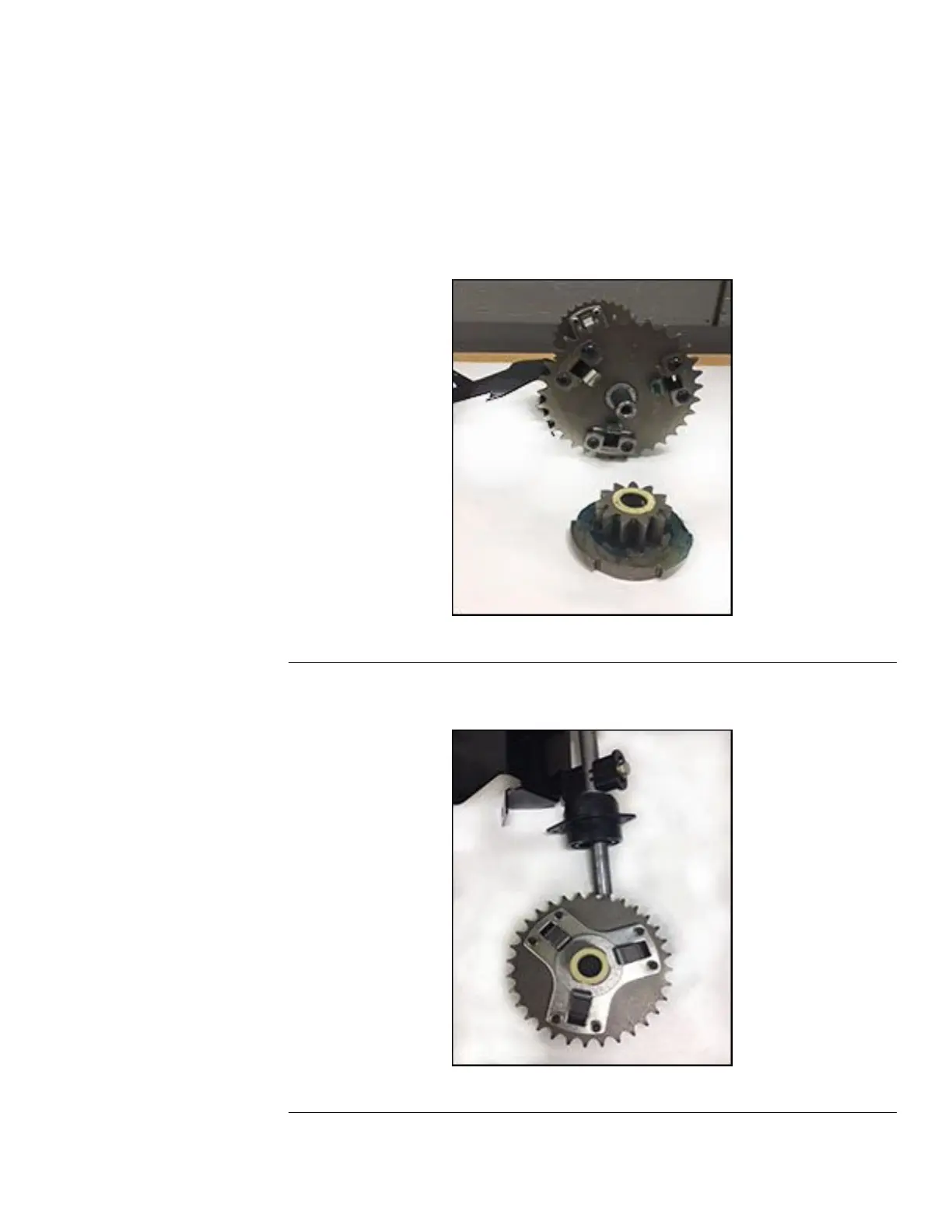

1.Removethe11–toothgearfromtheintermediateshaft.
Figure69
2.Slidethewasherbehindthe11–toothgearofftheshaft.
3.Removethe32–toothsprocketandthethrustwasherfromtheshaft.
Figure70
4.Removetheshiftcollarandatwasherfromtheshaft.
POWERMAX®HDServiceManual
Page9–15
WheelClutchTractionDriveSystem:ServiceandRepairs
3424-820RevA
