TractionDriveSystemRemoval(AutoturnModels)(continued)

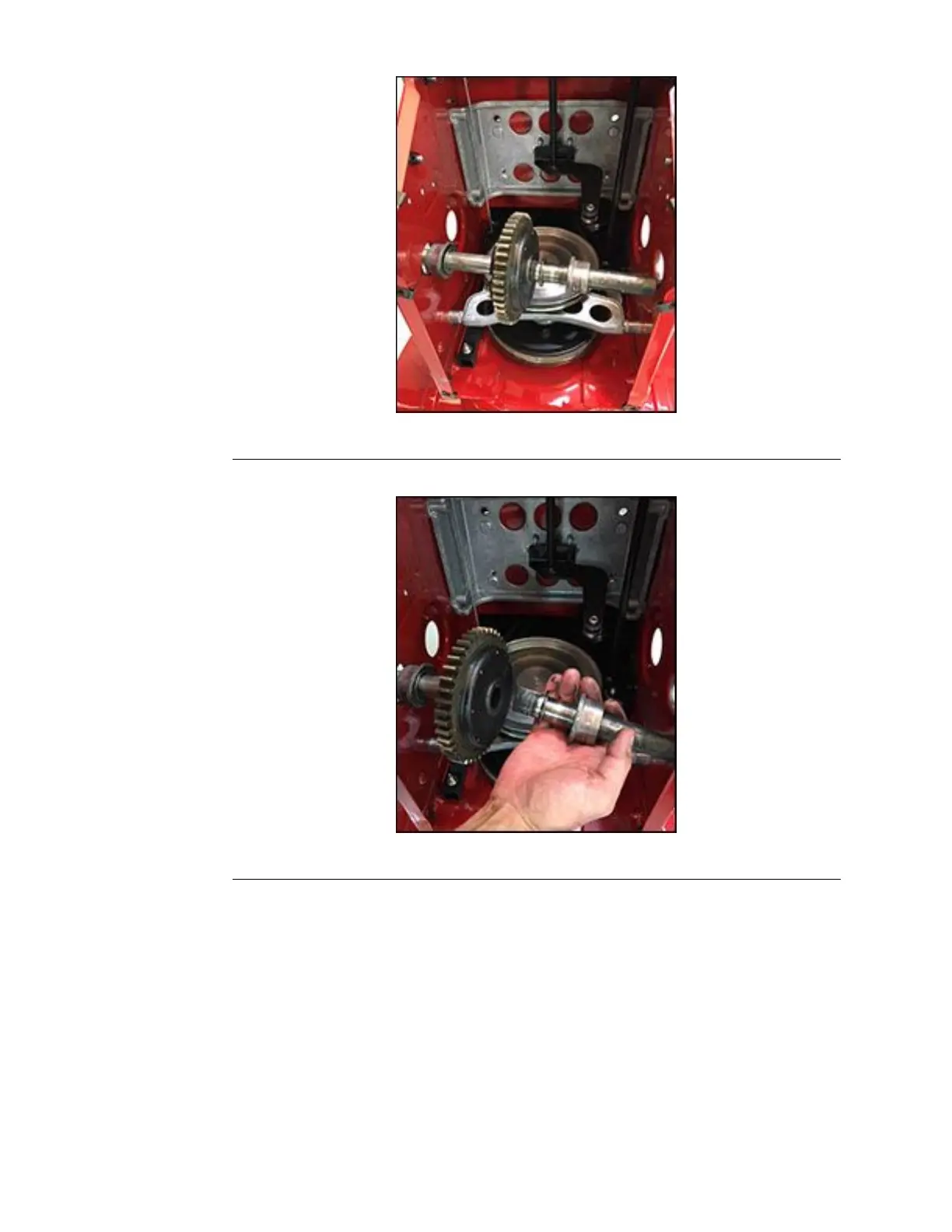

Figure67
12.Removethestubshaft,transmission,andaxlefromthemachine.
Figure68
TractionDriveSystemInstallation(AutoturnModels)
1.Installtheaxle,transmission,andstubshaftontothemachine.
2.Placetheaxleintopositiononthehousing.
3.Slidetheaxlebearingintoposition.
4.Installthesnapringsecuringtheaxlebearingtothehousing.
5.Installthehexshaftandfrictionwheels.
6.Installbothbearingretainers.Installthe2screwssecuringthebearing
retainersandhexshafttoeachsideofthetractionassembly.
7.Installthe4screws(2perside)securingtheintermediateshafttothehousing.
8.Installbothwheelkeysandwheels.
WheelClutchTractionDriveSystem:ServiceandRepairs
Page9–14
POWERMAX®HDServiceManual
3424-820RevA
