Toro POWER MAX HD - Service and Repairs

ServiceandRepairs
ChuteAssembly

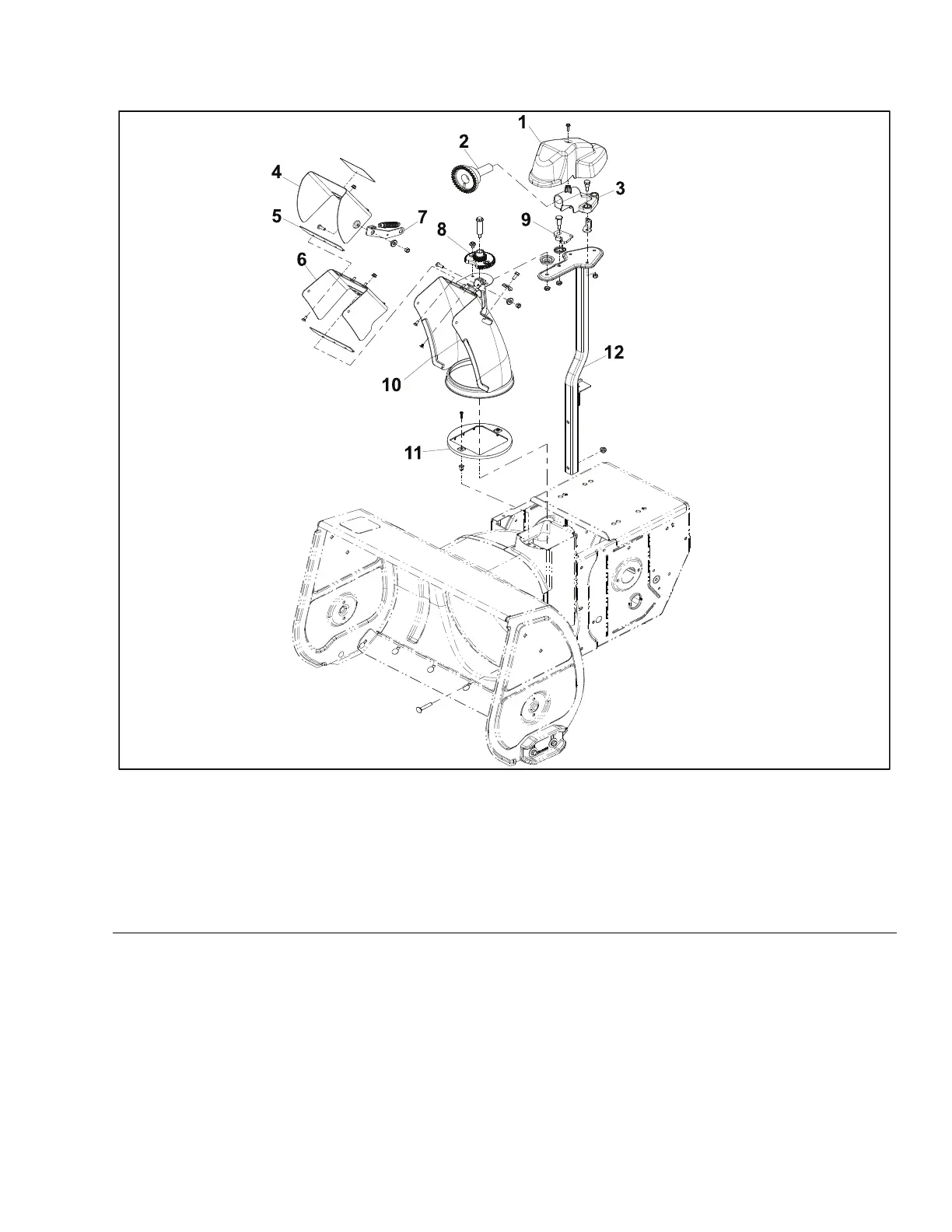

Figure82
1.FaceGearCover7.DeectorLink
2.FaceGear8.ChuteGear
3.FaceGearMount9.ChuteLatch
4.UpperDeectorAsm.10.LowerChuteAsm.
5.DeectorGasket11.ChuteGuide
6.MiddleDeectorAsm.12.ChutePostAsm.
POWERMAX®HDServiceManual
Page10–3
DischargeChute:ServiceandRepairs
3424-820RevA
