ServiceandRepairs

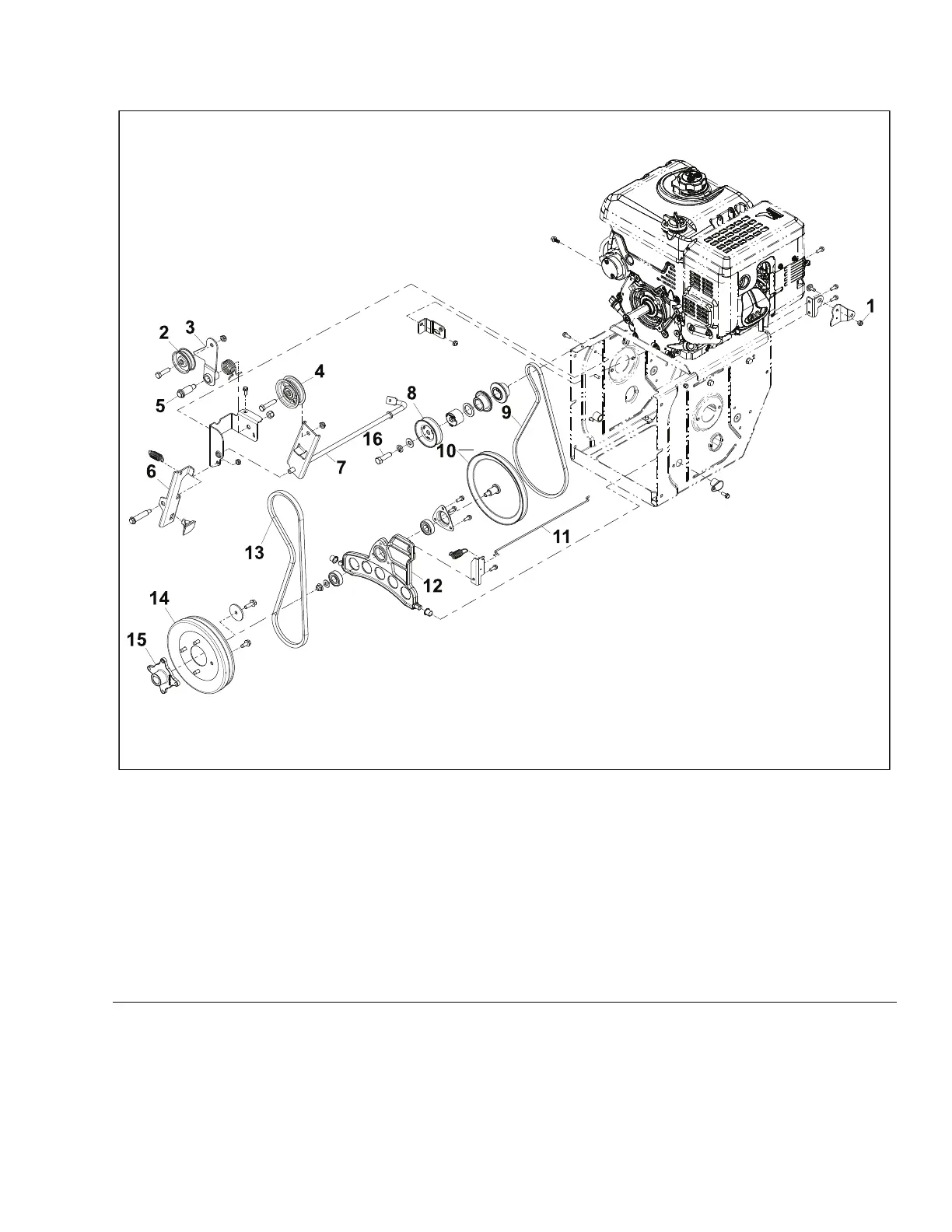

AugerDriveComponents
Figure34
1.Torqueto100±10in-lbs.(11.5±1.15Nm)
9.V-Belt
2.IdlerPulley
10.TractionPulleyAsm.(frictionplate-dryandfreefromoil)
3.TractionIdlerArm11.DriveLink
4.ImpellerIdlerPulley12.FrictionWheelPlate
5.ApplyAnti-Seize
13.V-Belt
6.BrakeArm
14.ImpellerPulleySingleSheave(pulleygrooves-dryand
freefromoil)
7.ImpellerClutchArmAsm.
15.PulleyHub
8.IdlerInputPulley(pulleygrooves-dryandfreefromoil)16.Torqueto29±3ft-lbs.(3.3±0.3Nm)
POWERMAX®HDServiceManual
Page6–3
Belts:ServiceandRepairs
3424-820RevA
