Toro POWER MAX HD - Chute Gear Replacement

ChuteandFaceGearCoverRemoval(continued)

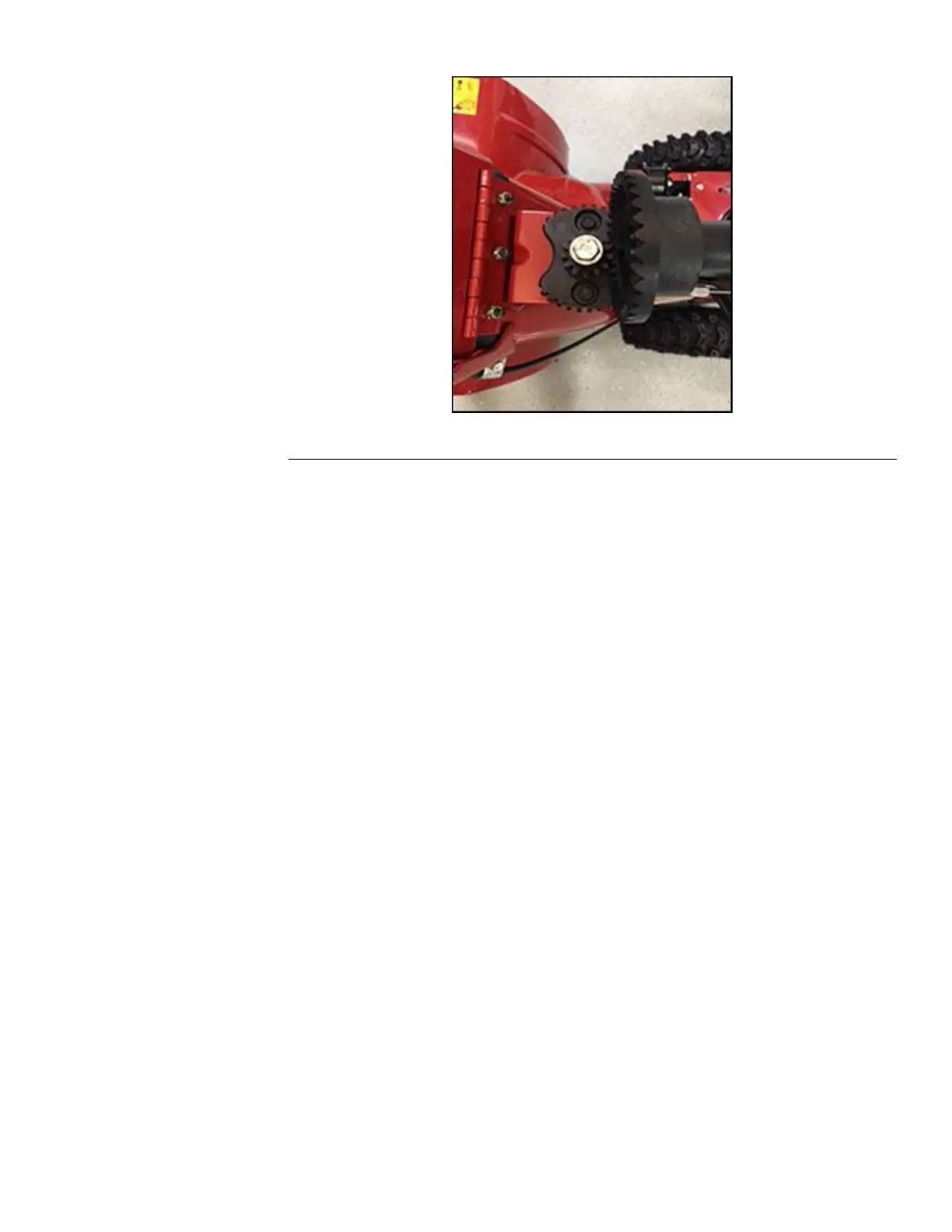

Figure85
5.Removethechute.
ChuteandFaceGearCoverInstallation
1.Installthechute.Securewithaboltonthefacegear.
2.Installthefrontofthecoverintoposition.Securewithascrew.
ChuteGearReplacement
ChuteGearRemoval
1.Parkthemachineonalevelsurface.Stoptheengine,waitforallmoving
partstostopandremovethekey.
2.Removethescrewonthefacegearcover.
3.Raisethefrontofthecoverandslidetowardstherear.
4.Removethelocknutfromthebottomofthe3shoulderscrews.
5.Disconnectthelatchcablefromthecableanchor.
6.Raisethefrontofthefacegearandslidetowardsthechuterod.
7.Removetheshoulderboltfromthechutegear.
8.Removethe2screwssecuringthegeartothebracket.Removethegear.
Note:Aplasticspacerisunderthebracket.
ChuteGearInstallation
1.Attachthechutegeartothebracket.Securewith2screws.
2.Placethespacersideuponthesupporttube,thensetthegearandbracket
downonit.Theshoulderboltgoesthroughandissecuredwiththewasher
andlocknut.
3.Slidethefacegearmountonthechuterod,ifremoved.Slidethefacegear
onthechuterod.
4.Thefacegearhasaribmoldedintoitandthechutegearhas2.Lineupthe
ribsandplacethefacegearmountontothesupporttube.
POWERMAX®HDServiceManual
Page10–5
DischargeChute:ServiceandRepairs
3424-820RevA
