Toro POWER MAX HD - Auger Belt Replacement

AugerBeltReplacement
AugerBeltRemoval
1.Parkthemachineonalevelsurface.Stoptheengine,waitforallmoving
partstostopandremovethekey.
2.Removethebeltcovers.

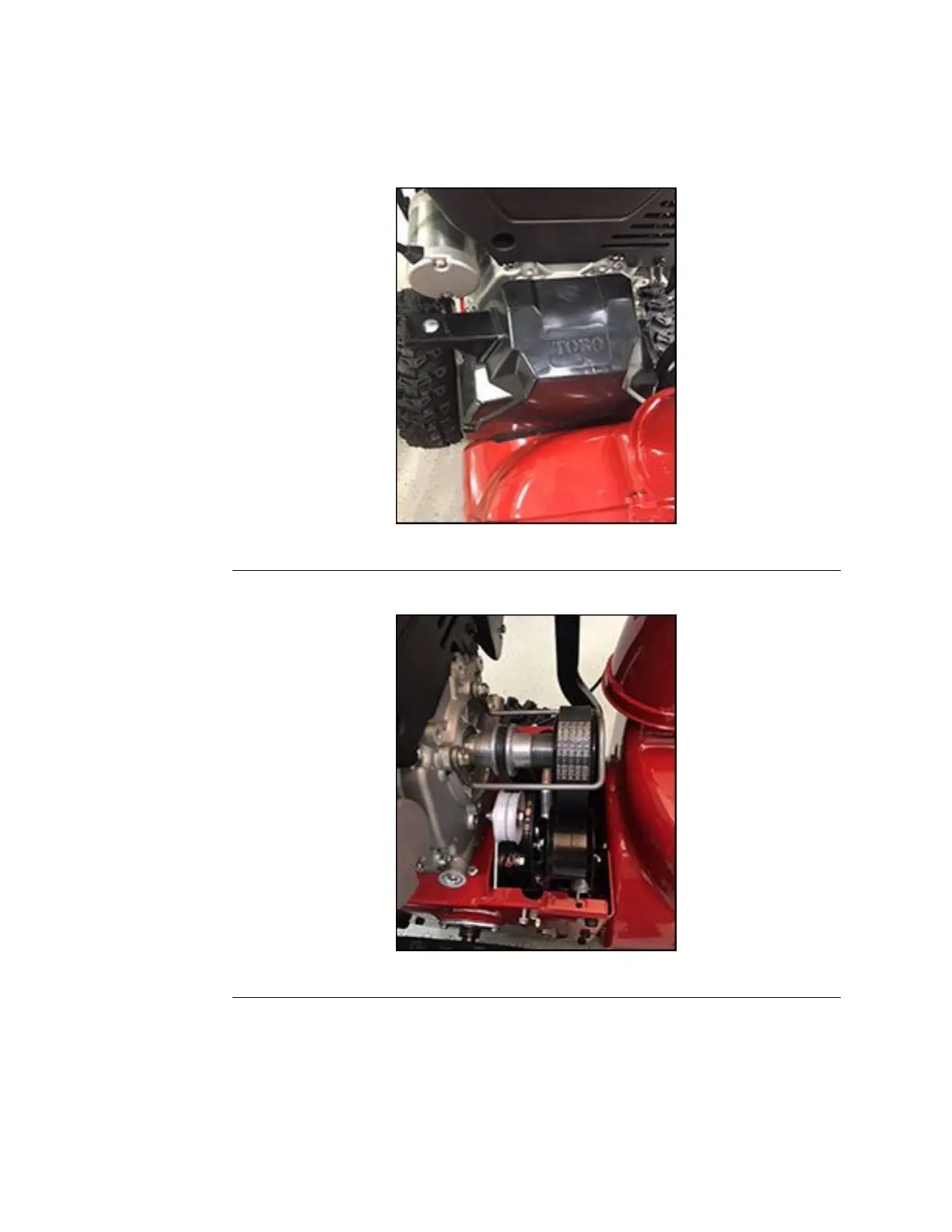

Figure35
3.Removethebeltguide.Avoidbendingtheguide.
Figure36
4.Removetheboltsecuringtheenginepulleytothecrankshaft.Ifnecessary,
holdthehubbetweenthepulleyandenginetokeepthecrankshaftfrom
turning.Removethepulleyandtheaugerbeltfromthecrankshaft.
Belts:ServiceandRepairs
Page6–4
POWERMAX®HDServiceManual
3424-820RevA
