ServiceandRepairs
Gearbox,AugerandImpeller

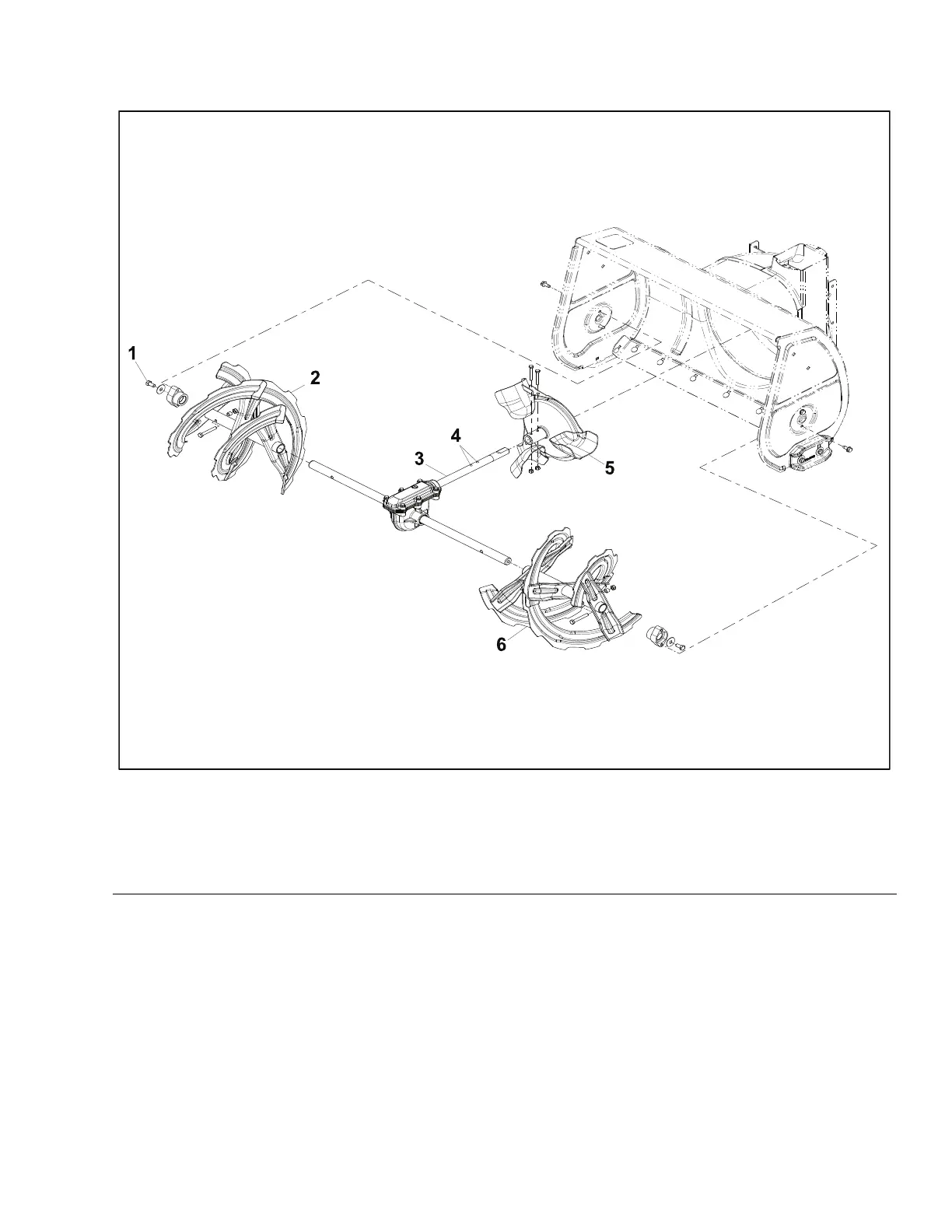

Figure43
1.Torqueto33±3ft-lbs.(3.8±0.3Nm)4.Applylightcoatofanti-seizeonshaft,½in.outsideof
holes
2.RHAuger5.Impeller
3.AugerGearcaseAsm.(applylightcoatofanti-seize)
6.LHAuger
POWERMAX®HDServiceManual
Page8–3
AugerGearbox:ServiceandRepairs
3424-820RevA
