ControlInterlockRemoval(continued)

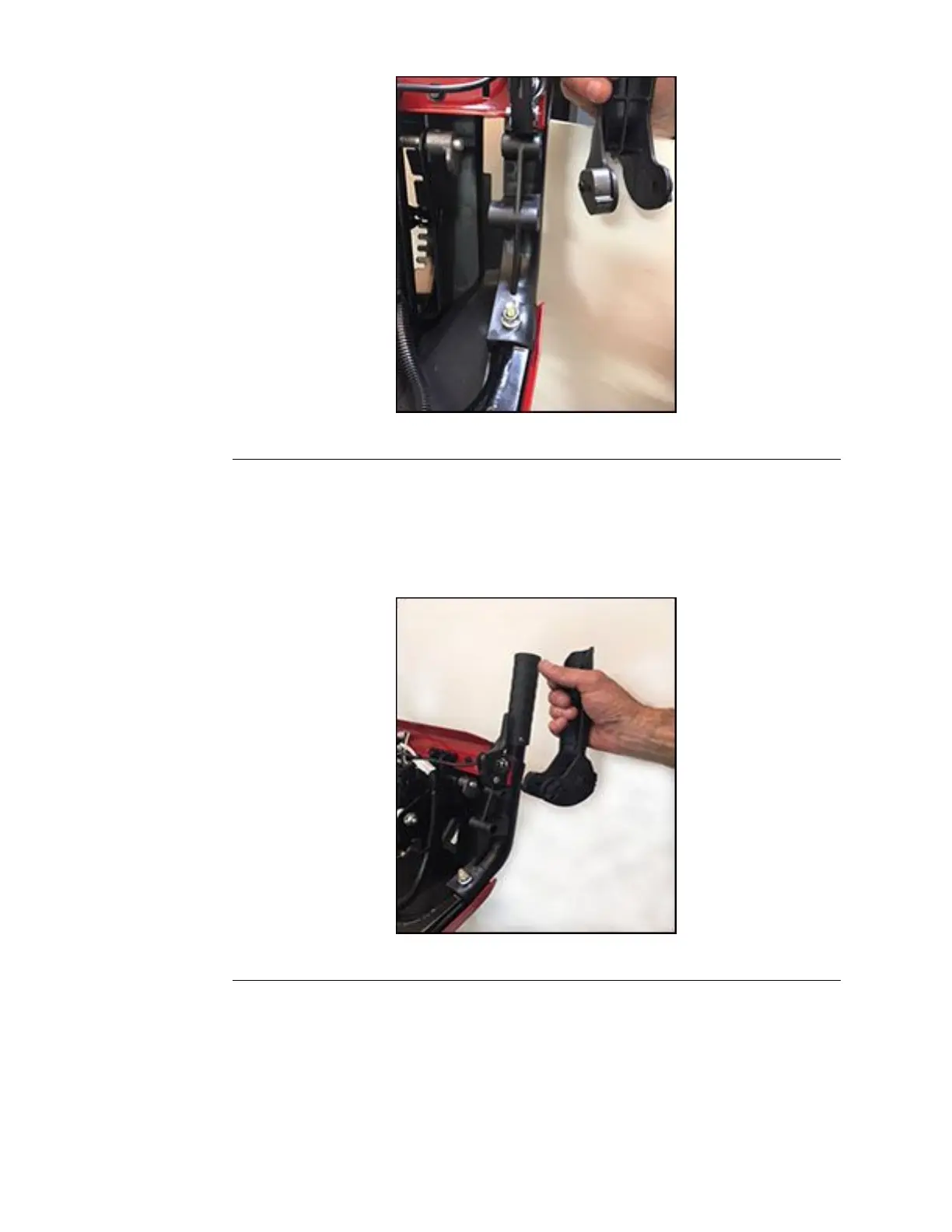

Figure23
5.Oncetherollpinsaredrivenout,thelockoutrodcanbemovedtotheside
andremoved.Thelockoutlinkcannowberemovedfromthelockoutrod.
6.Removethelevers.
Note:Steps1and2above,donotneedtobedoneinthatorder.It’spossible
toremovetherodwithoutremovingtheshoulderbolt.
Figure24
ControlInterlockInstallation
Note:Noticethespringonthelockoutlatch.Theendwiththeslightbendgoes
behindthelockoutlatchandthehookedendgoesoverthesmalltab.Itiseasier
toinstallthelatchmechanismrst,thenhooktheendofthespringwithawire
topullintoplace.
1.Installthetractionleverandtorsionspring.
Controls:ServiceandRepairs
Page5–12
POWERMAX®HDServiceManual
3424-820RevA
