ClutchCableRemoval(continued)
3.Removethenutandwasherthatattachthecableclamptothehandle.
4.Slipthecablebarrelendoutofthewheelclutchleveronthehandle.
5.Reachundertheshiftplateandcompressthesmallearsonthecabletting.
Thecablettingcanthenbepushedoutoftheshiftplate.
6.Disconnectthelowerendofthecablefromtheshiftcollar.

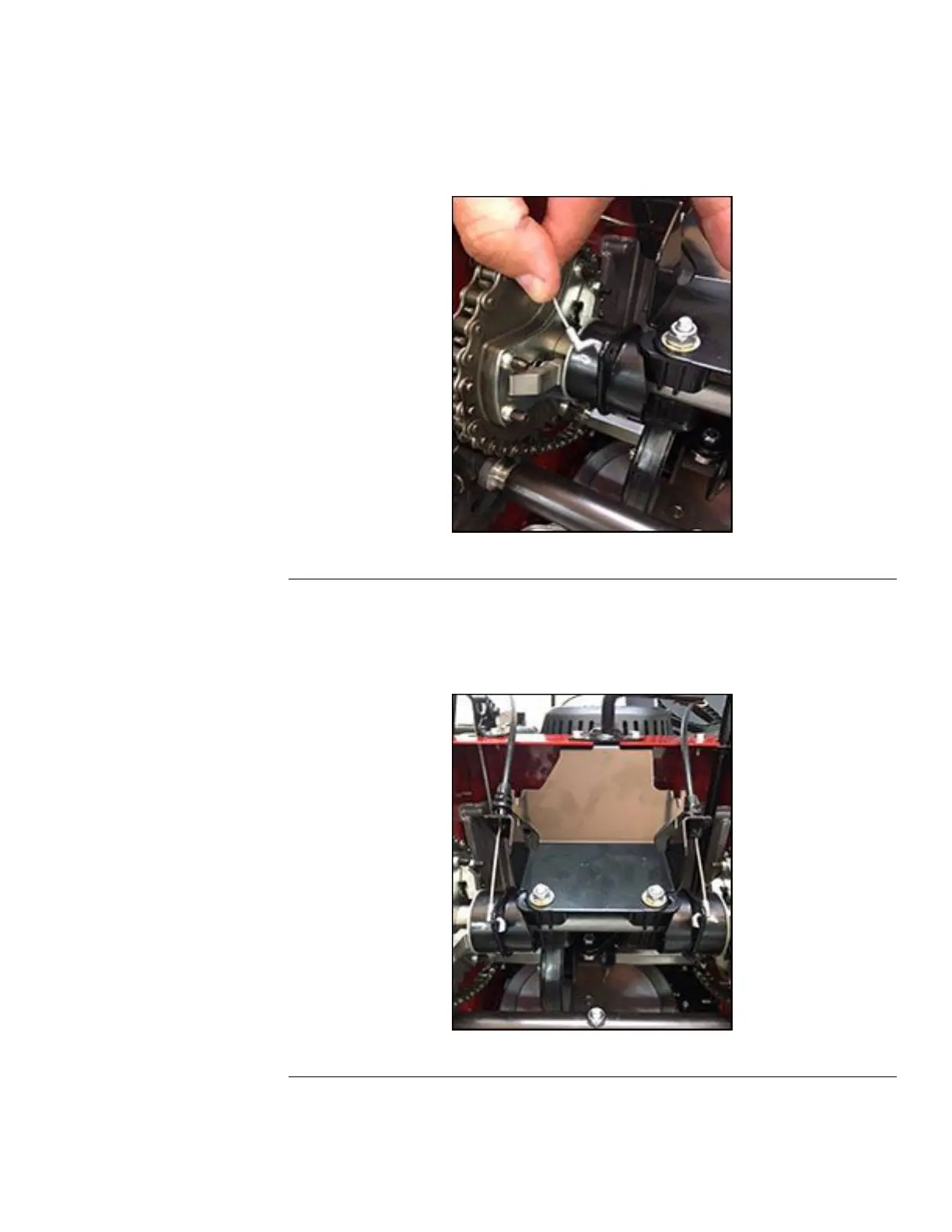

Figure32
ClutchCableInstallation
1.Feedthelowerendofthecablethroughtheshiftplateandsnapthecable
ontotheplate.Installthelowerendofthecableontotheshiftcollar(outside
in).
Figure33
2.Hooktheupperendofthecabletothewheelclutchleverandinstallthe
cableclamptothehandle.Seetheadjustmentprocedurebeforesecuring
theclamp.
