SeparatingtheAugerandTractionAssemblies(continued)

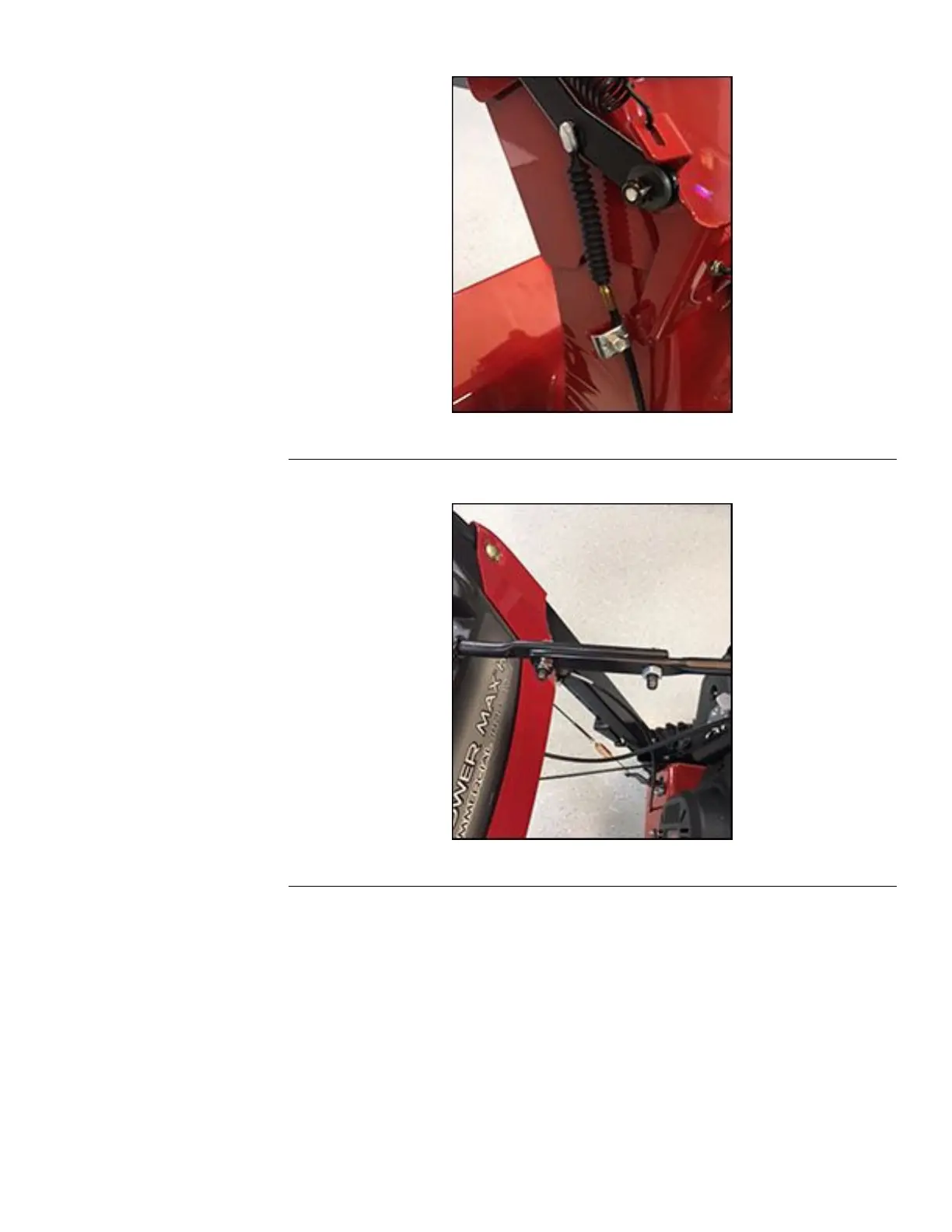

Figure46
7.Removethe2carriageboltsonthechutecontrolrod.
Figure47
8.Supporttheaugerandtractionhousingswithblocksofwood.
9.Removethefrictionwheelplatereturnspring.
10.Removethe3capscrewsoneachside,connectingtheaugertothetraction
assemblyandseparatethesections.
POWERMAX®HDServiceManual
Page8–5
AugerGearbox:ServiceandRepairs
3424-820RevA
