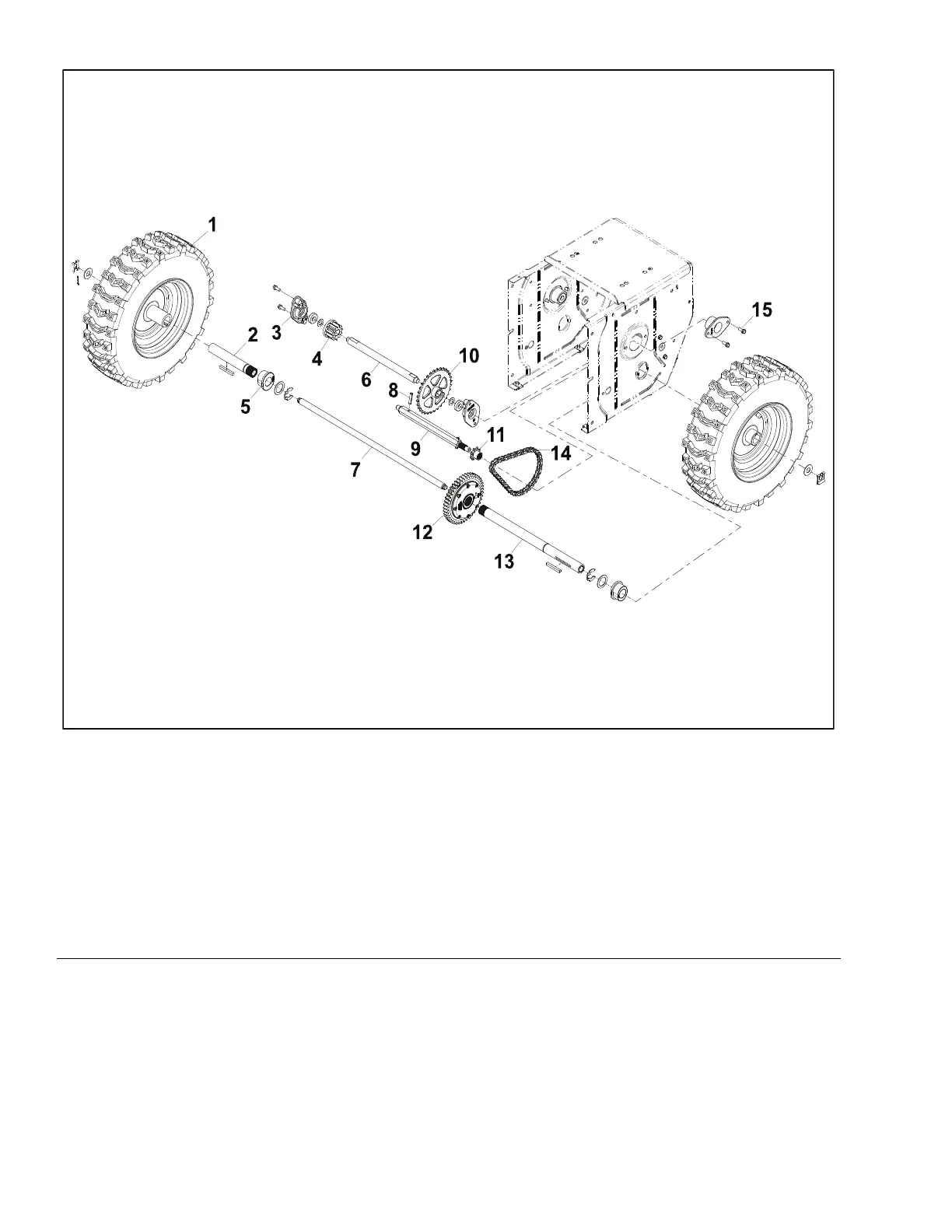

AutoturnDriveAssembly
Figure50
1.LHandRHtiresmustbyorientedwith“V”treadrotating
forward
9.HexShaft(applylightcoatofoil)
2.RHTubeAxle
10.Sprocket(applyacoatingofgrease)
3.IntermediateBearingRetainer
11.8–ToothPinionGear
4.11–ToothGear12.Transmission(applyacoatingofgrease)
5.AxleBushing13.LHTubeAxle
6.HDIntermediateShaft14.RollerChain(masterlinkcliptowardcenterofunit)
7.HDBaseAxle
15.Torqueto50–70in-lbs.(19.5–34.5Nm)
8.SlottedRollPinCenteredinShaft
WheelClutchTractionDriveSystem:ServiceandRepairs
Page9–4
POWERMAX®HDServiceManual
3424-820RevA
