WheelClutchReassembly(continued)

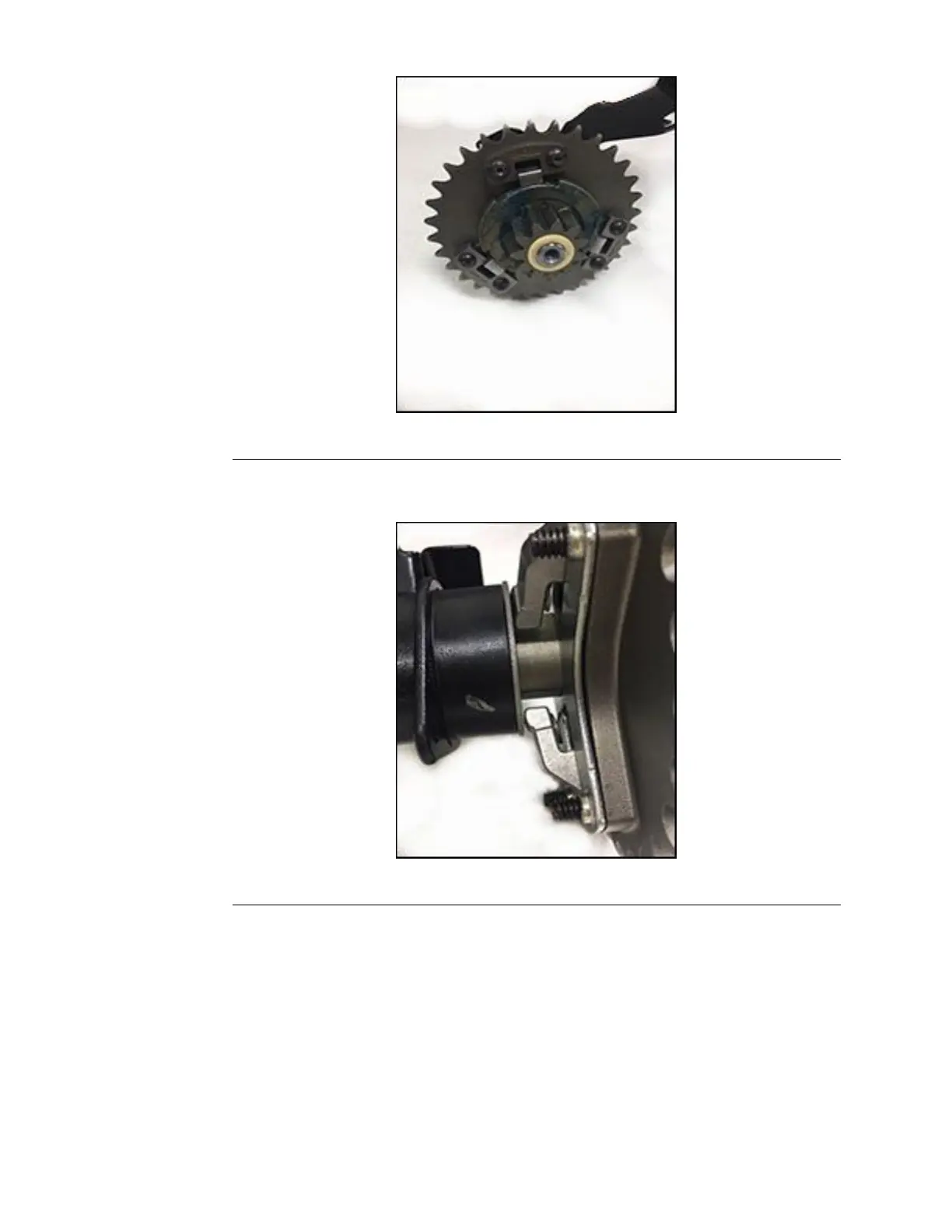

Figure79
14.Makesurethepawlsareupagainstthethrustwasherandthespringarenot
bindingandarecompressingproperly.
Figure80
15.Applyalightcoatofgreasetothe11–toothgear.Repeattheprocessfor
theoppositeside.
16.Assemblycannowgobackintothehousing.
WheelClutchTractionDriveSystem:ServiceandRepairs
Page9–20
POWERMAX®HDServiceManual
3424-820RevA
