TOS SUA 125 NUMERIC - Page 116

118 pages

Save Page as PDF

To Next Page

To Previous Page

SUA 125 NUMERIC

34200003 TOS a.s. 02/2011

116

Tab. 8

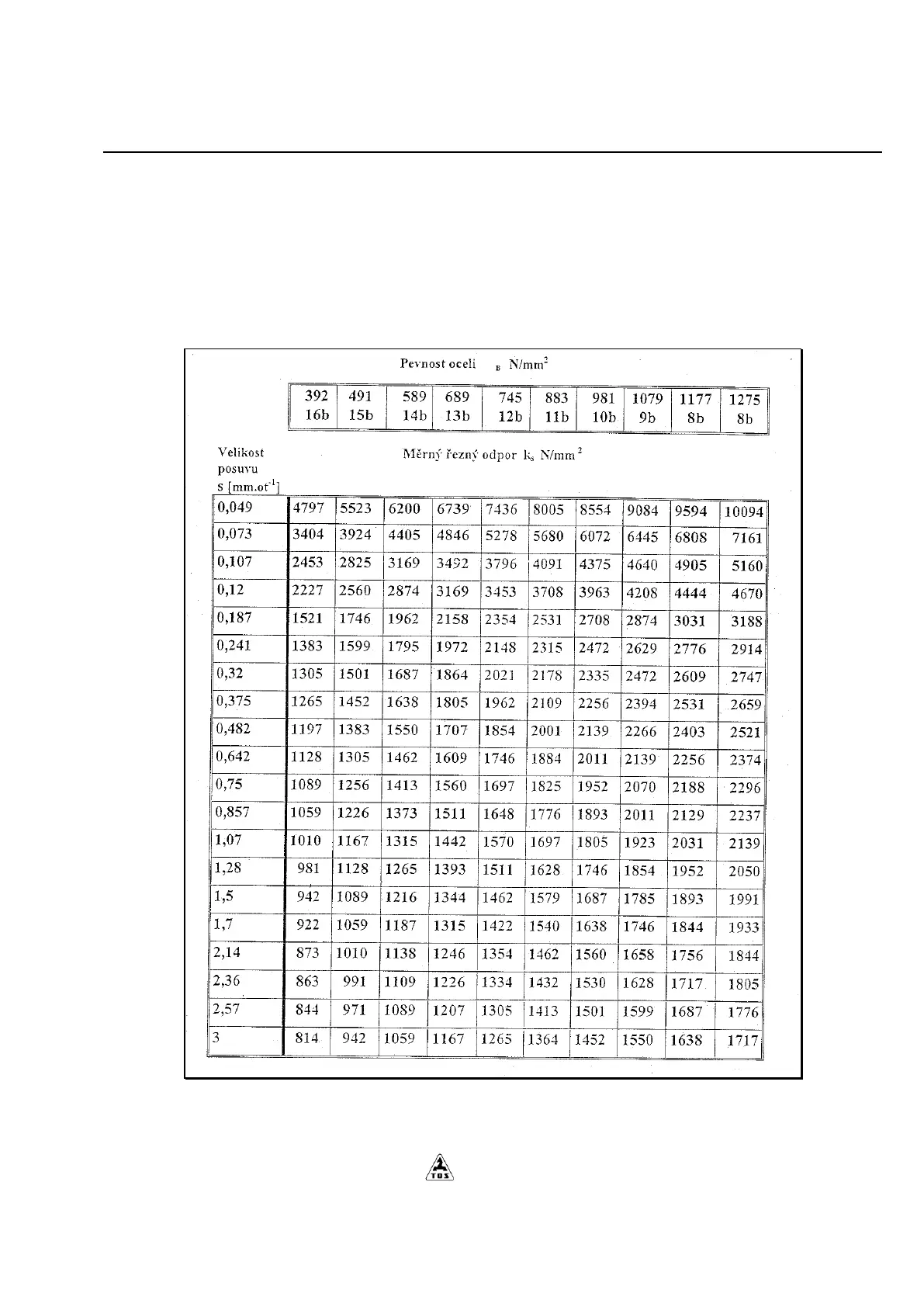

Table chart of the specific cutting resistance for steel

pevnost oceli Steel strength

velikost posuvu Feed

měrný řezný odpor Specific cutting resistance s (mm/r.p.m.)
