SUA 125 NUMERIC
34200003 TOS a.s. 02/2011
90
Transport facilities.
When the lathe is being slung:
- care should be taken to its correctly balance. Any differences in balance can be partly equalized by
displacement of the carriage and the tailstock.
- care should be taken the rope not to slip and rest against the protruding parts of lathe.
- the rope should be also fastened to the lifting rod as near as possible to the side face of the bed.
- ropes must be protected againstsharp edges by wooden lining or placing the wooden blocks under them.
- be careful in handling with the lathe and follow all safety instructions.
CAUTION: never enter under the transported lathe!

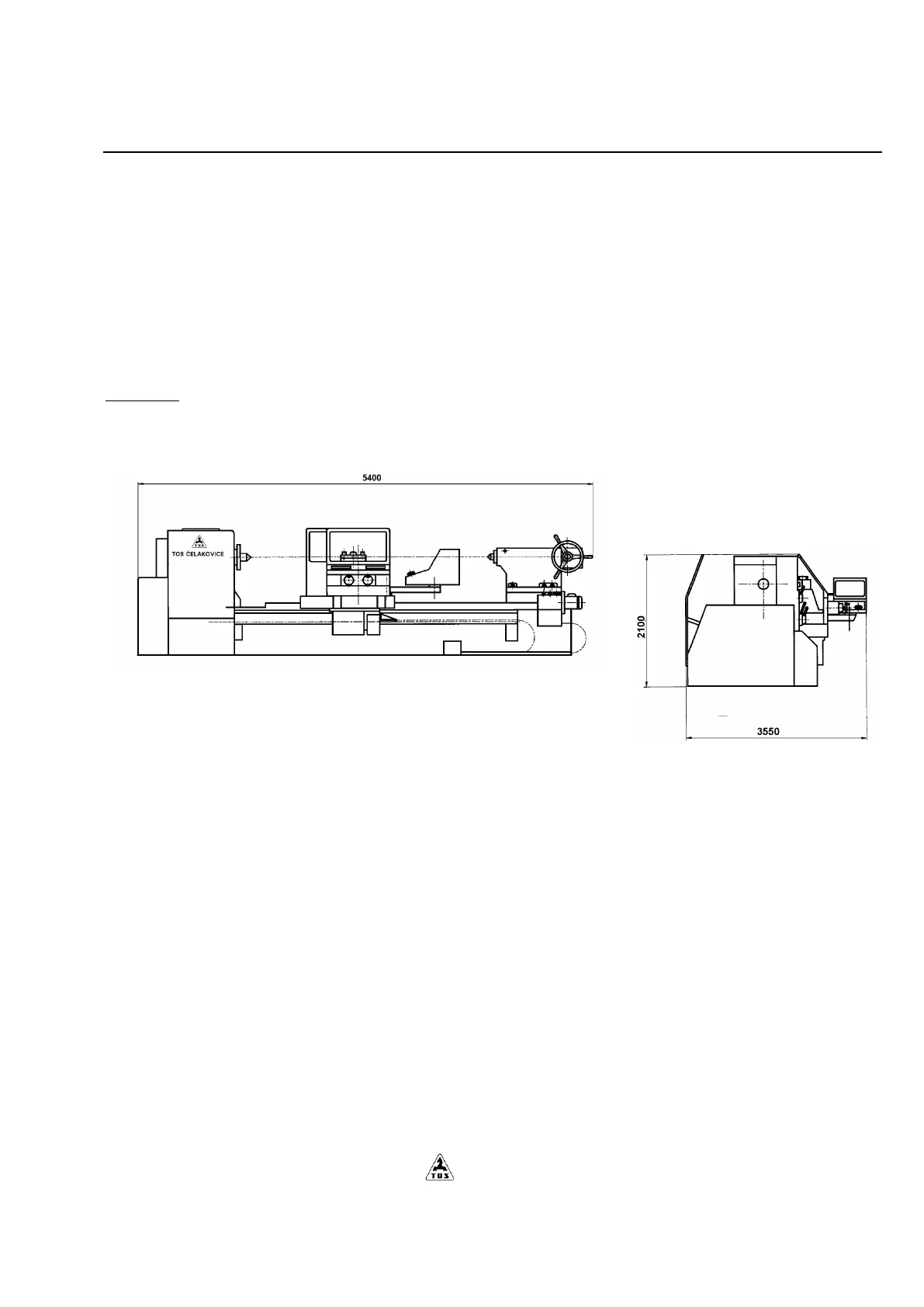

9.2. Dimensions and mass of the lathe (fig. 9.2).
Fig. 9.2
Dimensions and mass of lathe depend on its optional equipment and version.
Dimensions and mass of the machine:
- width 3550 mm
- height 2100 mm
distance between centres mm machine length mm mass kg
2 000 5 400 14 000
