For the transport by crane the lathe bed is provided in
front and rear sides by holes for steel bars - signed in
front bed body part A and B.
Caution:

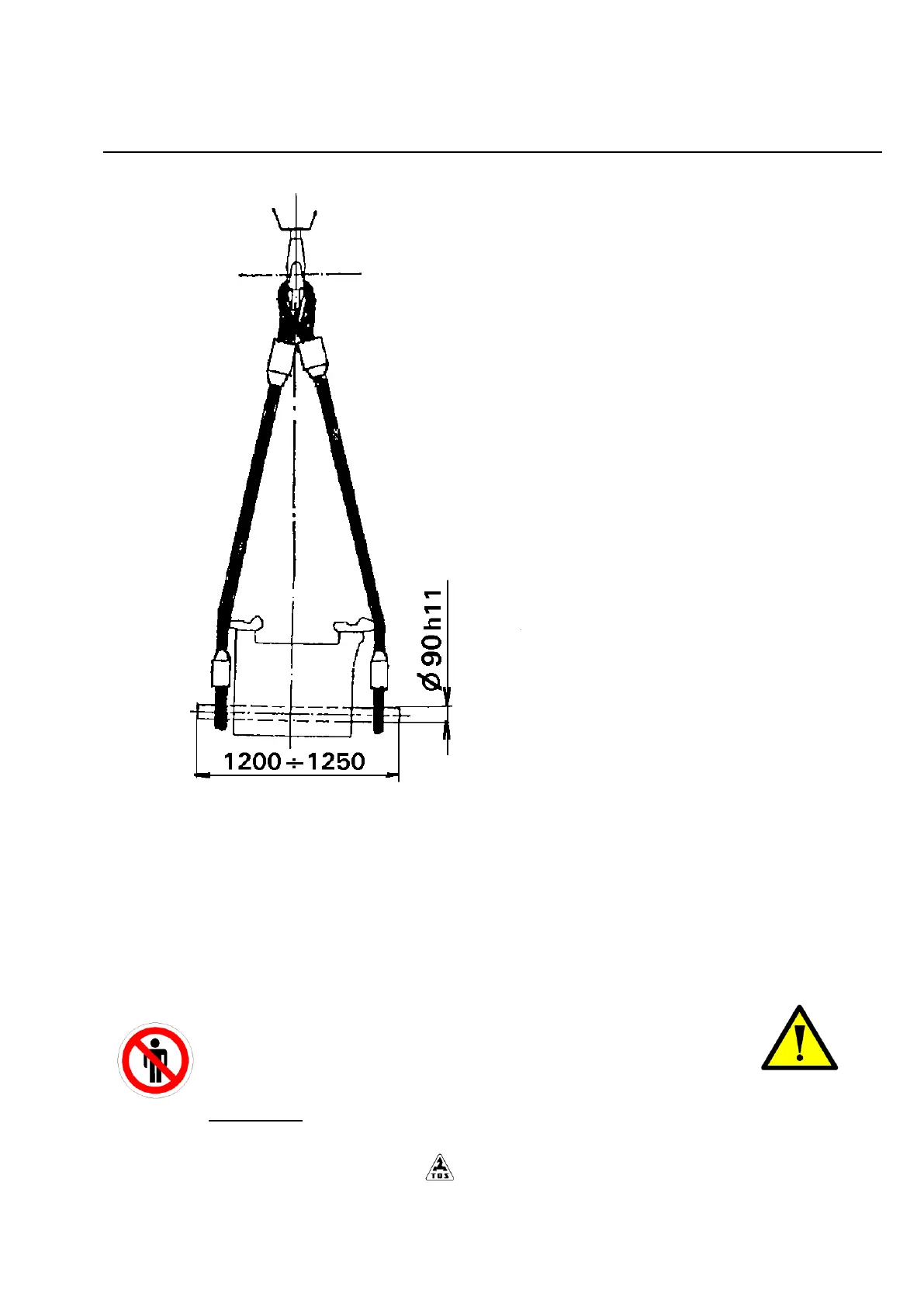

Before hooking on the cran (Fig. 9.1) the forwarder
has to remove all fixing facilities
Transport facilities:
Following things should be used for lifting:
- 2 pcs bars of 90 mm dia
600 - 700 MPa.
- 4 pcs in intact ropes with eyes with different
length (2 and 2 allways with the same length)
with corresponding loading capacity.
- sufficient dimensioned lifting device.
Caution.
When the lathe is being slung:
- care should be taken to its correctly balance.
Respective diferences in balance to be partially
balanced by change of length of rope pair.
-
c
a
r
e
should be taken the rope not to slip and rest against the
protruding parts of lathe.
- the rope should be also fastened to the lifting rod as
near as possible to the side face of the bed.
- ropes must be protected againstsharp edges by
wooden lining or placing the wooden blocks under them.
- be careful in handling with the lathe and follow all safety
- instructions.
CAUTION: never stay under the transported lathe!
