SUA 125 NUMERIC
34200003 TOS a.s. 02/2011
65

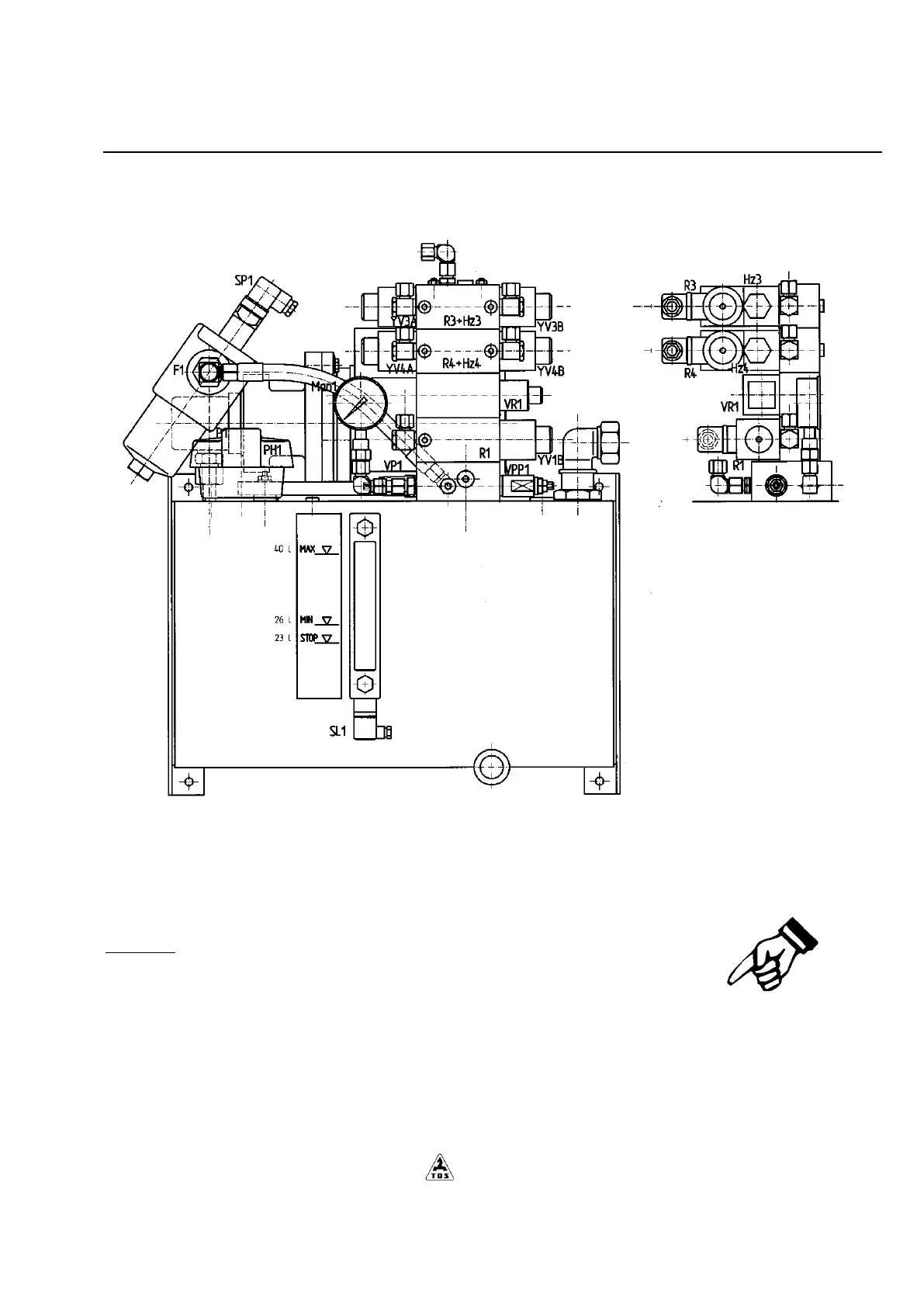

Hydraulic set
• clean the oil tank.
• screw on a tank lid.
• srew off oil filler cap and pour oil through the filling hole at the top oil level gauge.
• screw on oil filler cap.
CAUTION (operator): When tanking, oil must never be spilled on the
lathe and its surrounding area.
When oil is drained the floor must not be oiled up. Used
drained oil must be liquidated in accordance with the valid
hygienic and ecological regulations.
Lathe must be permanently observed in respect to the risk of:
- oil penetration from the hydraulic circuit
- cutting lubricant penetration to the hydraulic and
lubricating circuits.
