(4) Check the second page of the printed test print pattern to identify a pattern for the out-of-registration colors.
* There are 2 patterns for the out-of-registration colors. Check which pattern the out-of-registration colors to
adjust on the body are included.

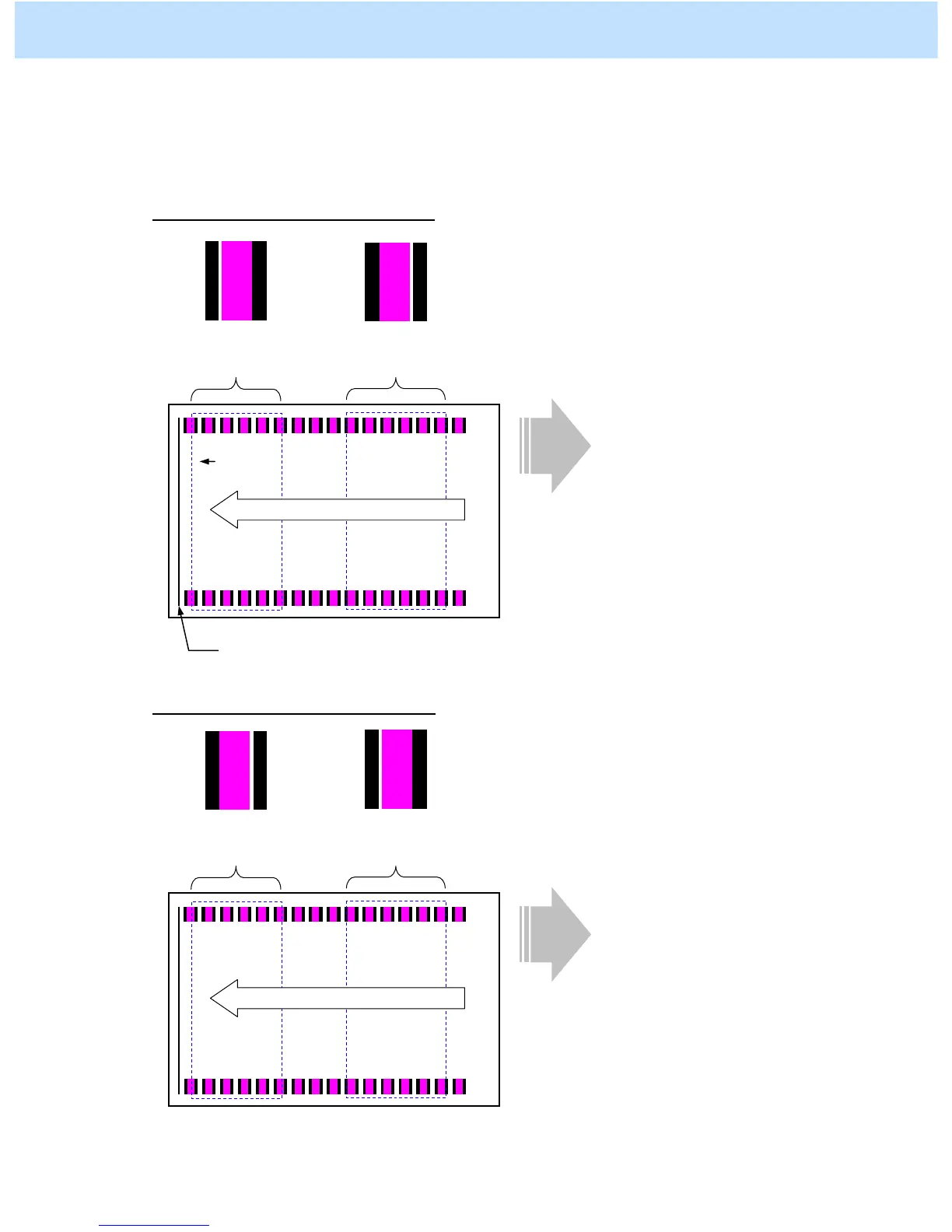

Pattern A for out-of-registration colors
Pattern B for out-of-registration colors
Paper feeding speed
faster than transfer belt
rotating speed
Paper feeding direction
Patch eliminated at
the trailing edge
Patch eliminated at
the leading edge
Page 2
Paper feeding speed
slower than transfer belt
rotating speed
Black belt at the leading edge in the paper feeding direction
Paper feeding direction
Patch eliminated at
the leading edge
Patch eliminated
trailing edge
Page 2
Page number
1. General Adjustments – Copying, Printing and e-Filing (Output from Box)
