4.6 Wireless LAN Card and UWB Card
Removing the Wireless LAN Card and UWB Card
Remove the wireless LAN card according to the following procedures and Figures 4-7 and 4-8.
CAUTION: Do not touch the connectors on the wireless LAN card and in the computer with
your bare hands. Wireless LAN cards can fail if they are contaminated with sweat, natural
oils, etc. from your hands.
1. Remove the two M2x4 screws securing the UWB card.
2. Disconnect one antenna cable.
3. Pull the UWB card up and out at an angle.

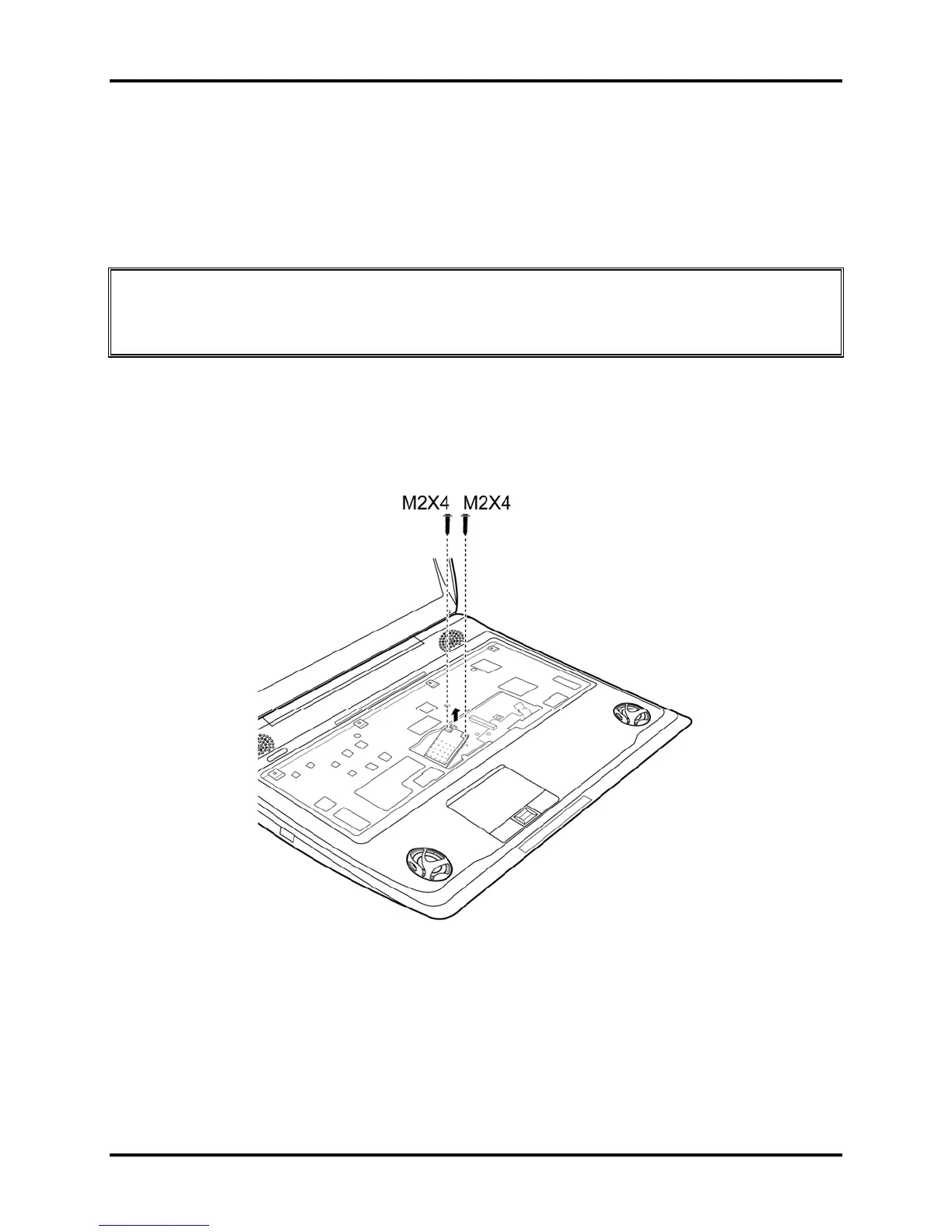

Figure 4-7 Removing the UWB card
4. Remove the two M2x4 screws securing the Wireless LAN card.
5. Disconnect 2 or 3 antenna cables (depending on the model).
Qosmio X300 Maintenance Manual 4-19
