4.11 Display Assembly
Removing the Display Assembly
CAUTION: Use care to avoid that the antenna cable is not caught between the display
assembly and computer.
Remove the display assembly according to the following procedures and Figures 4-16, 4-17.
1. Turn the computer so the rear is facing you and remove two M2.5x6 screws.
2. Restore the normal computer placement and open the display panel.

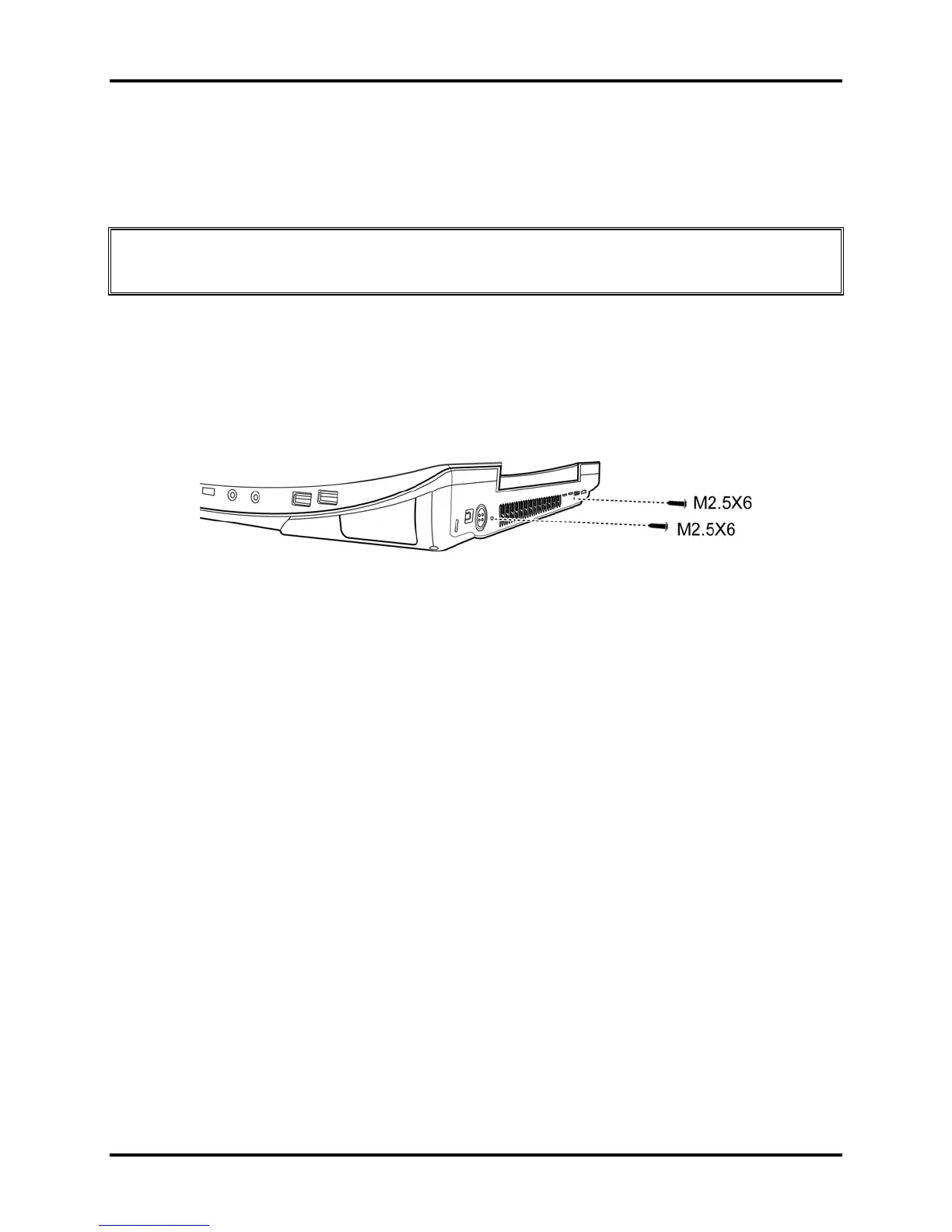

Figure 4-16 Removing the screws from the rear of the computer
3. Disconnect the cables on the system board.
4. Remove four M2.5x6 screws securing the LCD module to the top cover.
Qosmio X300 Maintenance Manual 4-32
