4.19 CPU Cooling Module and Fan
Removing the CPU Cooling Module and Fan
CAUTION:
When removing the cooling module, keep the following in mind:
The cooling module can become very hot during operation. Be sure to let it cool down before
starting the repair work.
Do not touch or cause damage to the fan in the cooling module.
Remove the CPU cooling module and fan according to the following procedures and Figures
4-28, 4-29.
1. Remove one M2x6 screws and four spring screws.

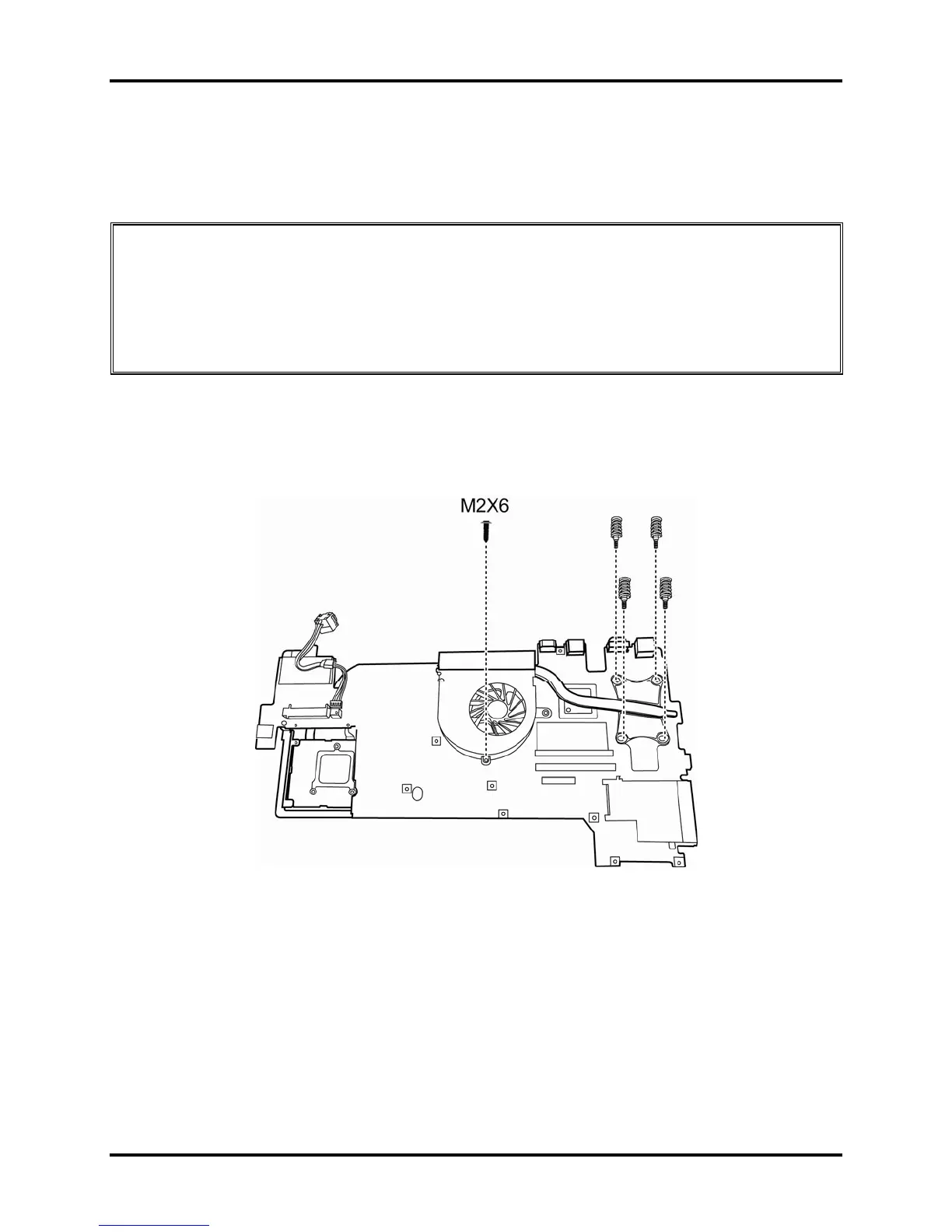

Figure 4-28 Removing the screws
Qosmio X300 Maintenance Manual 4-48
