Error! Style not defined. Error! Style not defined. 4 Replacement Procedures
2. Turn the board upside down.
3. Remove one cable connecting the cooling module.
4. Remove two M2x4 screws.
5. Remove the cooling module and fan.

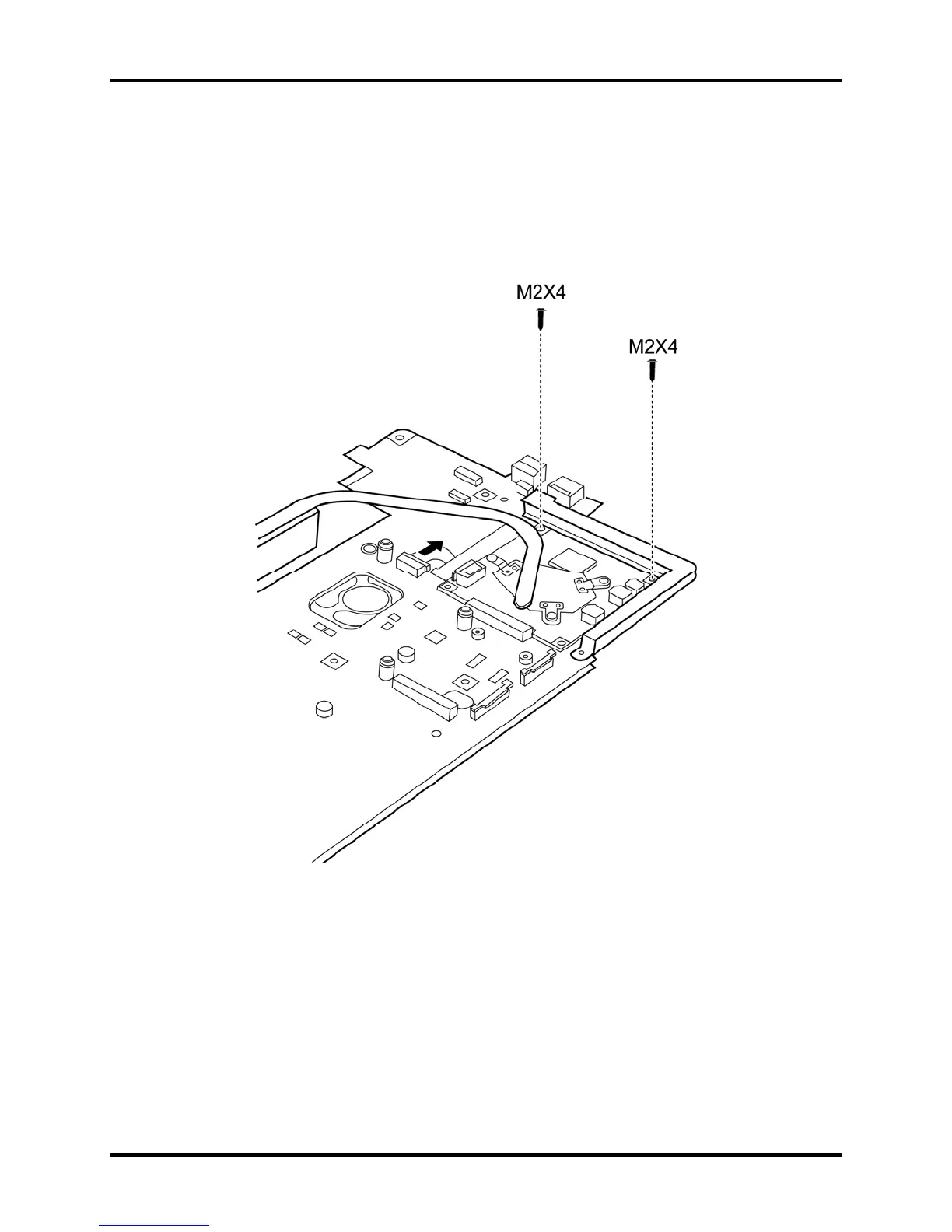

Figure 4-29 Removing the CPU cooling module and fan
6. Remove three M2x4 screws from 3 to 1.
Qosmio X300 Maintenance Manual 4-49
