Toshiba Qosmio X300 - 2.16 7 in 1 card Troubleshooting

432 Troubleshooting Procedures
QOSMIO X300 Series Maintenance Manual
43
2.16 7in 1 card Troubleshooting
START
Do errors occur during 7
IN 1 CARD test?
Perform 7 IN 1 card socket
replacement check
(Procedure 2)
Replace system board
END
7 IN 1 unit is not
faulty.
Perform 7 in 1 CARD test
(Procedure 1)
No
Yes

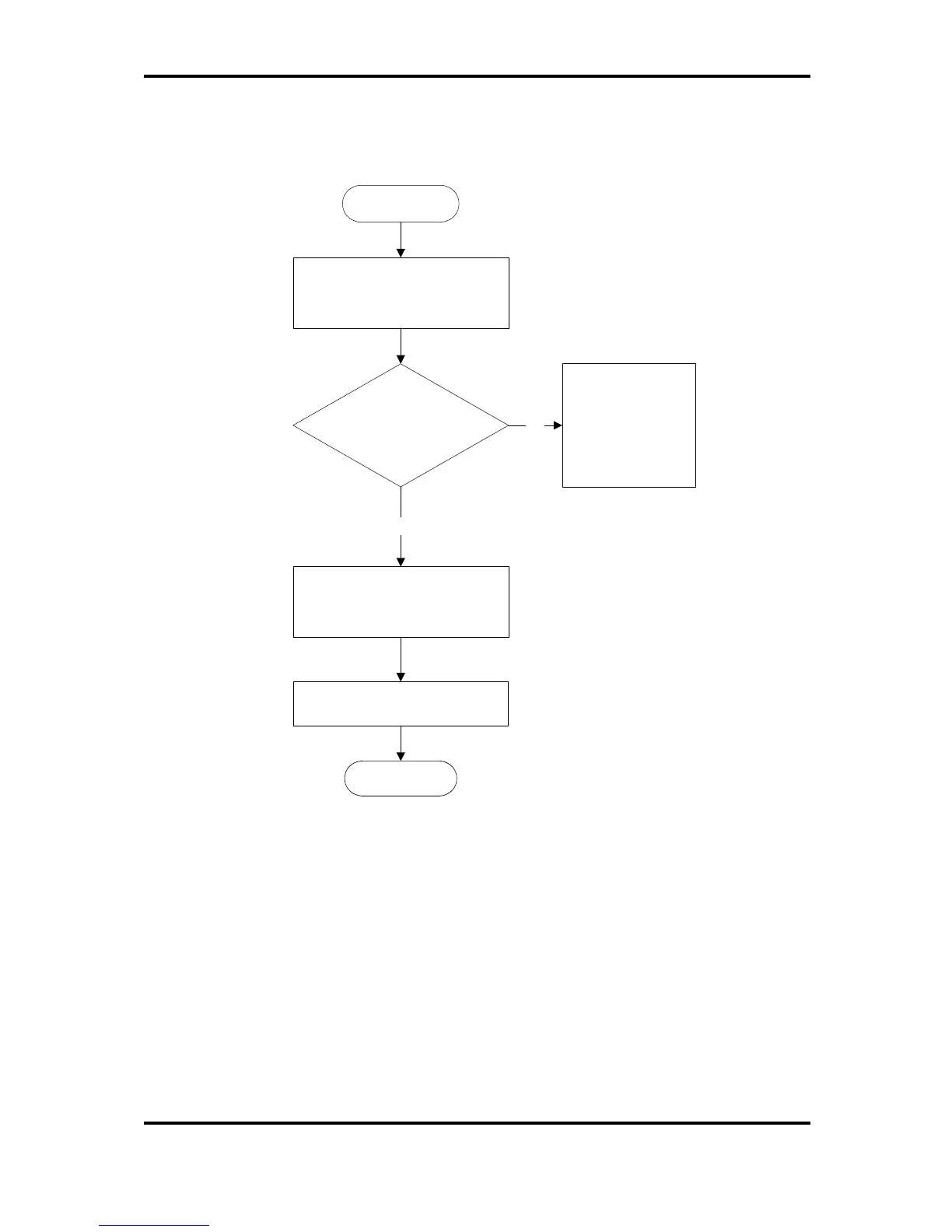

Figure 2-16 7 in 1 card troubleshooting process
