4.12 DC-in jack
Removing the DC-in jack according to the following procedures and Figure 4-19.
1. Put right hand to touch the rib on the wall of the bottom case wall.
2. Put left hand to hold DC-in jack on 2 sides (inside and outside).
3. Push wall of bottom case by right hand (1) and rotate DC-in jack to apart by left hand (2).

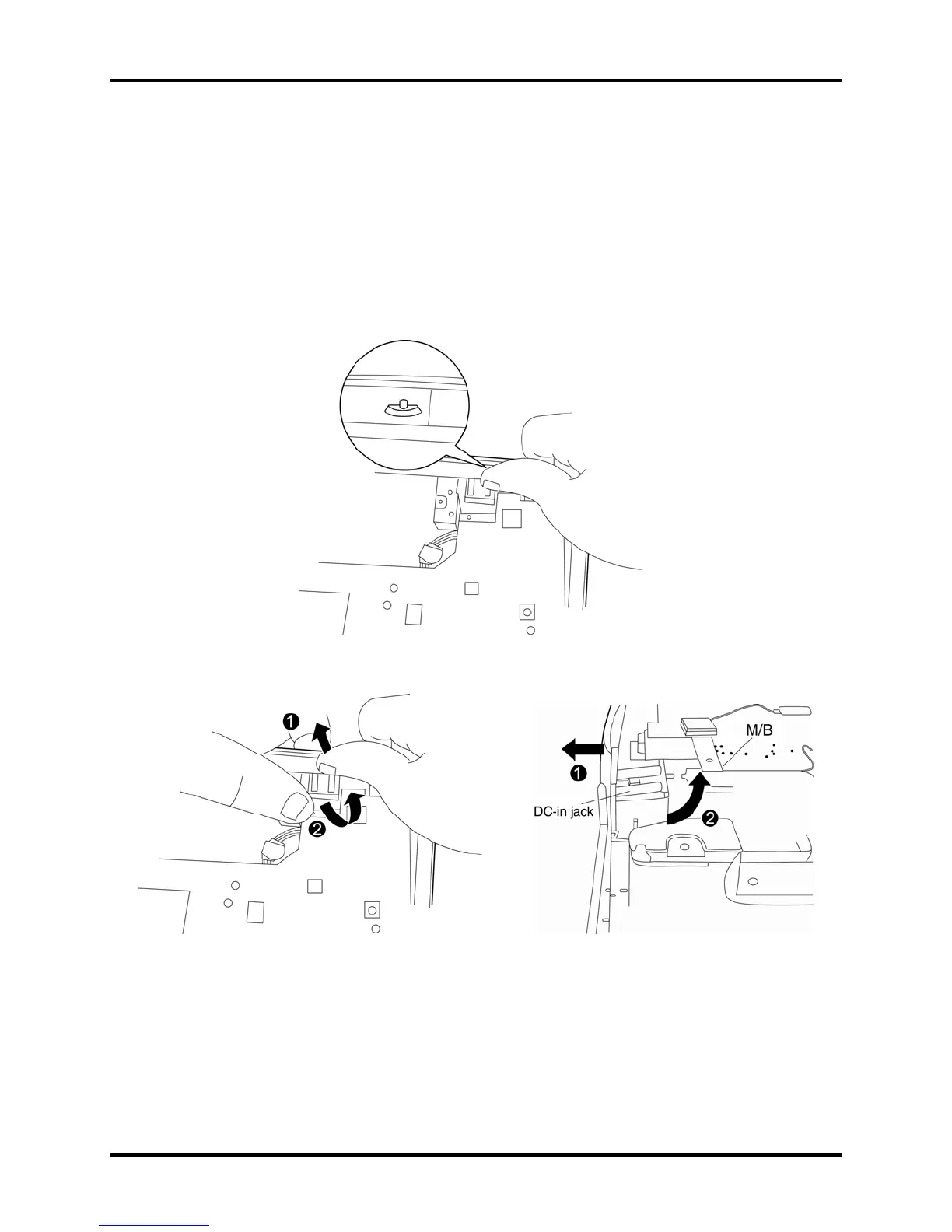

Figure 4-19 Removing the DC-in jack
Qosmio X300 Maintenance Manual 4-35
