Error! Style not defined. Error! Style not defined. 4 Replacement Procedures
4.17 MDC Module & System Board
Removing the System Board
Remove the MDC Module and System Board according to the following procedures and Figure
4-24.
1. Remove two M2.5x4 screws securing the MDC module.
2. Remove the MDC module.
3. Disconnect six cables attached on the system board.
4. Remove three M2.5x4 screws on the system board.
5. Remove one M2.5x6 screw on the lower hinge cover.
6. Remove the system board.

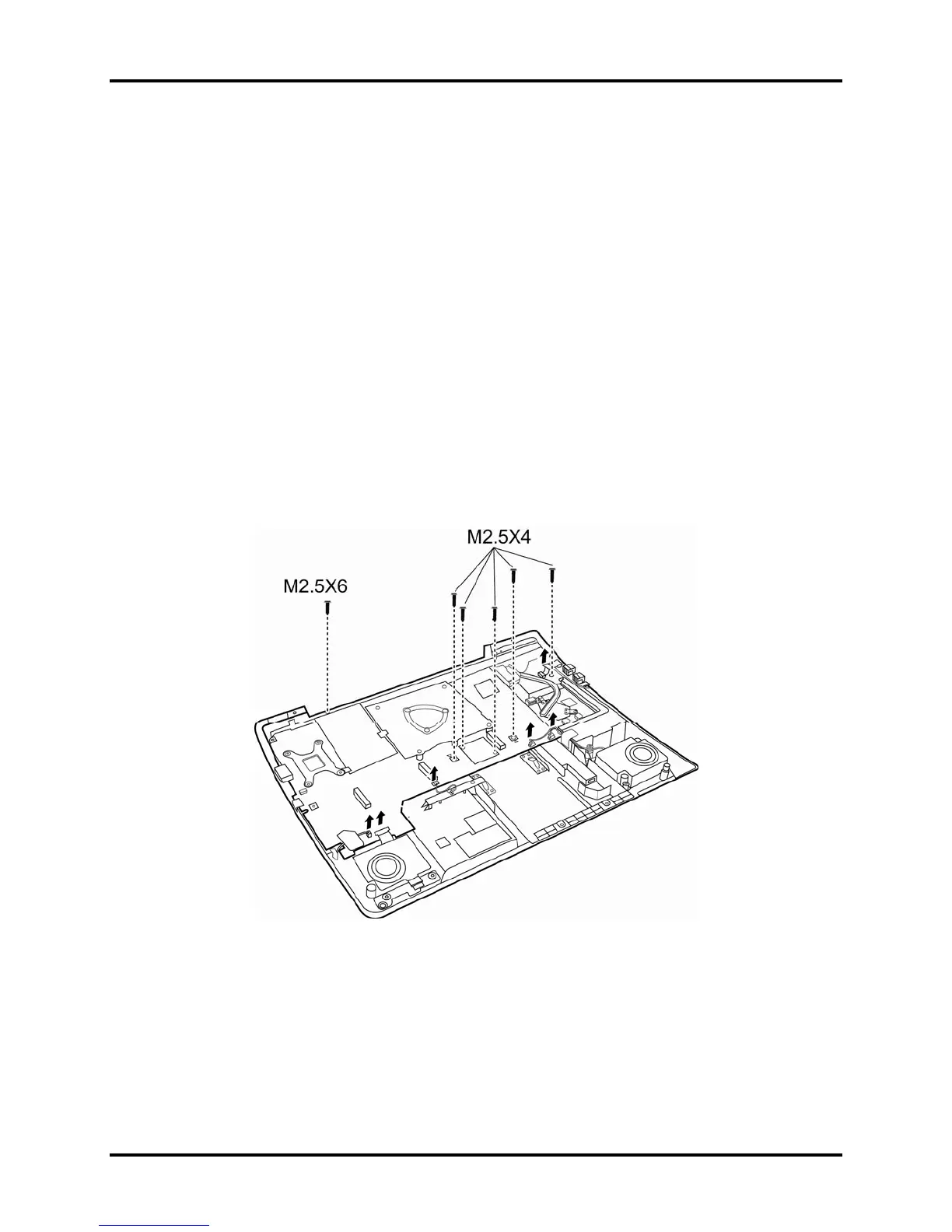

Figure 4-24 Removing the MDC Module and System Board
Qosmio X300 Maintenance Manual 4-43
