4.15 Power Switch
Removing the power switch
Remove the power switch according to the following procedures and Figure 4-22.
1. Release one power switch flat cable from the wire guide.
2. Remove one M2.5x4 screw from the power board.
3. Separate the power board from the top cover.

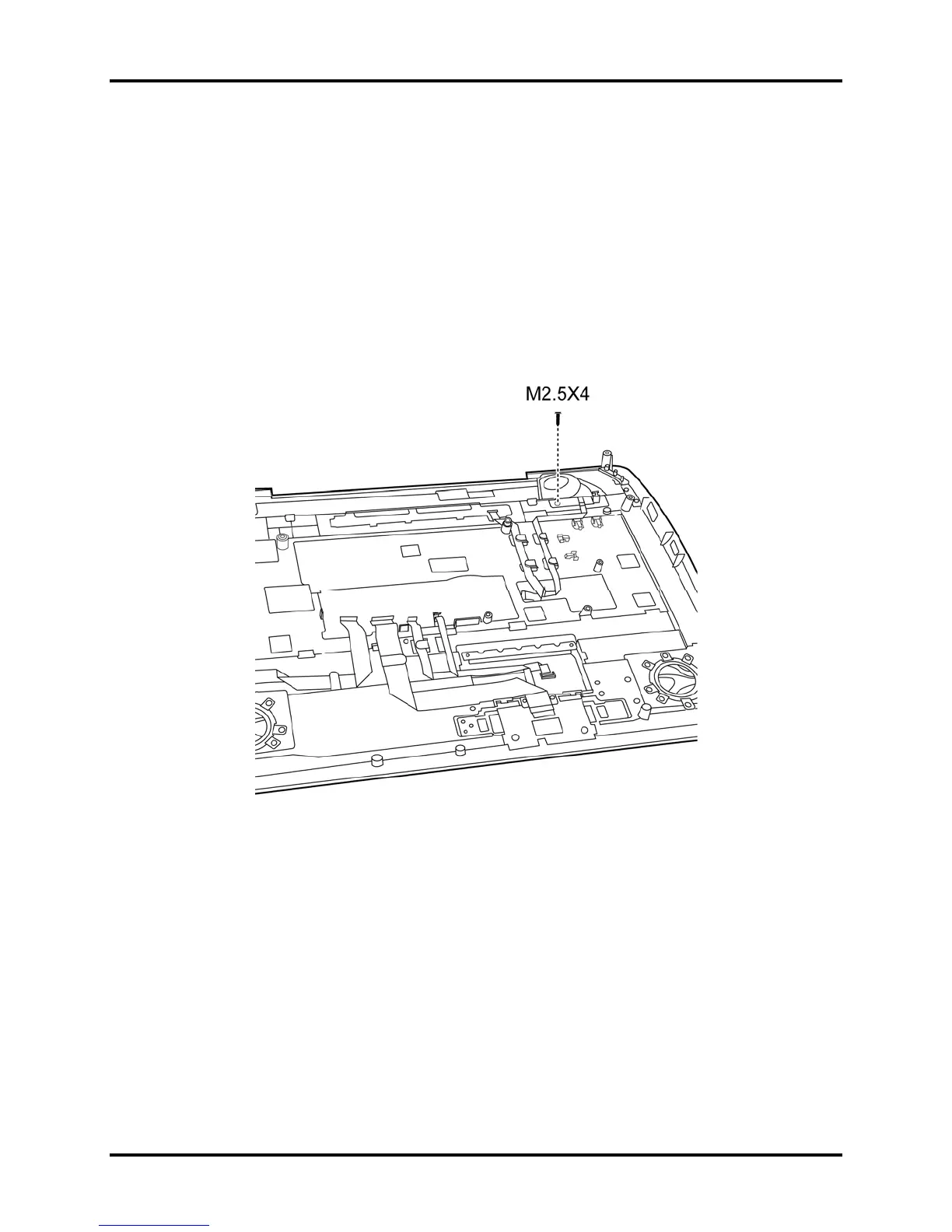

Figure 4-22 Removing the power switch board
Installing the power switch board
Install the power switch according to the following procedures and Figure 4-22.
1. Seat the power switch board in the correct place on top cover.
2. Secure the board with one M2.5x4 screw.
3. Put the power switch board flat cable in the wire guide.
Qosmio X300 Maintenance Manual 4-40
