4.26 CCD Board, MIC and Antenna
Removing the CCD Board, MIC and Antenna
Remove the CCD Board, MIC and Antenna according to the following procedures and Figure
4-40.
1. Disconnect the CCD cable from the CCD module connector and remove the CCD board.

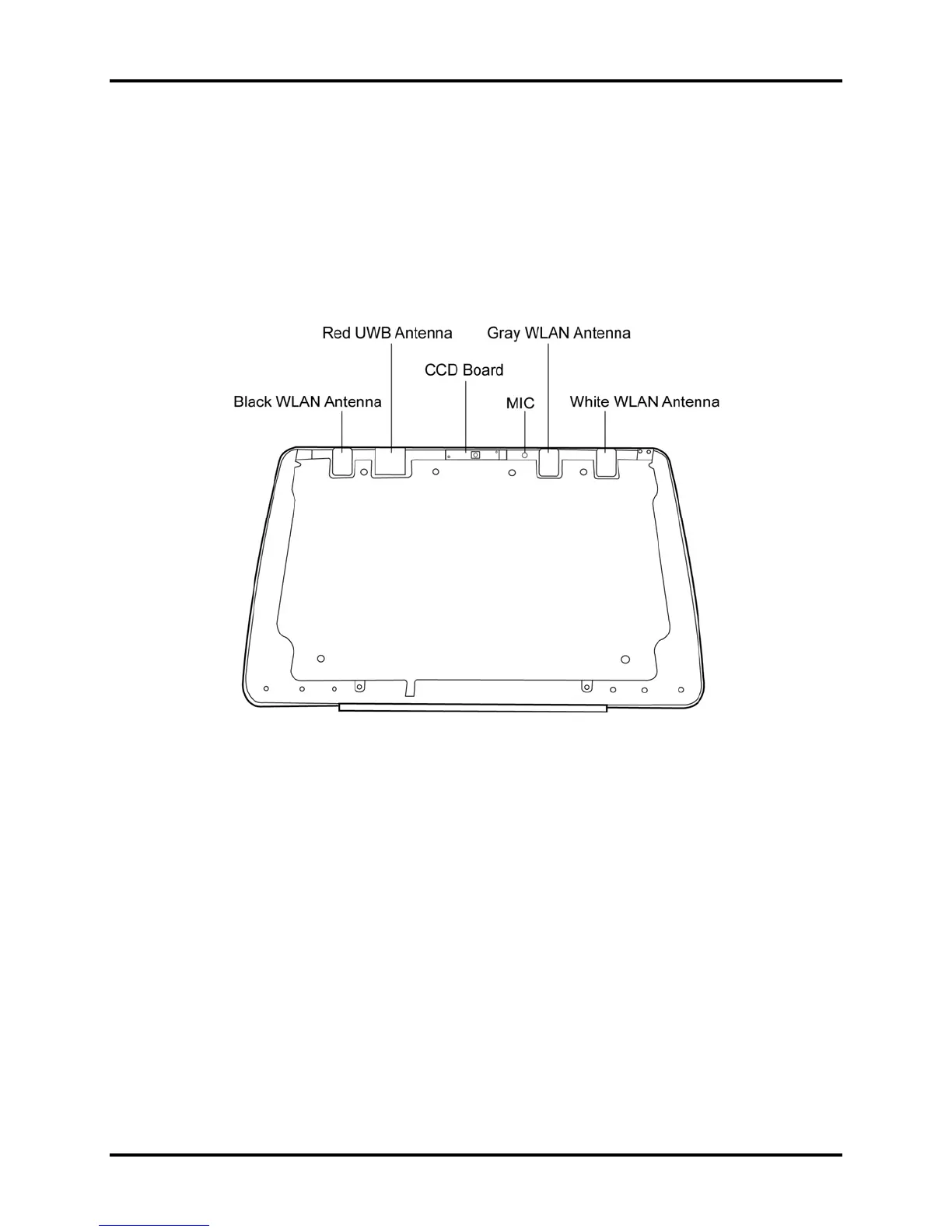

Figure 4-40 Removing the CCD board and MIC
2. Lift the MIC and antenna cable from the display rear cover.
Installing the CCD Board, MIC and Antenna
Install the CCD Board, MIC and Antenna according to the following procedures and Figure 4-40.
1. Connect the CCD module cable to CCD module connector.
2. Seat the CCD module, MIC and antenna in the correct position.
Qosmio X300 Maintenance Manual 4-61
