4 Replacement Procedures 4.16 DC-IN HARNESS/RJ45 WIRE HARNESS

4.16 DC-IN HARNESS/RJ45 WIRE HARNESS

Removing the DC-IN HARNESS/RJ45 WIRE HARNESS

To remove the DC-IN HARNESS/RJ45 WIRE HARNESS, follow the steps below and refer to

Figure 4-21 to 4-23.

1. Disconnect the DC-IN HARNESS from the connector CN8800 on the system board.

2. Remove the DC-IN HARNESS from the slot.

IDC-IN HARNESS

CN8800

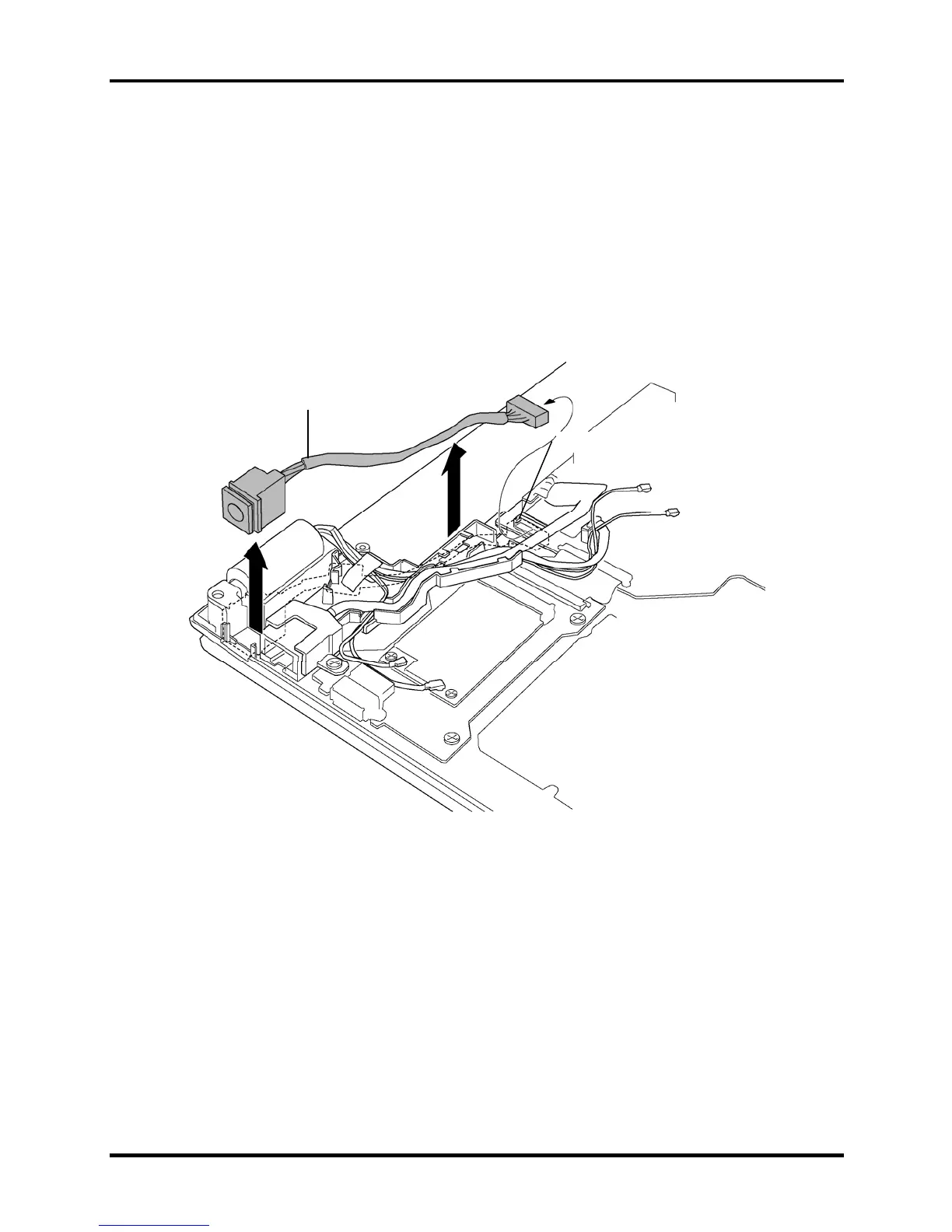

Figure 4-21 Removing the DC-IN HARNESS/RJ45 WIRE HARNESS (1)

4-38 [CONFIDENTIAL] TECRA R10 Maintenance Manual (960-708)
