E6581528
F-10
6

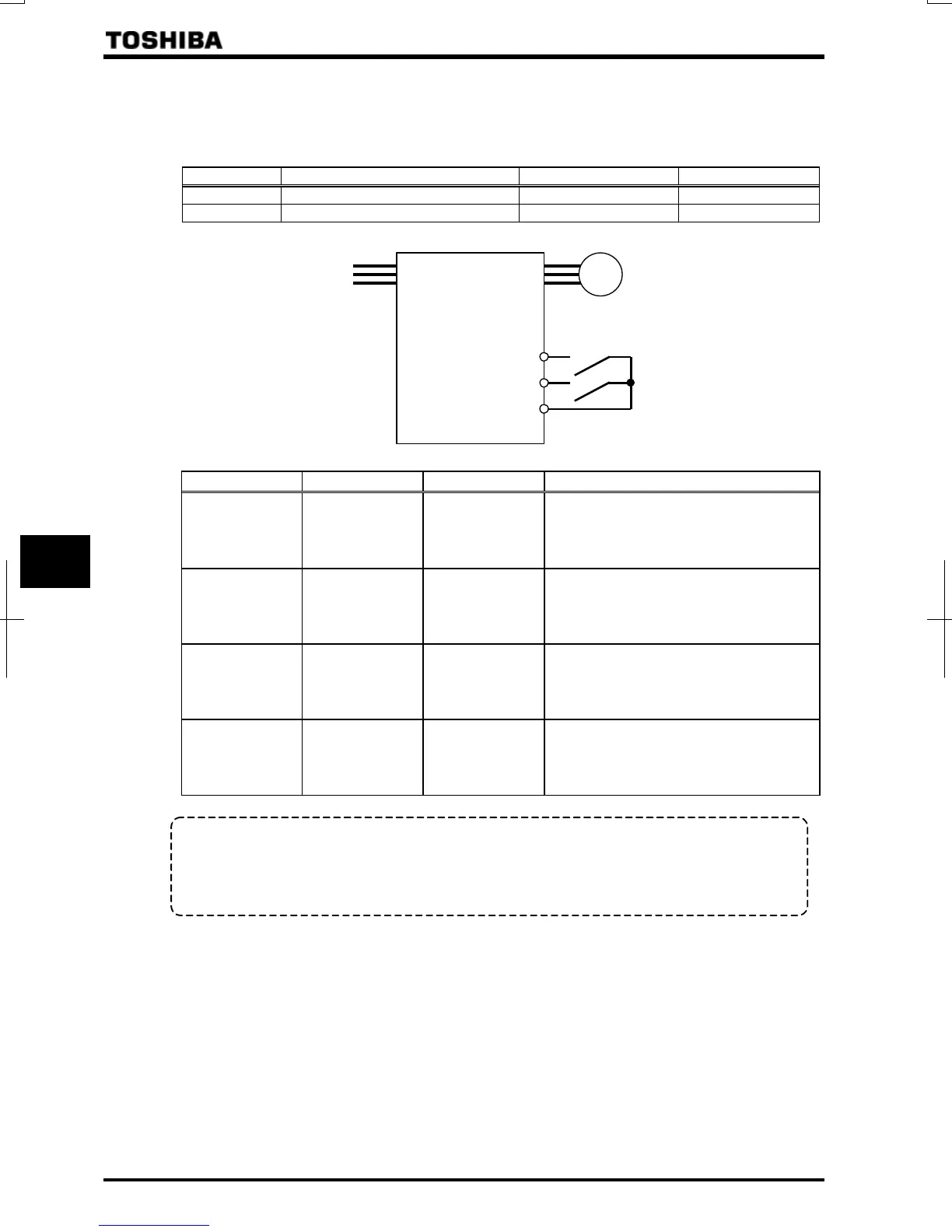

Setting of switching terminals
The V/f1, V/f2, V/f3 and V/f4 switching function is not yet assigned to any terminal. Therefore, it is necessary to
assign them to unused terminals.
Ex.) Assigning the V/f switching 1 function to S1 and the V/f switching 2 function to S2.
Title Function Adjustment range Example of setting
 Input terminal function selection 5 (S1) ~  (V/f switching 1)
 Input terminal function selection 6 (S2) ~  (V/f switching 2)
S1: V/f switching 1
S2: V/f switching 2
CC
M
S1-CC S2-CC V/f Parameters selected
OFF OFF 1
Base frequency 1 : 
Base frequency voltage 1 : 
Manual torque boost 1 : 
Thermal protection 1 : 
ON OFF 2
Base frequency 2 : 
Base frequency voltage 2 : 
Manual torque boost 2 : 
Thermal protection 2 : 
OFF ON 3
Base frequency 3 : 
Base frequency voltage 3 : 
Manual torque boost 3 : 
Thermal protection 3 : 
ON ON 4
Base frequency 4 : 
Base frequency voltage 4 : 
Manual torque boost 4 : 
Thermal protection 4 : 
+
Select V/f1 when using the vector control and the V/f-5 point setting.
Selecting V/f2,.V/f3, or V/f4 disables vector control but enables the V/f constant control.
+
By using “My function,” torque limits and acceleration/deceleration modes can be switched along with V/f
switching.
Note: With the operation panel or communication, the panel acceleration/deceleration selection () can be set.
* This function is active only in operation panel operation mode.
