E6581528
A-9
1

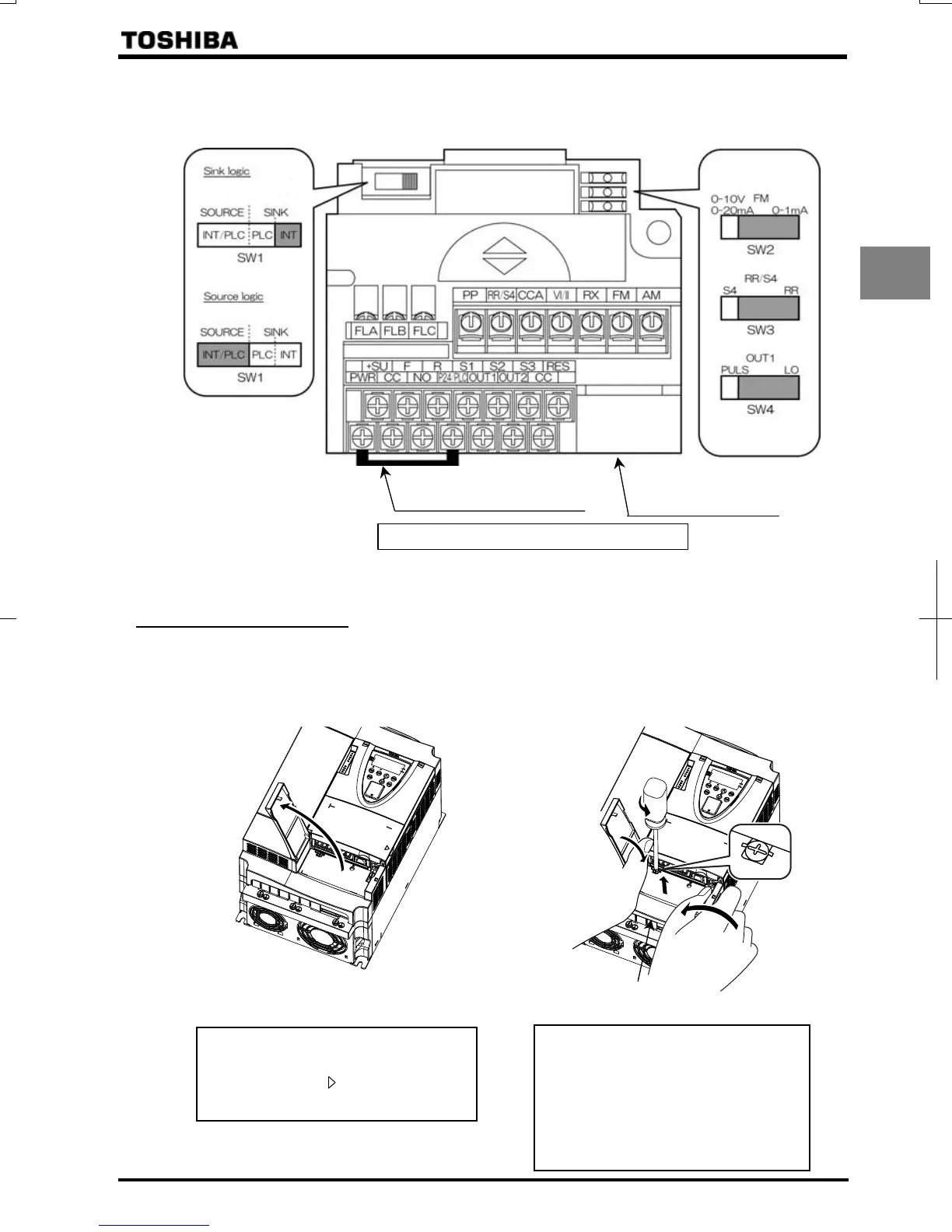

3) Control circuit terminal block
The control circuit terminal block is common to all equipment.
PWR-P24/PLC Shorting bar
Control circuit terminal block screw size: M3
Serial 4-wire RS485
connector
(VFAS1-
*****
-WN,HN)
⇒ For details on all terminal functions, refer to Section 2.3.2.
1.4.2 Detaching the cover
Main circuit terminal cover
To wire the main circuit terminal for models VFAS1-5015PM to 5075PM, remove the main circuit terminal cover in
line with the steps given below.
(A) (B)
(1)
(2)
90°
Main circuit terminal
Open the main circuit terminal cover.
* To open the cover, lift it with your finger
placed at the part on the right side of
the cover.
Remove the main circuit terminal cover.
* Turn the screw securing the cover
counterclockwise by 90° to release the
lock (do not turn the screw by more than
90°. Or the screw might be broken.), and
then hold the cover by both ends and pull
the cover up, slightly bending it inward.
To Next Page
