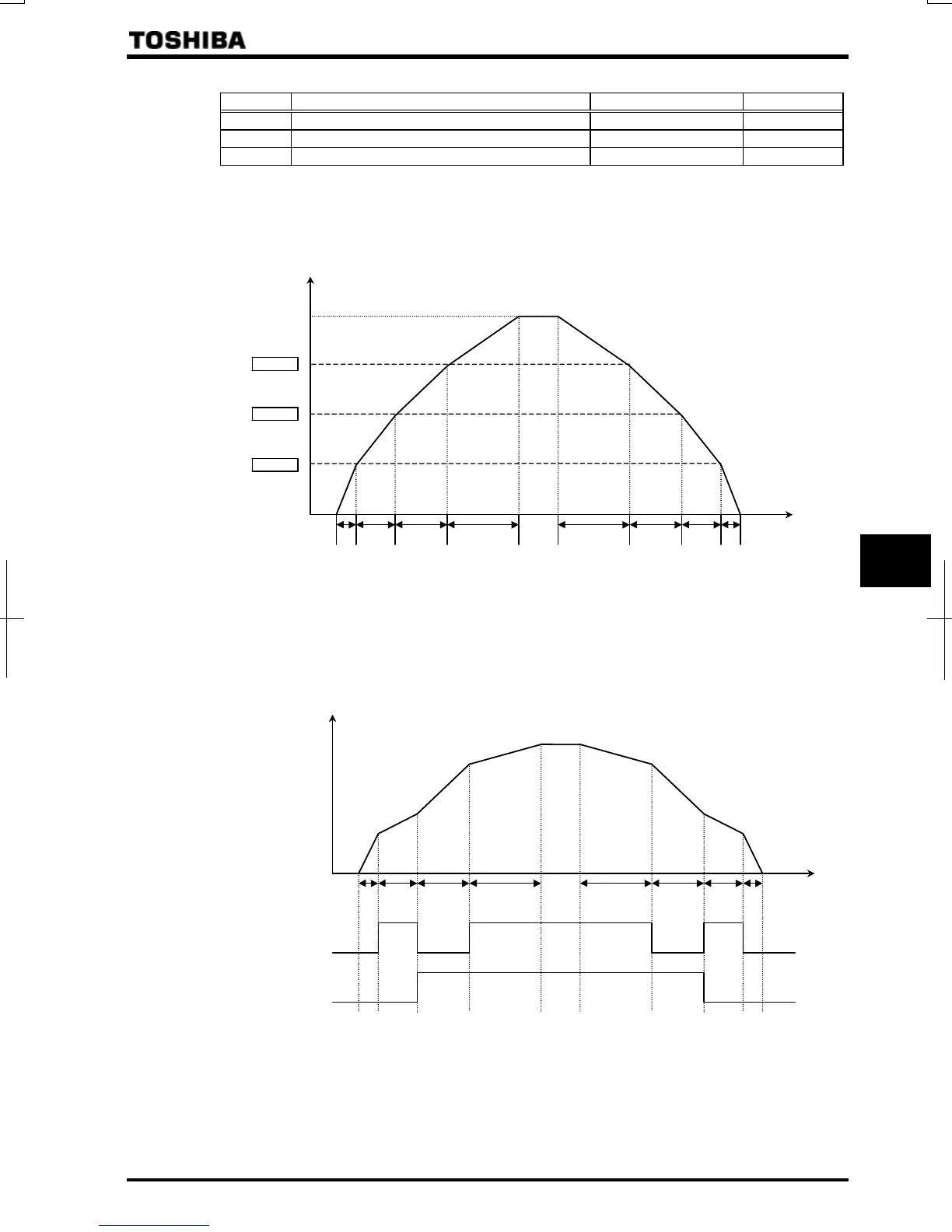

2) Switching by frequencies - Automatically switching acc/dec times at certain frequencies
Title Function Adjustment range Default setting
Acceleration/deceleration switching frequency 1 ~ Hz
Acceleration/deceleration switching frequency 2 ~ Hz
Acceleration/deceleration switching frequency 3 ~ Hz
Note: Regardless of the sequence of input of frequencies, acc/dec times are switched from 1 to 2 at the lowest
frequency, from 2 to 3 at the middle frequency and from 3 to 4 at the highest frequency. (For example, if the
frequency set with is higher than that set with , the acc/dec time 1 is selected in the
frequency range below the -set frequency, while the acc/dec time 2 is selected in the frequency range
of the -set frequency to the -set frequency.)
(5) Deceleration at the gradient corresponding to
deceleration time
(6) Deceleration at the gradient corresponding to
deceleration time
(7) Deceleration at the gradient corresponding to
deceleration time
(8) Deceleration at the gradient corresponding to
deceleration time
Output frequency [Hz]
(4)(1)
(2) (3) (5) (6) (7) (8)
Time [s]0
Set frequency
(1) Acceleration at the gradient corresponding to
acceleration time
(2) Acceleration at the gradient corresponding to
acceleration time
(3) Acceleration at the gradient corresponding to
acceleration time
(4) Acceleration at the gradient corresponding to
acceleration time
3) Switching using external terminals - Switching the acceleration/deceleration time via external terminals
(5) Deceleration at the gradient corresponding
to deceleration time
(6) Deceleration at the gradient corresponding
to deceleration time
(7) Deceleration at the gradient corresponding
to deceleration time
(8) Deceleration at the gradient corresponding
to deceleration time
Output frequency [Hz]
(4)(1)
(2) (3) (5) (6) (7) (8)
Acceleration/deceleration
switching signal 1
Acceleration/deceleration
switching signal 2
Time [s]
0
(1) Acceleration at the gradient corresponding
to acceleration time
(2) Acceleration at the gradient corresponding
to acceleration time
(3) Acceleration at the gradient corresponding
to acceleration time
(4) Acceleration at the gradient corresponding
to acceleration time
