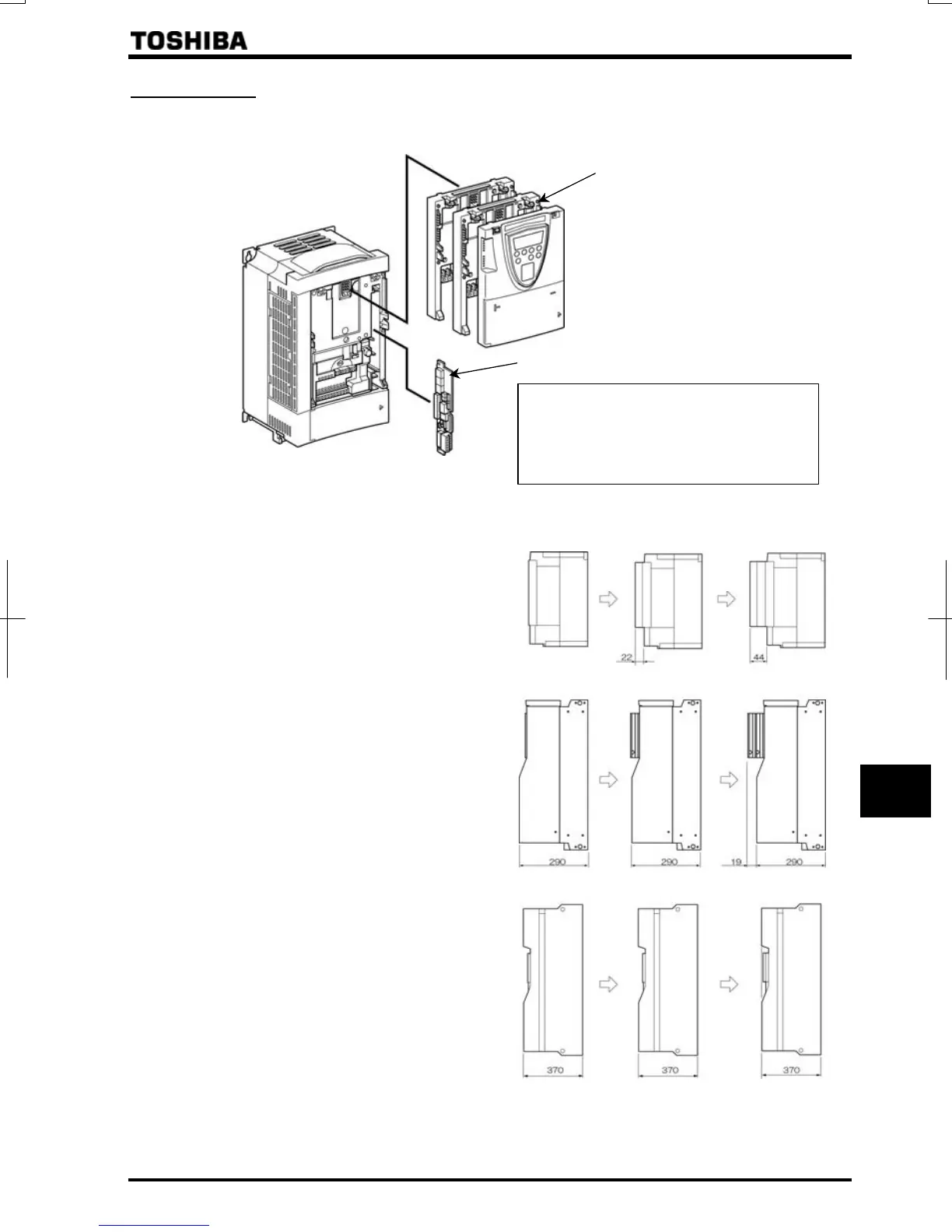

How to install
Add-on type devices and insertion type devices are installed in different ways. Install them correctly, as shown in the
figures below.
Add-on type
Plug-in type
Up to two Add-on type devices and one Plug-in type
device can be installed at the same time. Note,
however, that two identical optional devices and two
identical optional communication devices cannot be
connected and used.
Depending on the capacity, the installation of an Add-on type device may increase the depth of the inverter.
VFAS1-5015PM~5075PM
VFAS1-6022PL~6300PL
VFAS1-6370PL~6900PL
VFAS1-6110KPC~6630KPC
Note: The inverters of these
capacities come equipped with
an Add-on type option case as
standard. When installing an
optional Add-on type device,
remove the case.
Standard type
+
one Add-on
Standard type
Standard type
+
two Add-on
To Next Page
