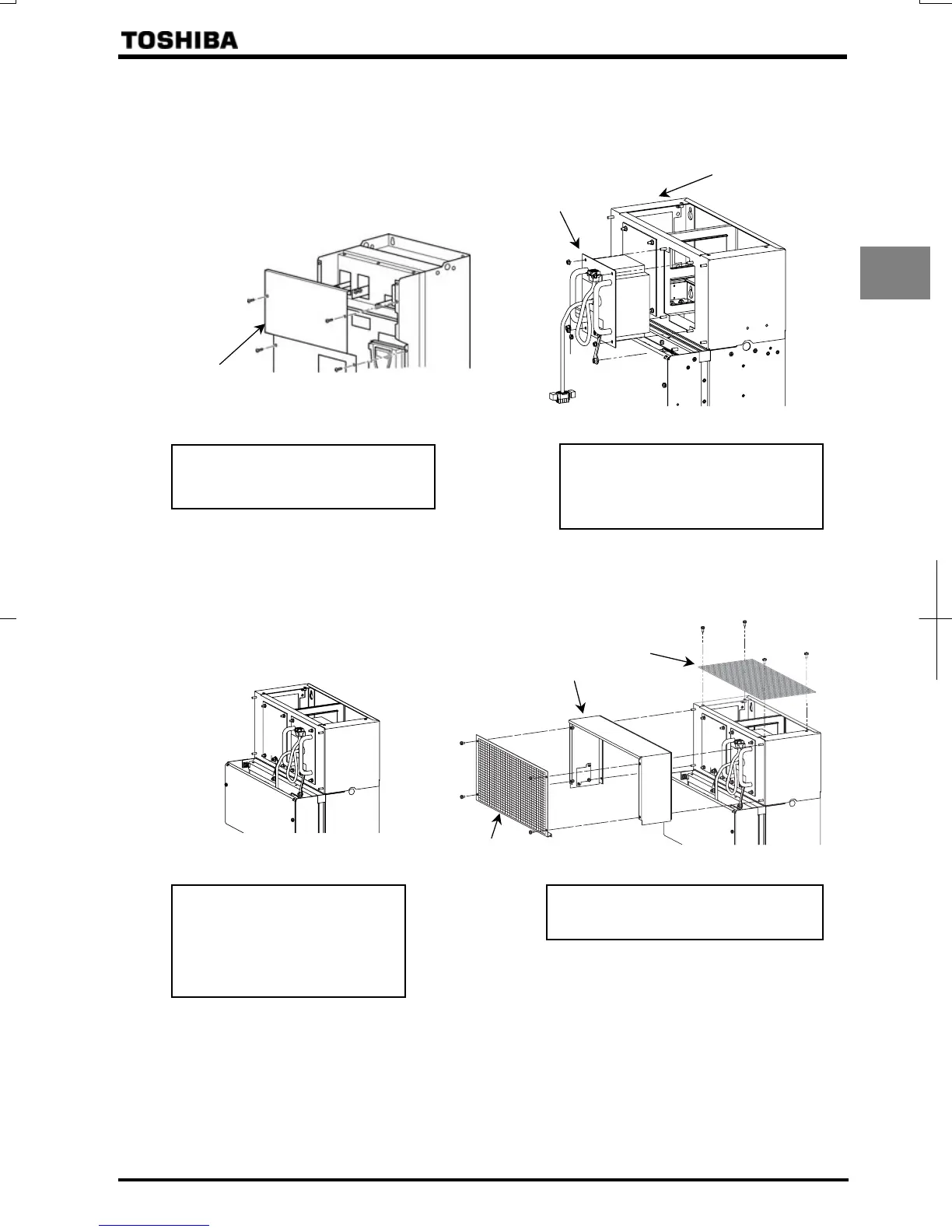

 How to install (Example:VFAS1-6200KPC)
(1) (2)
Transformer
Transformer case
Front cover
(3) (4)
Cover
Front panel
Top panel
Remove the front cover.
Mount the transformer case on an inner
wall of the cabinet and secure the
transformer to the case with screws.
C
onnect the transformer connector
o
n the drive. Then connect the
s
upplied earth wire.
⇒
See the figures on the next page.
F
ix the front cover afte
r
connecting.
Secure the cover, front panel and top panel
to the transformer case with screws.
