E6581528
E-19
5

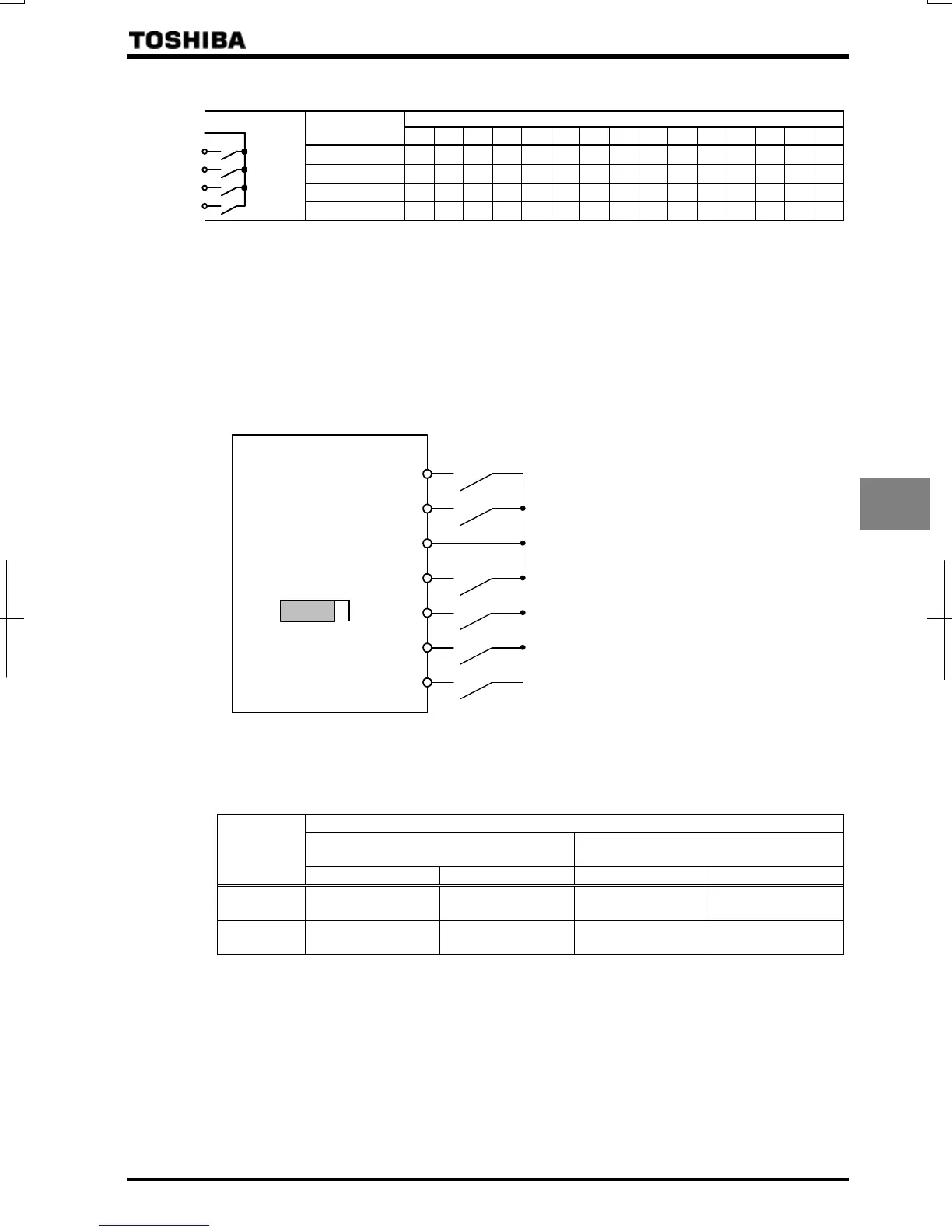

Example of preset speed contact input signal
{: ON –: OFF (Speed commands other than preset speed commands are valid when all are OFF)
Preset speed
Terminal
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
S1-CC
{
–
{
–
{
–
{
–
{
–
{
–
{
–
{
S2-CC –
{ {
––
{ {
––
{ {
– –
{
{
S3-CC – – –
{ { { {
––––
{
{
{
{
RR/S4-CC – – – – – – –
{ { { { {
{
{
{
Terminal functions are as follows. (Default setting)
Terminal S1 ··············· Input terminal function selection 5 (S1) = (S1)
Terminal S2 ··············· Input terminal function selection 6 (S2) = (S2)
Terminal S3 ··············· Input terminal function selection 7 (S3) = (S3)
Terminal RR/S4
········
Input terminal function selection 8 (S4) = (S4)
The RR/S4 terminal is set by default as an analog voltage input terminal. To use it as an input terminal for preset
speed operation, turn the SW3 switch to the S4 position.
[An example of the connection of terminals]
F (Forward run)
CC
RR/S4
S2
S3
S1
R (Reverse run)
Forward
Reverse
Preset speed command 1
Preset speed command 2
Preset speed command 3
Preset speed command 4
SW3
S4 RR
3) Using other speed commands with preset speed command
When no preset speed command is issued, the inverter accepts an input command from the operation panel or
another analog input device.
Other speed commands
Frequency setting signals from the operation
panel
Analog signal input command
(VI/II, RR/S4, RX, AI1 and AI2)
Preset
speed
command
Entered Not entered Entered Not entered
Entered
Preset speed
command valid
Preset speed
command valid
Preset speed
command valid
Preset speed
command valid
Not painted
Operation panel
command valid
– Analog signal valid –
The preset speed command is always given priority when other speed commands are input at the same time.
To use the RR/S4 terminal as an analog input terminal, turn the SW4 switch to the RR position. Note that this
makes it impossible to use the function assigned to S4.
CC
S2
S3
RR/S4
S1
