TP-Link EAP110 User Manual

81

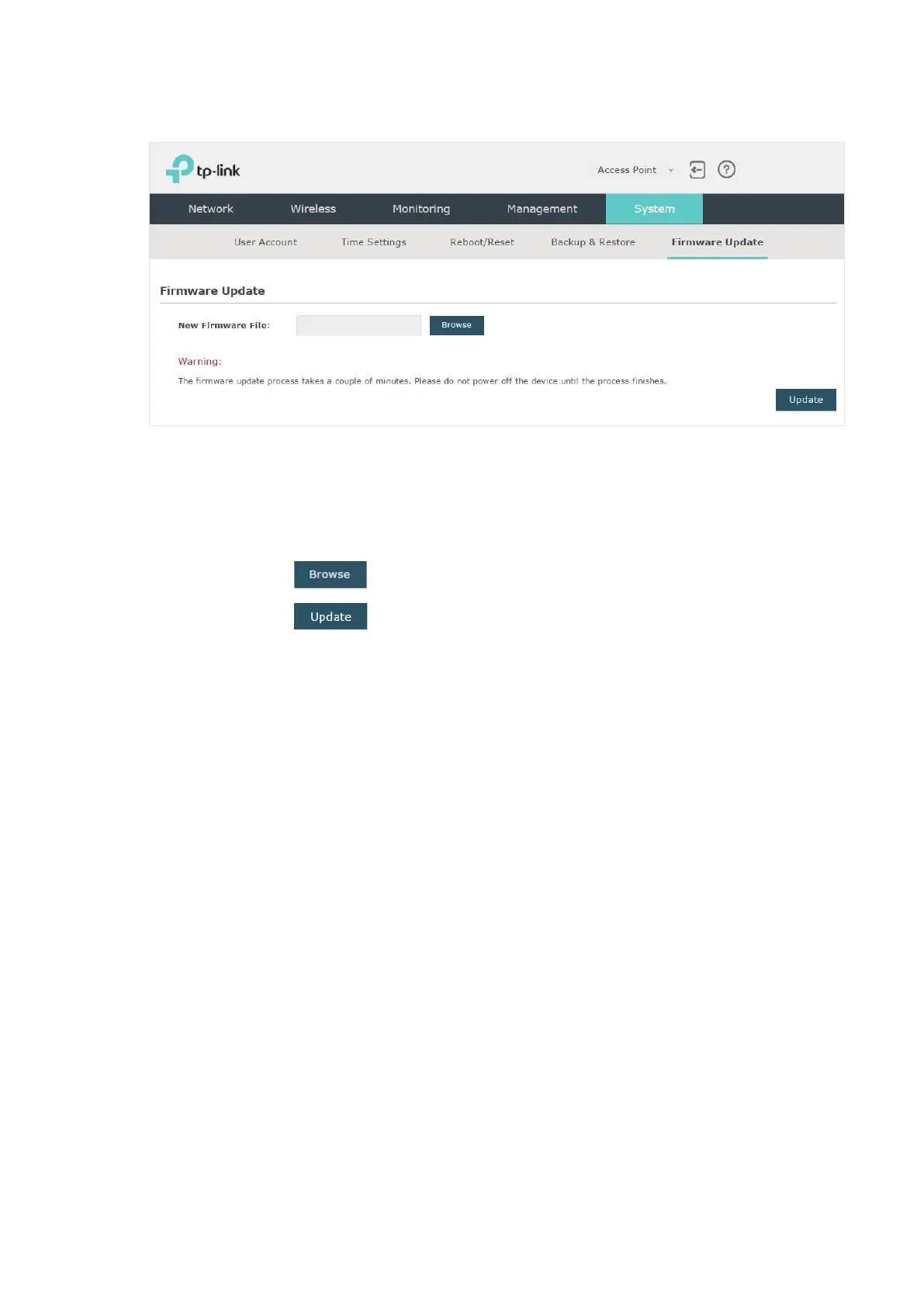

To update the firmware, go to the System > Firmware Update page.
Follow the steps below to update the firmware of your EAP:
1. Go to our website
www.tp-link.com and search your EAP model. Download the proper
firmware file on the support page of the EAP.
2. Click the button
, locate and choose the correct firmware file from your host.
3. Click the button
to update the firmware of the EAP. After updated, the EAP will
be rebooted automatically.
Note:
The update process takes several minutes. To avoid damage to the EAP, please wait without any
operation until the update is finished.

TP-Link EAP110 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	No
Certification	CE, FCC, RoHS
Product color	White
Cable lock slot type	Kensington
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Microsoft Windows 8, 7, Vista, XP
Input current	1 A
AC input voltage	24 V
Power consumption (typical)	7.7 W
Antenna features	Integrated antenna
Antennas quantity	2
Antenna direction type	Omni-directional
Antenna gain level (max)	3 dBi

Weight and Dimensions

Width	180 mm
Height	47.5 mm
