TD-8811 ADSL2+ Modem Router User Guide
11

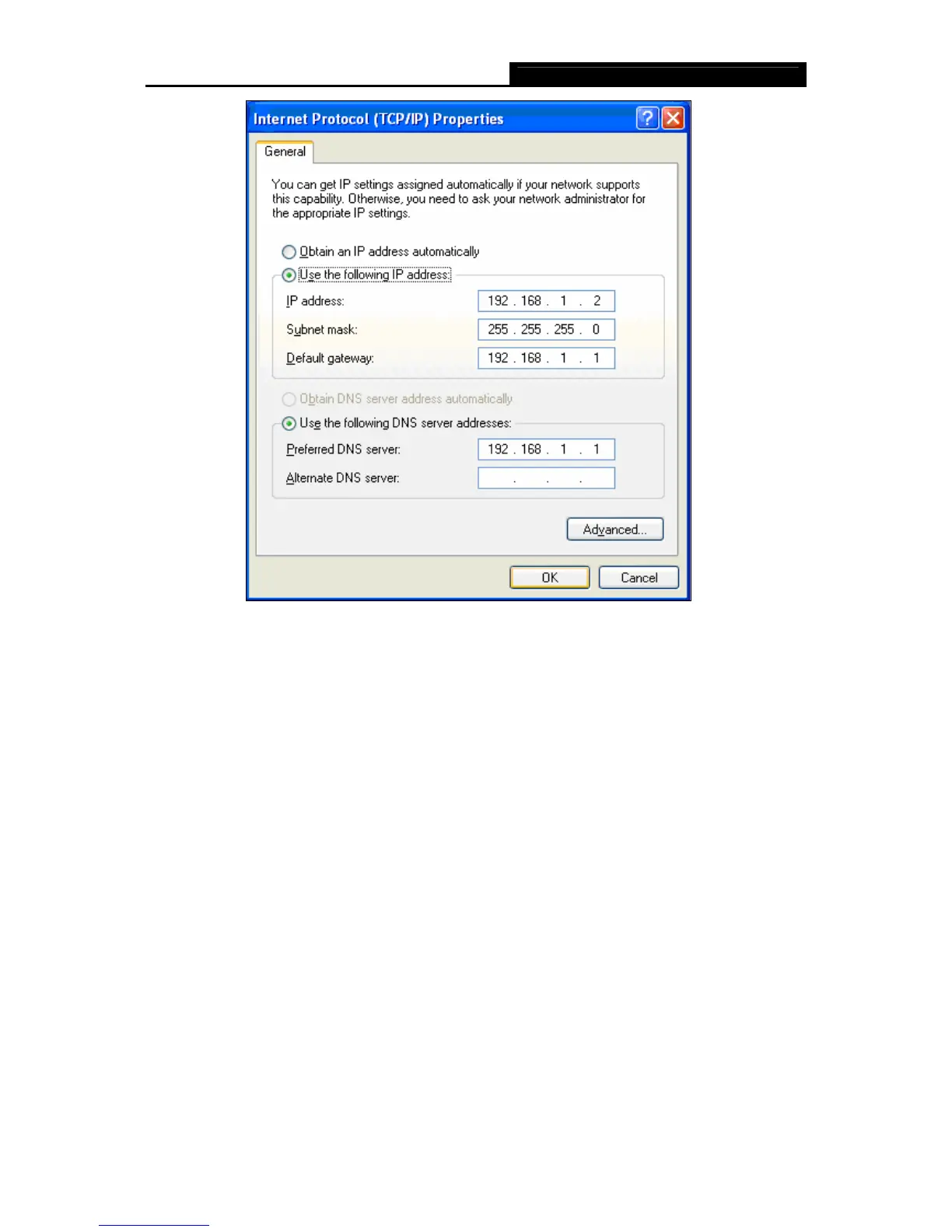

Figure 3-5
)
Note:
1) Users of Windows 98 can open TCP/IP Properties according to the following: Right-click
(Mouse) Network Neighbor Æ Choose Properties -Æ Double-click TCP/IP.
2) Users of Windows 2000/NT/XP can do the following: Right-click Network Neighbor Æ
Choose Properties Æ Right-click Local Connection Æ Choose Properties Æ Double-click
Internet Protocol (TCP/IP).
3) The words in fact may be different with this guide.
Now, you can run the Ping command in the command prompt to verify the network connection.
Please click the Start menu on your desktop, select Run tab, type cmd in the field, and then
type ping 192.168.1.1 on the next screen, and then press Enter.
If the screen looks like the following, you have been successful.

TP-Link TD-8811 Specifications

General

Connectivity LEDs	Yes
Dimensions (WxDxH)	165 x 108 x 28 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
Networking standards	IEEE 802.1d
Ethernet LAN data rates	10, 100 Mbit/s
Routing protocols	IP
Supported network protocols	PPPoE, RFC 2364
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5
Ethernet LAN (RJ-45) ports	1
Firewall security	Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall
Security algorithms	802.1x RADIUS
Filtering description	Domain
Product color	Black, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	4.1 W

Weight and Dimensions

Weight	300 g
