TD-8811 ADSL2+ Modem Router User Guide
49

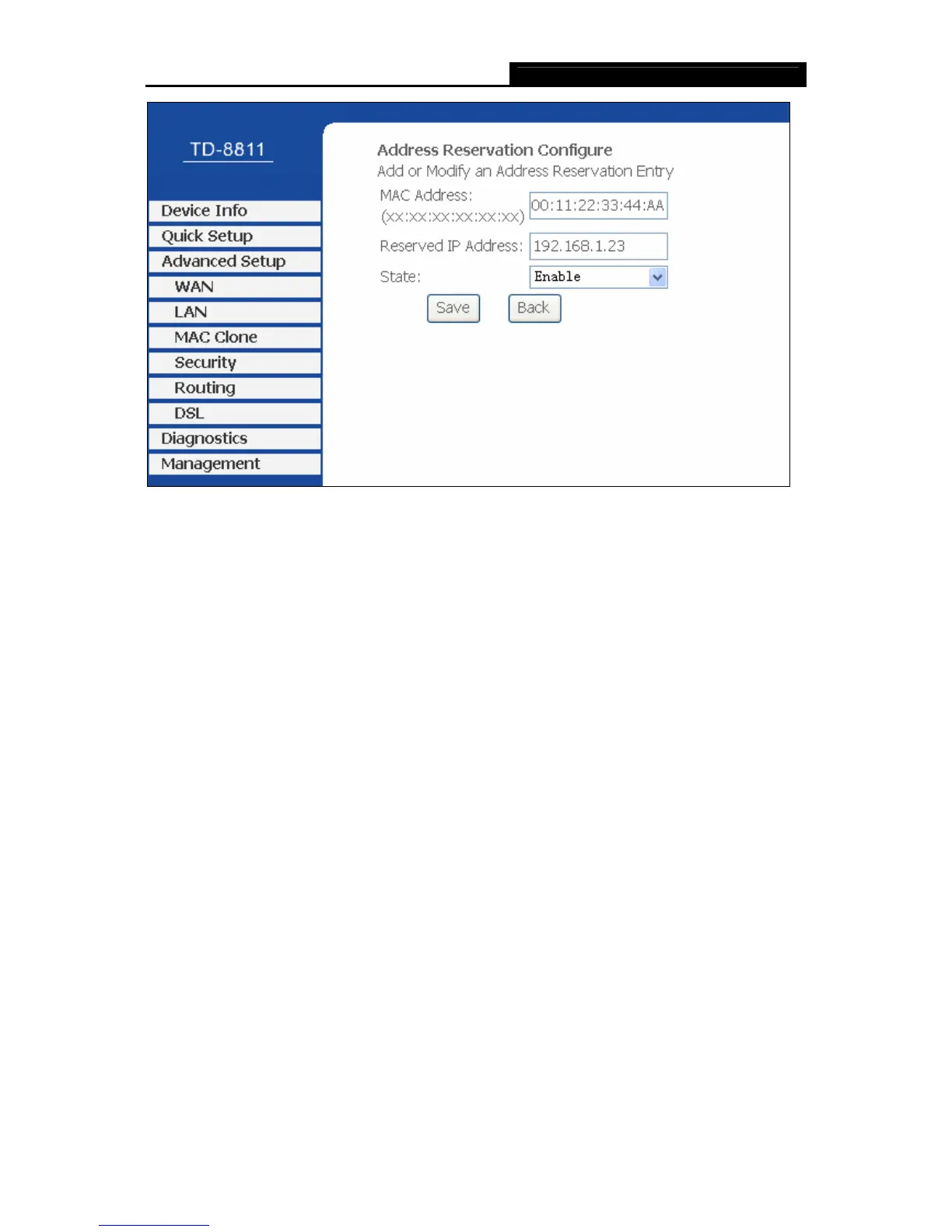

Figure 4-23
3. Enter the MAC address in XX:XX:XX:XX:XX:XX format and reserved IP address in
dotted-decimal notation of the computer for which you want to reserve an IP address.
)
Note:
The MAC Address and IP Address added in Figure 4-23 are used for illustrating. They
may be differ
ent to your circs.
4. Select Enable from the State drop-down list.
5. Click the Save button, then you will go back to the Address Reservation screen and
see the new entry as shown in Figure 4-22.
6. C
lick Save/Reboot button to save the settings and reboot the Router.
)
Note:
The function won't take effect until the router reboots.
4.3.3 MAC Clone
Choose “Advanced SetupMAC Clone” menu, you can configure the MAC address of the
WAN on the screen as shown in Figure 4-24.
