TD-8811 ADSL2+ Modem Router User Guide
48
default value is 24 hours.
¾ Set Address Reservation - Click this button, you can view and add a reserved address for
clients via the Address Reservation page as shown in Figure 4-21. When you specify a
reserved IP
address for a PC on the LAN, that PC will always receive the same IP address
each time when it accesses the DHCP server. Reserved IP addresses should be assigned
to servers that require permanent IP settings.
¾ Configure the second IP Address and Subnet Mask for LAN interface - Check this box,
and you can configure a second IP address and subnet mask for the LAN interface.
¾ Save - Clicking this button only saves the LAN configuration data.
¾ Save/Reboot - Clicking this button not only saves the LAN configuration data but also
reboots the Router to make the new configuration take effect.
To Reserve an IP address：

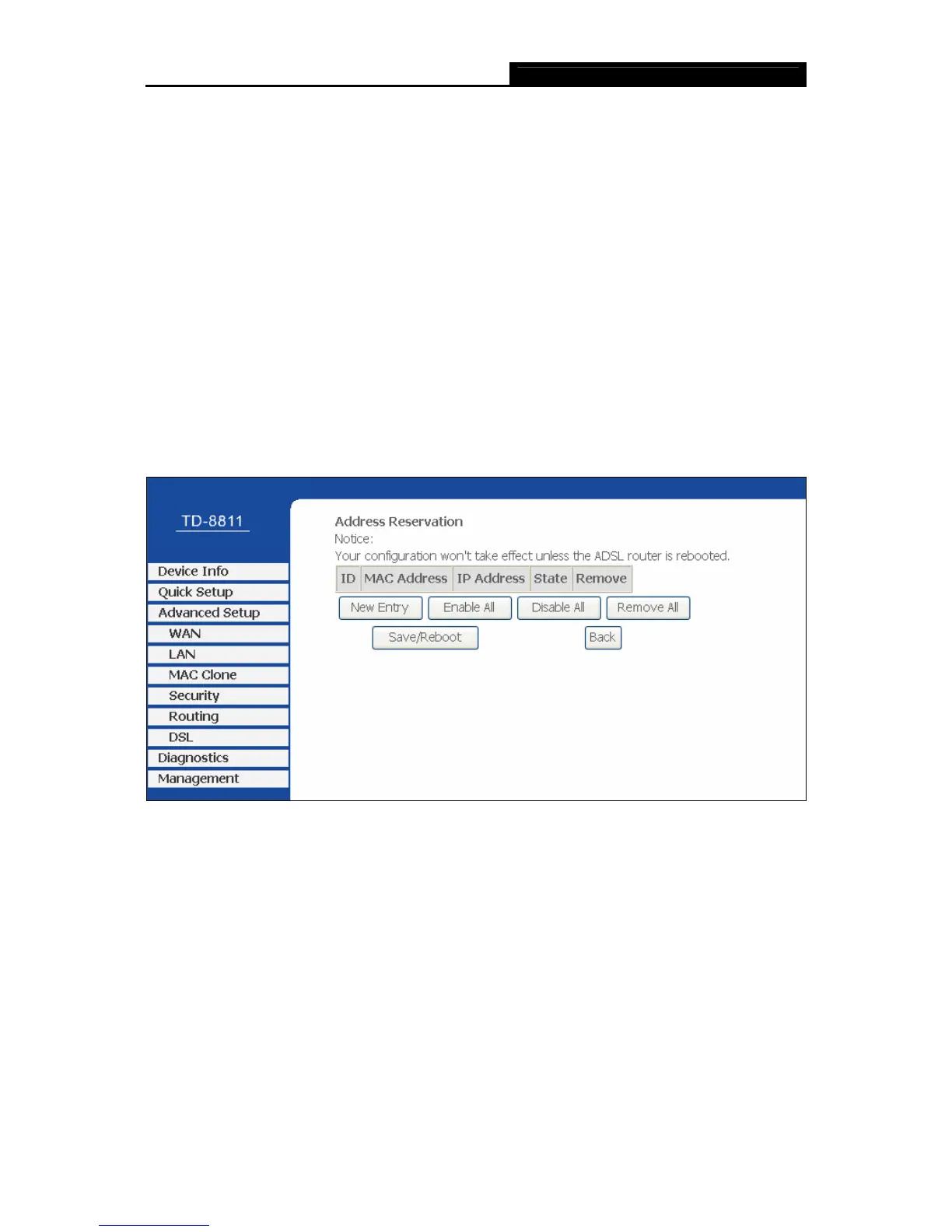

1. Click the Set Address Reservation button shown in Figure 4-21 to enter the screen
as shown in Figure 4-22.
Figure 4-22
2. Click the New Entry button in Figure 4-22. Then Figure 4-23 will pop up.

TP-Link TD-8811 Specifications

General

Connectivity LEDs	Yes
Dimensions (WxDxH)	165 x 108 x 28 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
Networking standards	IEEE 802.1d
Ethernet LAN data rates	10, 100 Mbit/s
Routing protocols	IP
Supported network protocols	PPPoE, RFC 2364
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5
Ethernet LAN (RJ-45) ports	1
Firewall security	Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall
Security algorithms	802.1x RADIUS
Filtering description	Domain
Product color	Black, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	4.1 W

Weight and Dimensions

Weight	300 g
