TD-8811 ADSL2+ Modem Router User Guide
30

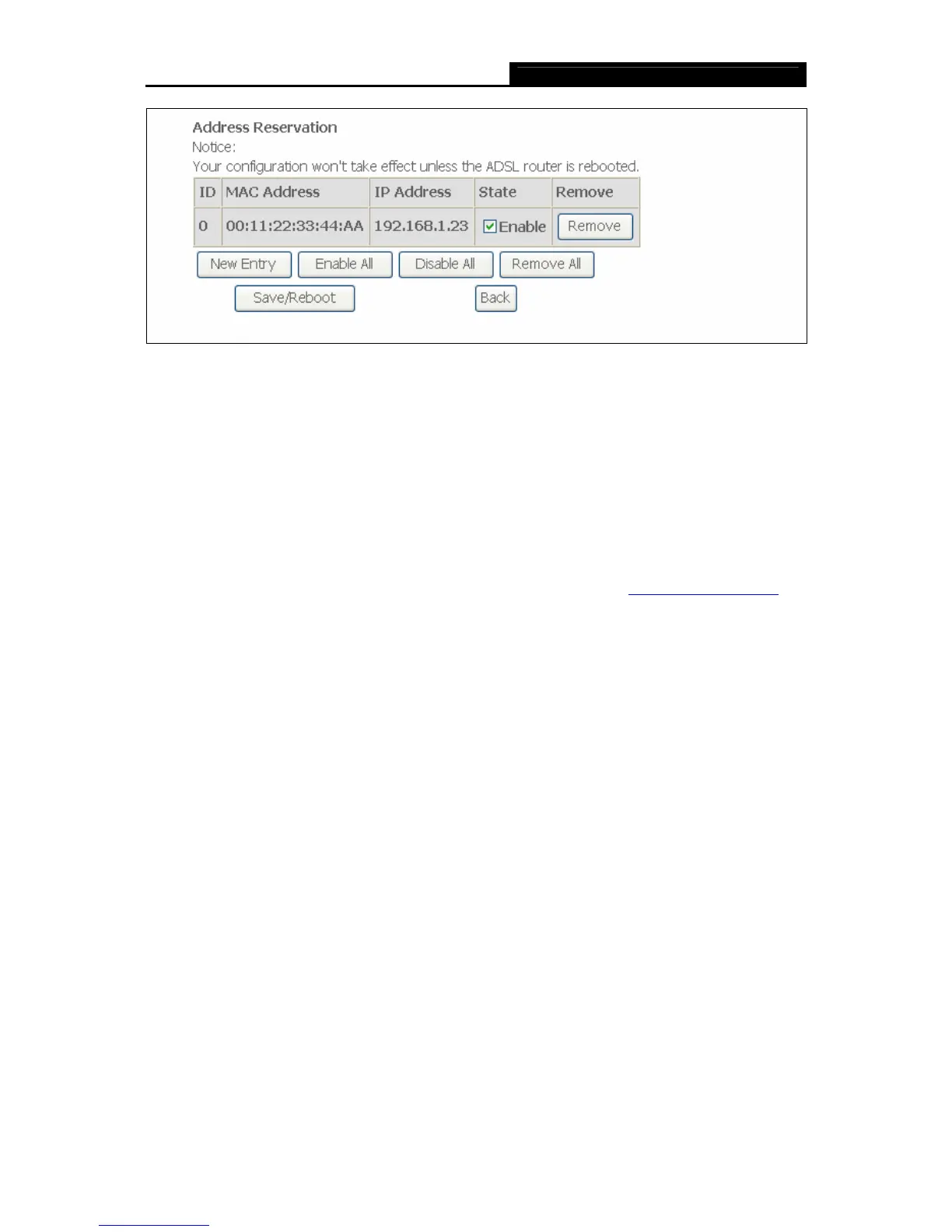

Figure 3-28
7. Click Save/Reboot button to save the settings and reboot the router.
)
Note:
The function won't take effect until the router reboots.
3.6 USB Configuration
If you use the USB interface, firstly, you must install the USB driver to the computer. You can
obtain the drives from the provided CD or download from our website. (http://www.tp-link.com
)
USB Drive installation procedures
If the hardware is installed before the computer is Power On. Please turn on the computer and
enter the operating system, Then the operating system will identify the device. If the hardware is
installed after the computer is Power On, the desktop will display the information about finding
the new hardware.
1) You will see the Figure 3-26 requiring install software for U
SB Device, select “Install from a
list or specific location (Advanced)” and click Next to continue.

TP-Link TD-8811 Specifications

General

Connectivity LEDs	Yes
Dimensions (WxDxH)	165 x 108 x 28 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
Networking standards	IEEE 802.1d
Ethernet LAN data rates	10, 100 Mbit/s
Routing protocols	IP
Supported network protocols	PPPoE, RFC 2364
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5
Ethernet LAN (RJ-45) ports	1
Firewall security	Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall
Security algorithms	802.1x RADIUS
Filtering description	Domain
Product color	Black, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	4.1 W

Weight and Dimensions

Weight	300 g
