TP-Link TD-8811 User Manual

TD-8811 ADSL2+ Modem Router User Guide
50

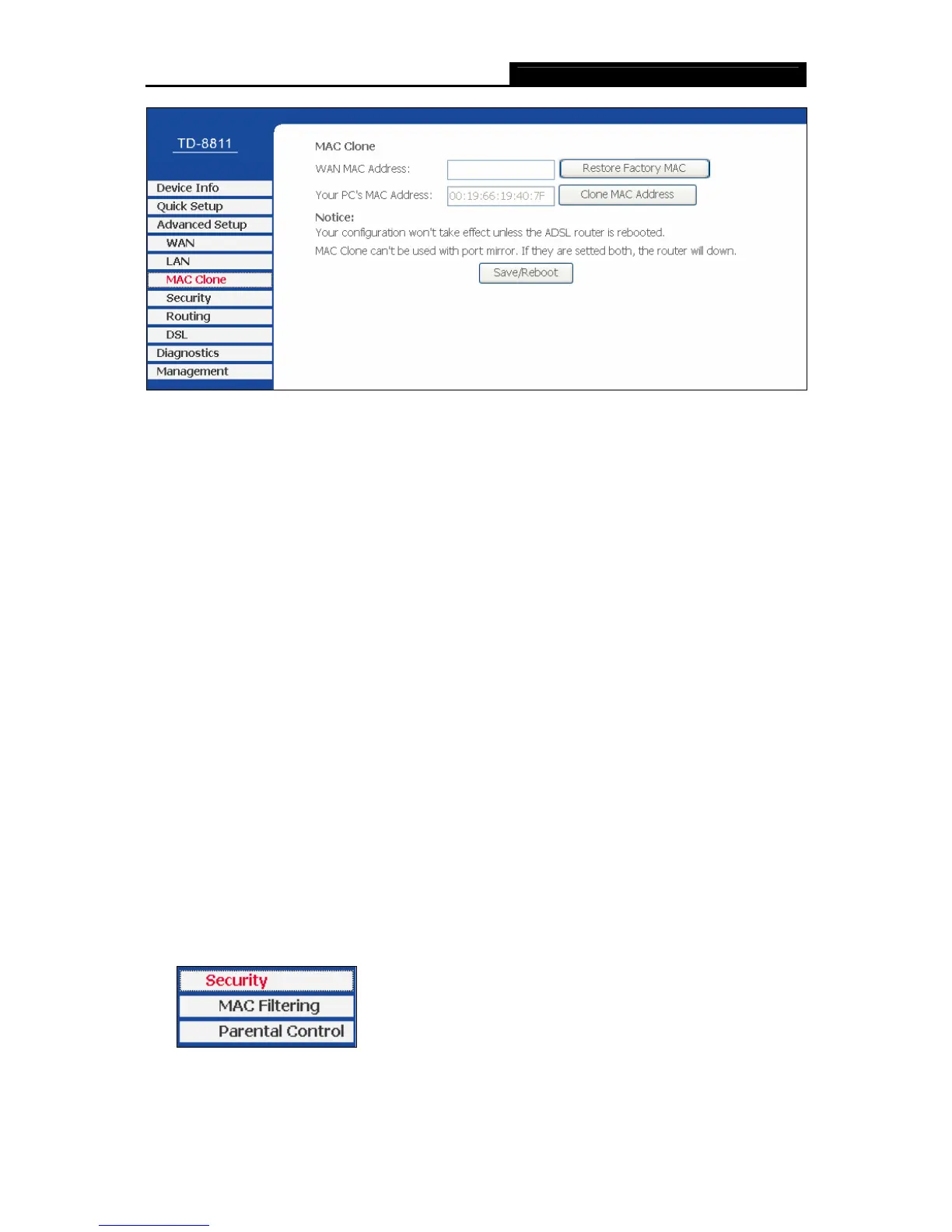

Figure 4-24
Some ISPs require that you register the MAC Address of your adapter. Changes are rarely
needed here.
¾ WAN MAC Address - This field displays the current MAC address of the WAN port. If
your ISP requires you to register the MAC address, please enter the correct MAC address
into this field in XX:XX:XX:XX:XX:XX format (X is any hexadecimal digit).
¾ Your PC's MAC Address - This field displays the MAC address of the PC that is
managing the Router. If the MAC address is required, you can click the Clone MAC
Address button and this MAC address will be filled in the WAN MAC Address field.
Click Restore Factory MAC to restore the MAC address of WAN port to the factory default
value.
Click the Save/Reboot button to save your settings.
)
Note:
1. Only the PC on your LAN can use the MAC Address Clone function.
2. Your configuration won't take effect unless the ADSL Router is rebooted.
3. MAC Clone can't be used with port mirror. If they are set both, the Router will be down.
4.3.4 Security
Choose “Advanced Setup→Security” menu, you can do some security configurations for your
Router. There are two submenus under the Security menu as shown in Figure 4-25.
Figure 4-25

TP-Link TD-8811 Specifications

General

Connectivity LEDs	Yes
Dimensions (WxDxH)	165 x 108 x 28 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
Networking standards	IEEE 802.1d
Ethernet LAN data rates	10, 100 Mbit/s
Routing protocols	IP
Supported network protocols	PPPoE, RFC 2364
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5
Ethernet LAN (RJ-45) ports	1
Firewall security	Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall
Security algorithms	802.1x RADIUS
Filtering description	Domain
Product color	Black, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	4.1 W

Weight and Dimensions

Weight	300 g
