TD-8811 ADSL2+ Modem Router User Guide
14

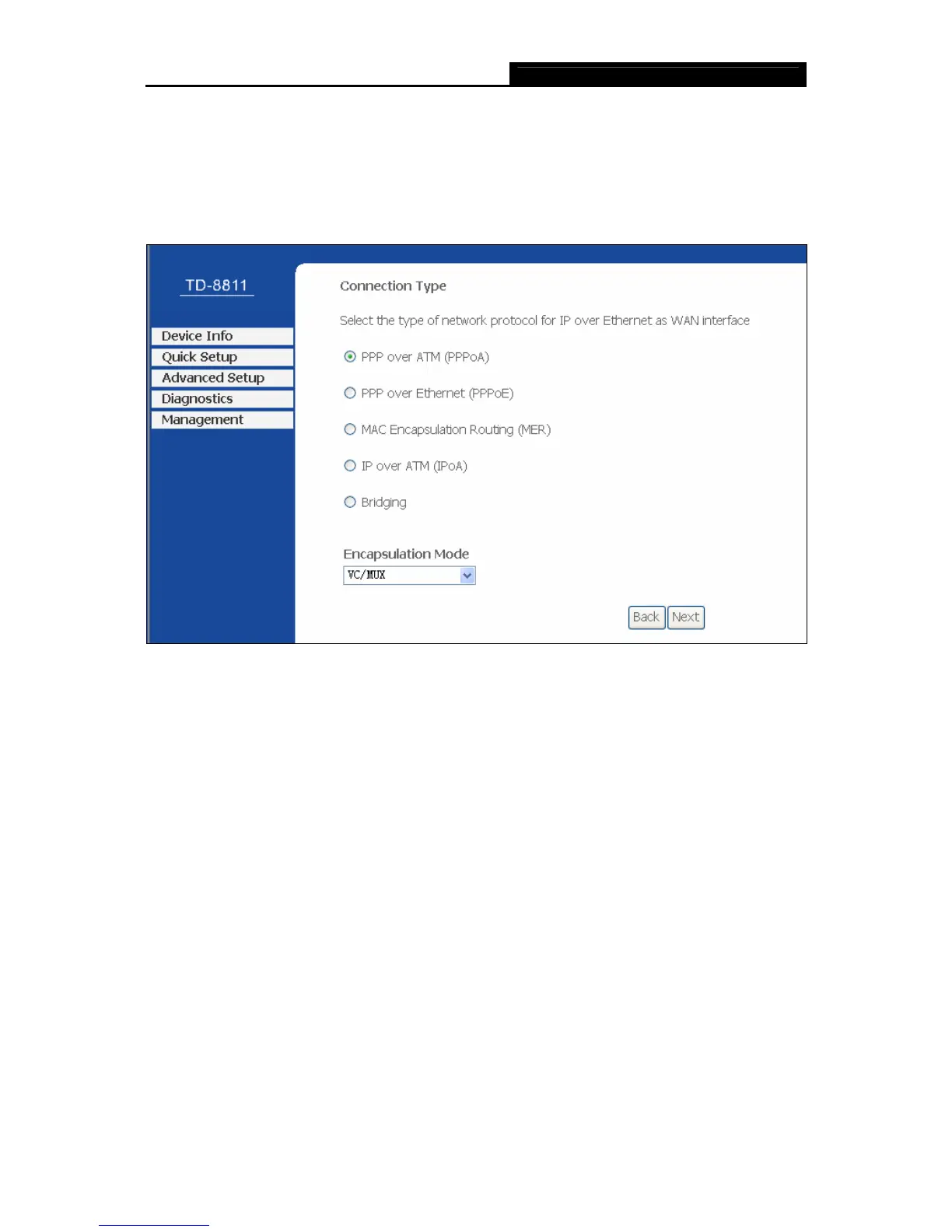

Select the relevant Connection Type and Encapsulation mode as the settings provided by your
Internet Service Provider and click Next.
3.3.1 PPPoA
a) Select PPP over ATM (PPPoA) Connection Type, and click Next.
Figure 3-11
b) Enter the Username and Password provided by your Internet Service Provider and click
Next.

TP-Link TD-8811 Specifications

General

Connectivity LEDs	Yes
Dimensions (WxDxH)	165 x 108 x 28 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
Networking standards	IEEE 802.1d
Ethernet LAN data rates	10, 100 Mbit/s
Routing protocols	IP
Supported network protocols	PPPoE, RFC 2364
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5
Ethernet LAN (RJ-45) ports	1
Firewall security	Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall
Security algorithms	802.1x RADIUS
Filtering description	Domain
Product color	Black, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	4.1 W

Weight and Dimensions

Weight	300 g
