TD-8811 ADSL2+ Modem Router User Guide
28
3.5 DHCP IP Reservation
When you specify a reserved IP address for a PC on the LAN, that PC will always receive the
same IP address each time when it accesses the DHCP server. Reserved IP addresses should
be assigned to servers that require permanent IP settings.
To setup an Address Reservation entry:
)
Note:
1. DHCP IP Reservation is not available for the connection type of Bridge here, they won’t
display on the screen below since only Bridge is selected.
2. DHCP IP Reservation is not available for the connection type of PPPoE with PPP IP
Extension function selected, and they won’t display on the screen below since PPP IP
Extension is selected.

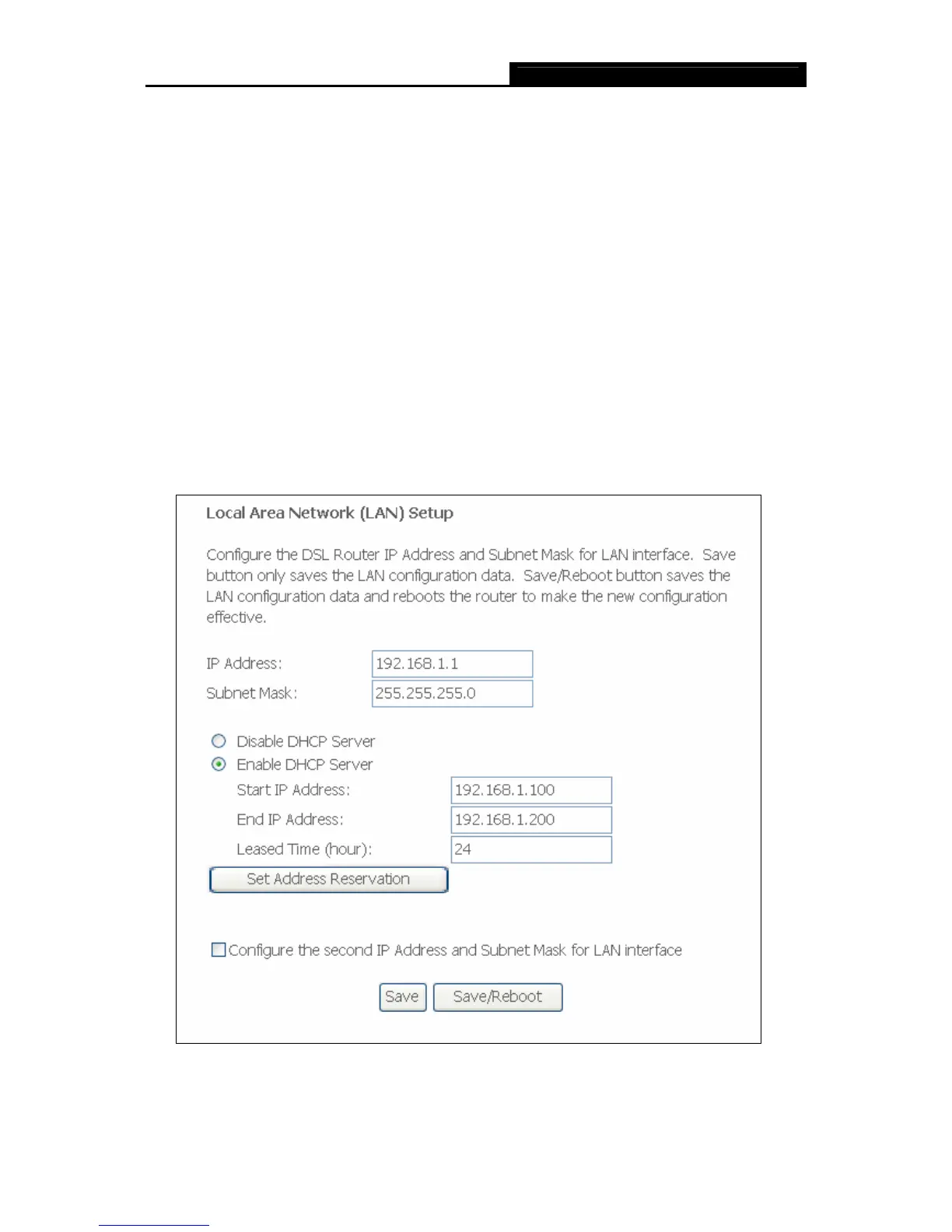

Choose “Advanced Setup”→“LAN”, and you will see the LAN screen, the section allows you to
configure the Router’s LAN ports settings, and you can configure the DHCP IP Reservation
function in this screen.
Figure 3-25
1. Click the Set Address Reservation button, and the Address Reservation screen pop up,

TP-Link TD-8811 Specifications

General

Connectivity LEDs	Yes
Dimensions (WxDxH)	165 x 108 x 28 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
Networking standards	IEEE 802.1d
Ethernet LAN data rates	10, 100 Mbit/s
Routing protocols	IP
Supported network protocols	PPPoE, RFC 2364
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5
Ethernet LAN (RJ-45) ports	1
Firewall security	Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall
Security algorithms	802.1x RADIUS
Filtering description	Domain
Product color	Black, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	4.1 W

Weight and Dimensions

Weight	300 g
