TD-8811 ADSL2+ Modem Router User Guide
66
4.5.5 Update Firmware
Choose “Management→Update Firmware” menu, and you can update the latest version of
firmware for the Router in the screen as shown in Figure 4-53. Make sure the firmware or
romfile you want to use is on the local hard drive of the computer. Click Browse… to find the
local hard drive and locate the firmware or romfile to be used for upgrade.

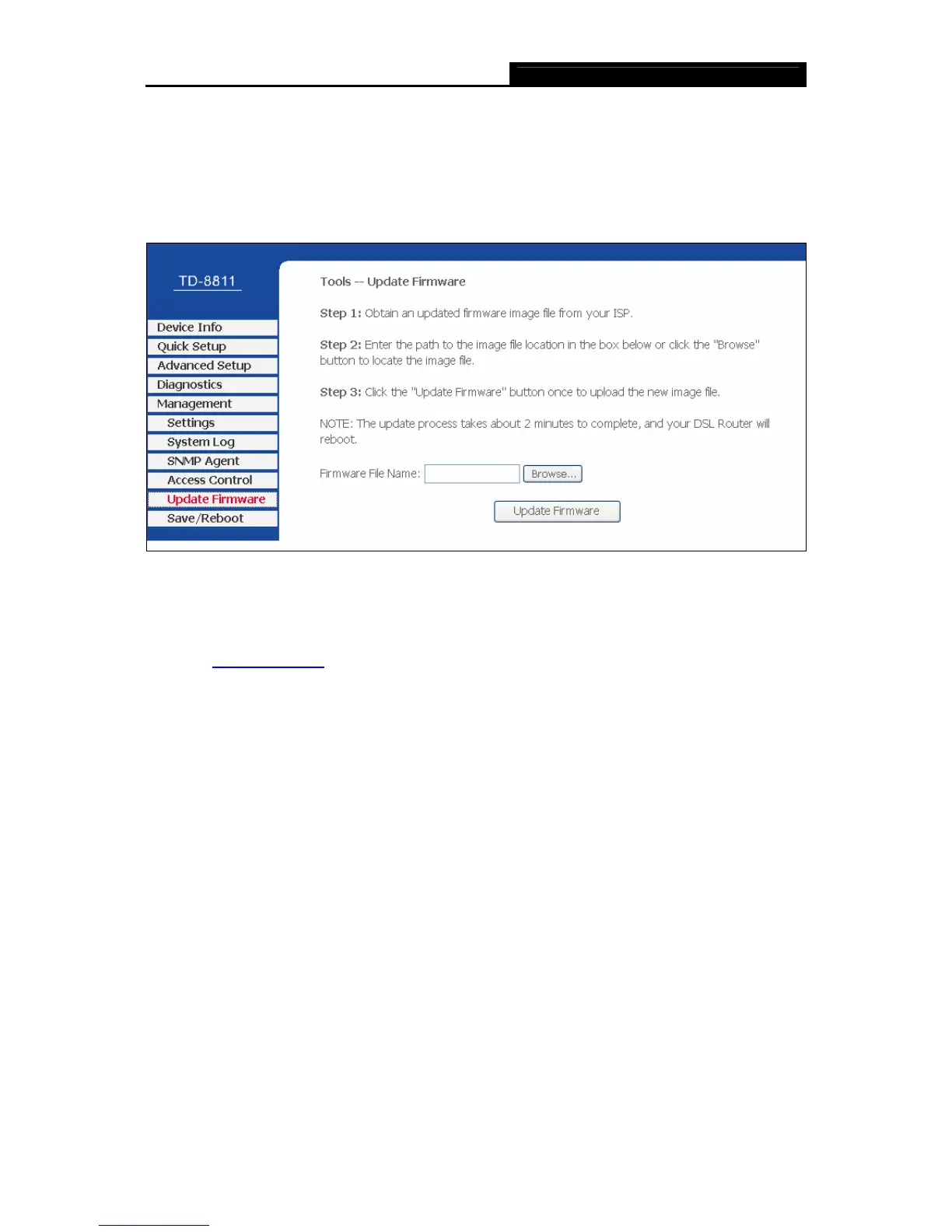

Figure 4-53
To upgrade the router's firmware, follow these instructions below.
1 Download a more recent firmware upgrade file from the TP-LINK website
(www.tp-link.com
).
2 Type the path and file name of the update file into the “Firmware File Name” field. Or click
the Browse… button to locate the update file.
3 Click the Update Firmware button.
4.5.6 Save/Reboot
Choose “Management→Save/Reboot” menu, and you can save your configurations and
reboot your Router to make the configurations take effect in the screen as shown in Figure
4-54.

TP-Link TD-8811 Specifications

General

Connectivity LEDs	Yes
Dimensions (WxDxH)	165 x 108 x 28 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
Networking standards	IEEE 802.1d
Ethernet LAN data rates	10, 100 Mbit/s
Routing protocols	IP
Supported network protocols	PPPoE, RFC 2364
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5
Ethernet LAN (RJ-45) ports	1
Firewall security	Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall
Security algorithms	802.1x RADIUS
Filtering description	Domain
Product color	Black, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	4.1 W

Weight and Dimensions

Weight	300 g
